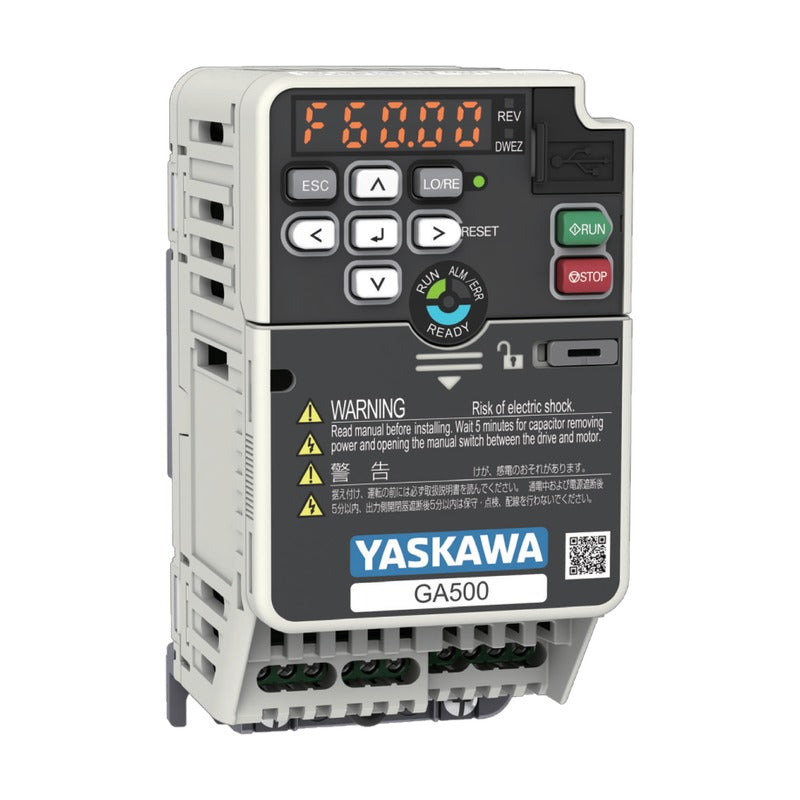

YASKAWA GA500 AC Drives 200 V Class Single-Phase (0.1-3.7 kW)

YASKAWA GA500 AC Drives 200 V Class Single-Phase (0.1-3.7 kW)

GA500 compact AC drives for single-phase 200 V supplies with three-phase output, for 0.1 to 3.7 kW motors.

Key features

  • Model key CIPR-GA50T + voltage + current + EMC filter (A/E) + enclosure (B/F) + A (standard) + A - CAAASA
  • Environmental versions K/M/N/P/R/S/T (gas, humidity/dust, oil, vibration) available on request
  • Factory-fitted keypad options: LCD, Bluetooth LCD, LED (also humidity/dust-resistant) or blank cover; standard = half-size LED keypad
  • Heavy Duty 150% / 60 s and Normal Duty 110% / 60 s ratings selected by parameter C6-01
  • V/f, open-loop vector, PM open-loop vector, PM advanced open-loop vector and EZ vector control; up to 590 Hz
  • Single-phase input, three-phase 200-240 V output; single-phase motors cannot be used

Specifications

Brand YASKAWA
Series GA500
Region code T (Asia)
Power supply 1-phase 200-240 V 50/60 Hz; DC 270-340 V
Capacity range HD 0.1-3.7 kW / ND 0.2-3 kW
Max. output frequency 590 Hz
Braking transistor Built-in
Overload HD 150% 60 s / ND 110% 60 s
Ambient temperature -10 to +50 C (IP20/UL Open)
Standards UL61800-5-1, EN61800-3, IEC/EN61800-5-1
Source YASKAWA GA500 Catalog (Korean ed.), p. 22-23, 28-31, 38-43
GA50TB001 Base model (specify enclosure) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001ABAA-CAAASA Catalog code: GA50TB001ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001AFAA-CAAASA Catalog code: GA50TB001AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001EBAA-CAAASA Catalog code: GA50TB001EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001EFAA-CAAASA Catalog code: GA50TB001EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
GA50TB002 Base model (specify enclosure) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002ABAA-CAAASA Catalog code: GA50TB002ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002AFAA-CAAASA Catalog code: GA50TB002AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002EBAA-CAAASA Catalog code: GA50TB002EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002EFAA-CAAASA Catalog code: GA50TB002EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
GA50TB004 Base model (specify enclosure) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004ABAA-CAAASA Catalog code: GA50TB004ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004AFAA-CAAASA Catalog code: GA50TB004AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004EBAA-CAAASA Catalog code: GA50TB004EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004EFAA-CAAASA Catalog code: GA50TB004EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
GA50TB006 Base model (specify enclosure) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006ABAA-CAAASA Catalog code: GA50TB006ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006AFAA-CAAASA Catalog code: GA50TB006AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006EBAA-CAAASA Catalog code: GA50TB006EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006EFAA-CAAASA Catalog code: GA50TB006EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
GA50TB010 Base model (specify enclosure) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010ABAA-CAAASA Catalog code: GA50TB010ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010AFAA-CAAASA Catalog code: GA50TB010AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010EBAA-CAAASA Catalog code: GA50TB010EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010EFAA-CAAASA Catalog code: GA50TB010EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
GA50TB012 Base model (specify enclosure) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012ABAA-CAAASA Catalog code: GA50TB012ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012AFAA-CAAASA Catalog code: GA50TB012AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012EBAA-CAAASA Catalog code: GA50TB012EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012EFAA-CAAASA Catalog code: GA50TB012EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
GA50TB018 Base model (specify enclosure) | ND: Not printed | HD: 3.7 kW / 17.6 A
CIPR-GA50TB018ABAA-CAAASA Catalog code: GA50TB018ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: Not printed | HD: 3.7 kW / 17.6 A
CIPR-GA50TB018AFAA-CAAASA Catalog code: GA50TB018AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: Not printed | HD: 3.7 kW / 17.6 A
AC DrivesYASKAWA
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA500 AC Drives 200 V Class Single-Phase (0.1-3.7 kW)

Brand YASKAWA·AC Drives

Available part numbers (33)

GA50TB001, CIPR-GA50TB001ABAA-CAAASA, CIPR-GA50TB001AFAA-CAAASA, CIPR-GA50TB001EBAA-CAAASA, CIPR-GA50TB001EFAA-CAAASA, GA50TB002, CIPR-GA50TB002ABAA-CAAASA, CIPR-GA50TB002AFAA-CAAASA, CIPR-GA50TB002EBAA-CAAASA, CIPR-GA50TB002EFAA-CAAASA + 23 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GA50TB001Base model (specify enclosure) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001ABAA-CAAASACatalog code: GA50TB001ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001AFAA-CAAASACatalog code: GA50TB001AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001EBAA-CAAASACatalog code: GA50TB001EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIPR-GA50TB001EFAA-CAAASACatalog code: GA50TB001EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
GA50TB002Base model (specify enclosure) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002ABAA-CAAASACatalog code: GA50TB002ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002AFAA-CAAASACatalog code: GA50TB002AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002EBAA-CAAASACatalog code: GA50TB002EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIPR-GA50TB002EFAA-CAAASACatalog code: GA50TB002EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
GA50TB004Base model (specify enclosure) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004ABAA-CAAASACatalog code: GA50TB004ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004AFAA-CAAASACatalog code: GA50TB004AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004EBAA-CAAASACatalog code: GA50TB004EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIPR-GA50TB004EFAA-CAAASACatalog code: GA50TB004EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
GA50TB006Base model (specify enclosure) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006ABAA-CAAASACatalog code: GA50TB006ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006AFAA-CAAASACatalog code: GA50TB006AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006EBAA-CAAASACatalog code: GA50TB006EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIPR-GA50TB006EFAA-CAAASACatalog code: GA50TB006EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
GA50TB010Base model (specify enclosure) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010ABAA-CAAASACatalog code: GA50TB010ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010AFAA-CAAASACatalog code: GA50TB010AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010EBAA-CAAASACatalog code: GA50TB010EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIPR-GA50TB010EFAA-CAAASACatalog code: GA50TB010EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
GA50TB012Base model (specify enclosure) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012ABAA-CAAASACatalog code: GA50TB012ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012AFAA-CAAASACatalog code: GA50TB012AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012EBAA-CAAASACatalog code: GA50TB012EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
CIPR-GA50TB012EFAA-CAAASACatalog code: GA50TB012EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A
GA50TB018Base model (specify enclosure) | ND: Not printed | HD: 3.7 kW / 17.6 A
CIPR-GA50TB018ABAA-CAAASACatalog code: GA50TB018ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: Not printed | HD: 3.7 kW / 17.6 A
CIPR-GA50TB018AFAA-CAAASACatalog code: GA50TB018AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: Not printed | HD: 3.7 kW / 17.6 A
