• YASKAWA GA500 AC Drives 400 V Class 3-Phase (0.2-30 kW)
1 1

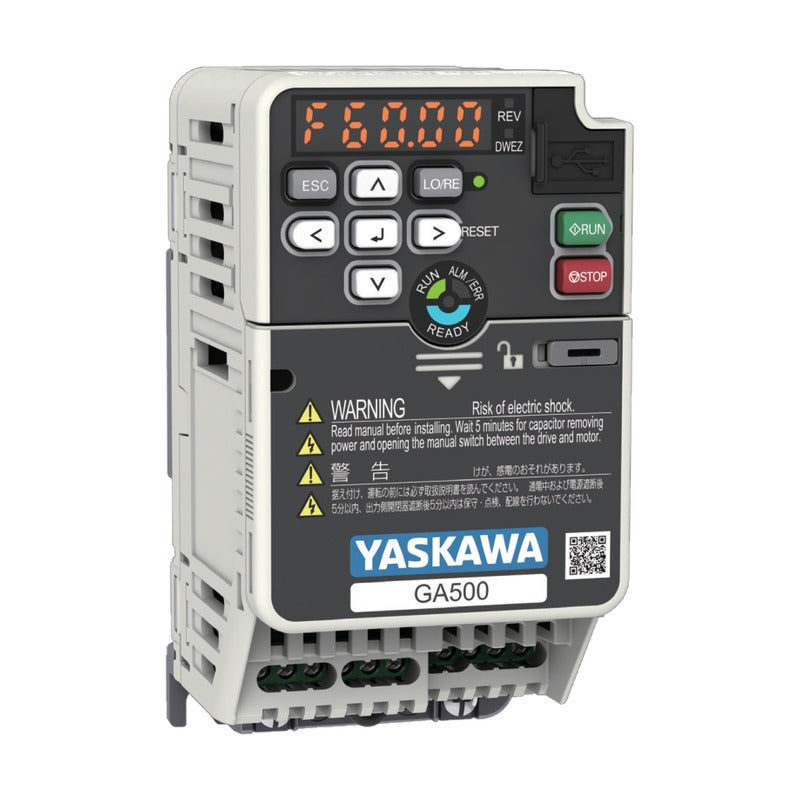

YASKAWA GA500 AC Drives 400 V Class 3-Phase (0.2-30 kW)

YASKAWA GA500 AC Drives 400 V Class 3-Phase (0.2-30 kW)

GA500 compact high-performance AC drives for three-phase 400 V supplies, covering 0.2 to 30 kW motors in a world-class small footprint.

Key features

  • Model key CIPR-GA50T + voltage + current + EMC filter (A/E) + enclosure (B/F) + A (standard) + A - CAAASA
  • Environmental versions K/M/N/P/R/S/T (gas, humidity/dust, oil, vibration) available on request
  • Factory-fitted keypad options: LCD, Bluetooth LCD, LED (also humidity/dust-resistant) or blank cover; standard = half-size LED keypad
  • Heavy Duty 150% / 60 s and Normal Duty 110% / 60 s ratings selected by parameter C6-01
  • V/f, open-loop vector, PM open-loop vector, PM advanced open-loop vector and EZ vector control; up to 590 Hz
  • Built-in braking transistor; Safe Torque Off (SIL3, PLe); size-compatible with V1000

Specifications

Brand YASKAWA
Series GA500
Region code T (Asia)
Power supply 3-phase 380-480 V 50/60 Hz; DC 513-679 V
Capacity range HD 0.2-22 kW / ND 0.4-30 kW
Max. output frequency 590 Hz
Braking transistor Built-in
Overload HD 150% 60 s / ND 110% 60 s
Ambient temperature -10 to +50 C (IP20/UL Open)
Standards UL61800-5-1, EN61800-3, IEC/EN61800-5-1
Source YASKAWA GA500 Catalog (Korean ed.), p. 22-23, 29-31, 38-43
GA50T4001 Base model (specify enclosure) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001ABAA-CAAASA Catalog code: GA50T4001ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001AFAA-CAAASA Catalog code: GA50T4001AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001EBAA-CAAASA Catalog code: GA50T4001EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001EFAA-CAAASA Catalog code: GA50T4001EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
GA50T4002 Base model (specify enclosure) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002ABAA-CAAASA Catalog code: GA50T4002ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002AFAA-CAAASA Catalog code: GA50T4002AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002EBAA-CAAASA Catalog code: GA50T4002EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002EFAA-CAAASA Catalog code: GA50T4002EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
GA50T4004 Base model (specify enclosure) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004ABAA-CAAASA Catalog code: GA50T4004ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004AFAA-CAAASA Catalog code: GA50T4004AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004EBAA-CAAASA Catalog code: GA50T4004EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004EFAA-CAAASA Catalog code: GA50T4004EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
GA50T4005 Base model (specify enclosure) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005ABAA-CAAASA Catalog code: GA50T4005ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005AFAA-CAAASA Catalog code: GA50T4005AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005EBAA-CAAASA Catalog code: GA50T4005EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005EFAA-CAAASA Catalog code: GA50T4005EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
GA50T4007 Base model (specify enclosure) | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007ABAA-CAAASA Catalog code: GA50T4007ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007AFAA-CAAASA Catalog code: GA50T4007AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007EBAA-CAAASA Catalog code: GA50T4007EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007EFAA-CAAASA Catalog code: GA50T4007EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
GA50T4009 Base model (specify enclosure) | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009ABAA-CAAASA Catalog code: GA50T4009ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009AFAA-CAAASA Catalog code: GA50T4009AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009EBAA-CAAASA Catalog code: GA50T4009EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009EFAA-CAAASA Catalog code: GA50T4009EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
GA50T4012 Base model (specify enclosure) | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012ABAA-CAAASA Catalog code: GA50T4012ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012AFAA-CAAASA Catalog code: GA50T4012AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012EBAA-CAAASA Catalog code: GA50T4012EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012EFAA-CAAASA Catalog code: GA50T4012EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
GA50T4018 Base model (specify enclosure) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018ABAA-CAAASA Catalog code: GA50T4018ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018AFAA-CAAASA Catalog code: GA50T4018AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018EBAA-CAAASA Catalog code: GA50T4018EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018EFAA-CAAASA Catalog code: GA50T4018EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
GA50T4023 Base model (specify enclosure) | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023ABAA-CAAASA Catalog code: GA50T4023ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023AFAA-CAAASA Catalog code: GA50T4023AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023EBAA-CAAASA Catalog code: GA50T4023EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023EFAA-CAAASA Catalog code: GA50T4023EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
GA50T4031 Base model (specify enclosure) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031ABAA-CAAASA Catalog code: GA50T4031ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031AFAA-CAAASA Catalog code: GA50T4031AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031EBAA-CAAASA Catalog code: GA50T4031EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031EFAA-CAAASA Catalog code: GA50T4031EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
GA50T4038 Base model (specify enclosure) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038ABAA-CAAASA Catalog code: GA50T4038ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038AFAA-CAAASA Catalog code: GA50T4038AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038EBAA-CAAASA Catalog code: GA50T4038EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038EFAA-CAAASA Catalog code: GA50T4038EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
GA50T4044 Base model (specify enclosure) | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044ABAA-CAAASA Catalog code: GA50T4044ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044AFAA-CAAASA Catalog code: GA50T4044AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044EBAA-CAAASA Catalog code: GA50T4044EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044EFAA-CAAASA Catalog code: GA50T4044EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
GA50T4060 Base model (specify enclosure) | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060ABAA-CAAASA Catalog code: GA50T4060ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060AFAA-CAAASA Catalog code: GA50T4060AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060EBAA-CAAASA Catalog code: GA50T4060EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060EFAA-CAAASA Catalog code: GA50T4060EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 30 kW / 60 A | HD: 22 kW / 45 A
AC DrivesYASKAWA
65 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA500 AC Drives 400 V Class 3-Phase (0.2-30 kW)

Brand YASKAWA·AC Drives

Available part numbers (65)

GA50T4001, CIPR-GA50T4001ABAA-CAAASA, CIPR-GA50T4001AFAA-CAAASA, CIPR-GA50T4001EBAA-CAAASA, CIPR-GA50T4001EFAA-CAAASA, GA50T4002, CIPR-GA50T4002ABAA-CAAASA, CIPR-GA50T4002AFAA-CAAASA, CIPR-GA50T4002EBAA-CAAASA, CIPR-GA50T4002EFAA-CAAASA + 55 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GA50T4001Base model (specify enclosure) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001ABAA-CAAASACatalog code: GA50T4001ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001AFAA-CAAASACatalog code: GA50T4001AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001EBAA-CAAASACatalog code: GA50T4001EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIPR-GA50T4001EFAA-CAAASACatalog code: GA50T4001EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
GA50T4002Base model (specify enclosure) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002ABAA-CAAASACatalog code: GA50T4002ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002AFAA-CAAASACatalog code: GA50T4002AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002EBAA-CAAASACatalog code: GA50T4002EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIPR-GA50T4002EFAA-CAAASACatalog code: GA50T4002EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
GA50T4004Base model (specify enclosure) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004ABAA-CAAASACatalog code: GA50T4004ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004AFAA-CAAASACatalog code: GA50T4004AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004EBAA-CAAASACatalog code: GA50T4004EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIPR-GA50T4004EFAA-CAAASACatalog code: GA50T4004EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
GA50T4005Base model (specify enclosure) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005ABAA-CAAASACatalog code: GA50T4005ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005AFAA-CAAASACatalog code: GA50T4005AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005EBAA-CAAASACatalog code: GA50T4005EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIPR-GA50T4005EFAA-CAAASACatalog code: GA50T4005EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
GA50T4007Base model (specify enclosure) | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007ABAA-CAAASACatalog code: GA50T4007ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007AFAA-CAAASACatalog code: GA50T4007AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007EBAA-CAAASACatalog code: GA50T4007EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
CIPR-GA50T4007EFAA-CAAASACatalog code: GA50T4007EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.6 A
GA50T4009Base model (specify enclosure) | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009ABAA-CAAASACatalog code: GA50T4009ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009AFAA-CAAASACatalog code: GA50T4009AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009EBAA-CAAASACatalog code: GA50T4009EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
CIPR-GA50T4009EFAA-CAAASACatalog code: GA50T4009EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.3 A
GA50T4012Base model (specify enclosure) | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012ABAA-CAAASACatalog code: GA50T4012ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012AFAA-CAAASACatalog code: GA50T4012AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012EBAA-CAAASACatalog code: GA50T4012EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
CIPR-GA50T4012EFAA-CAAASACatalog code: GA50T4012EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A
GA50T4018Base model (specify enclosure) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018ABAA-CAAASACatalog code: GA50T4018ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018AFAA-CAAASACatalog code: GA50T4018AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018EBAA-CAAASACatalog code: GA50T4018EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIPR-GA50T4018EFAA-CAAASACatalog code: GA50T4018EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
GA50T4023Base model (specify enclosure) | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023ABAA-CAAASACatalog code: GA50T4023ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023AFAA-CAAASACatalog code: GA50T4023AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023EBAA-CAAASACatalog code: GA50T4023EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
CIPR-GA50T4023EFAA-CAAASACatalog code: GA50T4023EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A
GA50T4031Base model (specify enclosure) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031ABAA-CAAASACatalog code: GA50T4031ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031AFAA-CAAASACatalog code: GA50T4031AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031EBAA-CAAASACatalog code: GA50T4031EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIPR-GA50T4031EFAA-CAAASACatalog code: GA50T4031EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
GA50T4038Base model (specify enclosure) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038ABAA-CAAASACatalog code: GA50T4038ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038AFAA-CAAASACatalog code: GA50T4038AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038EBAA-CAAASACatalog code: GA50T4038EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIPR-GA50T4038EFAA-CAAASACatalog code: GA50T4038EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
GA50T4044Base model (specify enclosure) | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044ABAA-CAAASACatalog code: GA50T4044ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044AFAA-CAAASACatalog code: GA50T4044AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044EBAA-CAAASACatalog code: GA50T4044EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
CIPR-GA50T4044EFAA-CAAASACatalog code: GA50T4044EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A
GA50T4060Base model (specify enclosure) | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060ABAA-CAAASACatalog code: GA50T4060ABA | Enclosure: IP20/UL Open | EMC filter: None | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060AFAA-CAAASACatalog code: GA50T4060AFA | Enclosure: IP20/UL Type 1 | EMC filter: None | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060EBAA-CAAASACatalog code: GA50T4060EBA | Enclosure: IP20/UL Open | EMC filter: Built-in (CE) | ND: 30 kW / 60 A | HD: 22 kW / 45 A
CIPR-GA50T4060EFAA-CAAASACatalog code: GA50T4060EFA | Enclosure: IP20/UL Type 1 | EMC filter: Built-in (CE) | ND: 30 kW / 60 A | HD: 22 kW / 45 A
