YASKAWA GA500 DIN Rail Attachments (ZPZ-GA50V, EZZ08122D)

YASKAWA GA500 DIN Rail Attachments (ZPZ-GA50V, EZZ08122D)

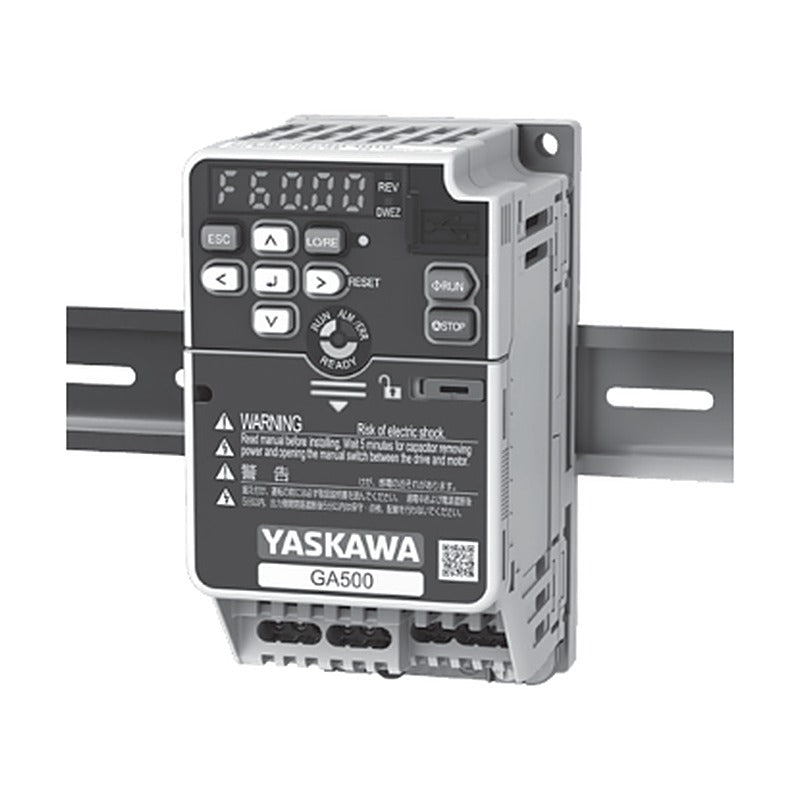

DIN rail attachments that allow one-touch mounting and removal of GA500 drives up to 170 mm wide and 128 mm high.

Key features

  • One-touch mounting and removal on a DIN rail
  • For drives with W 170 mm or less and H 128 mm or less
  • Not applicable to the fin-less type
  • Selected by drive catalog code (GA50T....)

Specifications

Brand YASKAWA
Category DIN rail attachment
Compatible drives GA500
Depth 15.3 mm (ZPZ-GA50V)
Source YASKAWA GA500 Catalog (Korean ed.), p. 48, 65
ZPZ-GA50V1 Code No.: 100-242-246 | Size W x H: 68 x 128 mm | For drives: 2001-2006, B001-B004
ZPZ-GA50V2 Code No.: 100-242-247 | Size W x H: 106 x 128 mm | For drives: 2008-2012, B006, B010, 4001-4009
ZPZ-GA50V3 Code No.: 100-242-248 | Size W x H: 138 x 128 mm | For drives: 2018, 2021, B012, 4012
EZZ08122D Code No.: 100-146-899 | Size W x H: 170 x 133 mm | For drives: B018
Drive AccessoriesYASKAWA
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA500 DIN Rail Attachments (ZPZ-GA50V, EZZ08122D)

Brand YASKAWA·Drive Accessories

Available part numbers (4)

ZPZ-GA50V1, ZPZ-GA50V2, ZPZ-GA50V3, EZZ08122D

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZPZ-GA50V1Code No.: 100-242-246 | Size W x H: 68 x 128 mm | For drives: 2001-2006, B001-B004
ZPZ-GA50V2Code No.: 100-242-247 | Size W x H: 106 x 128 mm | For drives: 2008-2012, B006, B010, 4001-4009
ZPZ-GA50V3Code No.: 100-242-248 | Size W x H: 138 x 128 mm | For drives: 2018, 2021, B012, 4012
EZZ08122DCode No.: 100-146-899 | Size W x H: 170 x 133 mm | For drives: B018
