YASKAWA GA500 LCD Keypads and Blank Cover

YASKAWA GA500 LCD Keypads and Blank Cover

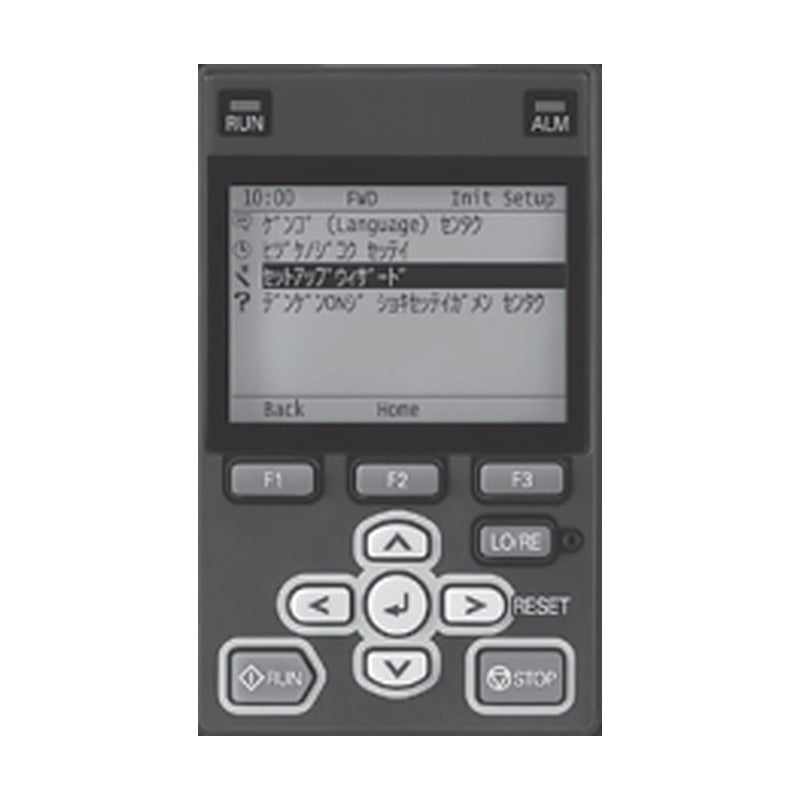

Optional LCD keypads and a blank cover for GA500 drives; the LCD keypad shows plain text and guides initial setup.

Key features

  • LCD keypad shows text and supports dialog-style initial setup
  • Standard and humidity/dust-resistant LCD keypad versions
  • Blank cover replaces the keypad when the half-size LED keypad is removed for remote use
  • Bluetooth LCD and LED keypads JVOP-KPLCC04/KPLEA04 also fit GA500 (listed with GA700 keypads)
  • Remote mounting needs WV001 (1 m) or WV003 (3 m) extension cable

Specifications

Brand YASKAWA
Category Drive keypad
Compatible drives GA500
LCD keypad dimensions 65 x 106 x 16 mm
Connection RJ-45 extension cable
Source YASKAWA GA500 Catalog (Korean ed.), p. 48, 64
JVOP-KPLCA04AEA Code No.: 100-245-993 | Type: LCD keypad | Version: Standard
JVOP-KPLCA04MEA Code No.: 100-245-994 | Type: LCD keypad | Version: Humidity/dust resistant
JVOP-KPBCH04AAA Code No.: 100-247-125 | Type: Blank cover | Version: Standard
Drive OperatorsYASKAWA
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA500 LCD Keypads and Blank Cover

Brand YASKAWA·Drive Operators

Available part numbers (3)

JVOP-KPLCA04AEA, JVOP-KPLCA04MEA, JVOP-KPBCH04AAA

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JVOP-KPLCA04AEACode No.: 100-245-993 | Type: LCD keypad | Version: Standard
JVOP-KPLCA04MEACode No.: 100-245-994 | Type: LCD keypad | Version: Humidity/dust resistant
JVOP-KPBCH04AAACode No.: 100-247-125 | Type: Blank cover | Version: Standard
