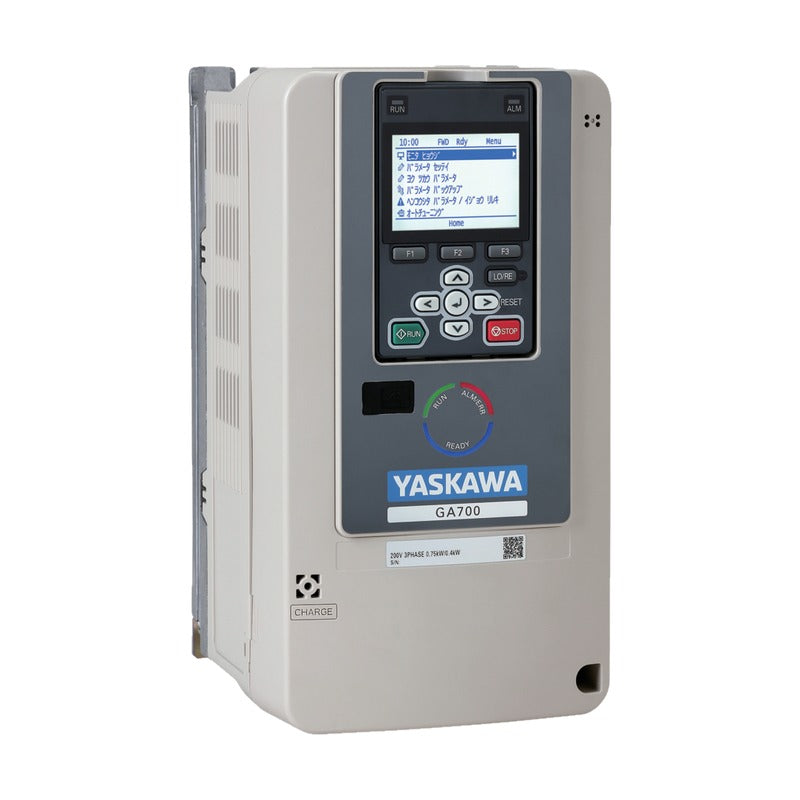

YASKAWA GA700 200 V Class AC Drive (CIPR-GA70x2, 0.4-110 kW)

YASKAWA GA700 200 V Class AC Drive (CIPR-GA70x2, 0.4-110 kW)

The YASKAWA GA700 200 V class is a high-performance current vector control AC drive for three-phase 200-240 Vac motors from 0.4 to 110 kW (HD).

Key features

  • Current vector control for induction, IPM/SPM and synchronous reluctance motors (V/f, OLV, CLV, Advanced OLV, PM OLV/AOLV/CLV, EZ vector)
  • Dual rating by parameter C6-01: Heavy Duty 150% for 60 s (default) or Normal Duty 110% for 60 s
  • Safe Torque Off with 2 safety inputs and EDM output: EN ISO 13849-1 Cat.3 PLe, IEC 62061 SIL CL3
  • Max. output frequency 590 Hz; MEMOBUS/Modbus RTU (RS-485, 115.2 kbps) built in; LCD keypad with USB port
  • Braking transistor built in for all 200 V models; DC reactor built in for 2110 (22 kW HD) and above
  • Codes shown with environmental spec standard letter (A; M for 4810-4H12) and suffix -CAAAAA; K, N, P, R, S, T versions and other keypad/terminal options on request

Specifications

Series GA700 (CIPR-GA70)
Input power 3-phase 200-240 Vac, 50/60 Hz
DC power supply 270-340 Vdc
Max. output voltage 3-phase 200-240 V
Max. output frequency 590 Hz
Overload HD 150% 60 s / ND 110% 60 s
Carrier frequency Up to 15 kHz (10 kHz for 2415)
UL Type 1 Kit option (2004-2360)
Design revision A (printed example)
Source YASKAWA GA700 Catalog (Korean ed.), p. 24-25, 30-33, 44-45
GA70K2004 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2004ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2004BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2004ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2004BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3.2 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
GA70K2006 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2006ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2006BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2006ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2006BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
GA70K2008 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2008ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2008BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2008ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2008BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
GA70K2010 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2010ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2010BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2010ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2010BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
GA70K2012 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2012ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70K2012BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2012ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
CIPR-GA70A2012BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3 kW / 12.2 A | HD: 2.2 kW / 11 A | Size/weight: 140 x 260 x 176 mm, 3.5 kg
GA70K2018 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70K2018ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70K2018BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70A2018ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70A2018BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
GA70K2021 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70K2021ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70K2021BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70A2021ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
CIPR-GA70A2021BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 5.5 kW / 21 A | HD: 3.7 kW / 17.5 A | Size/weight: 140 x 260 x 211 mm, 3.8 kg
GA70K2030 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70K2030ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70K2030BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70A2030ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70A2030BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
GA70K2042 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70K2042ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70K2042BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70A2042ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
CIPR-GA70A2042BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 11 kW / 42 A | HD: 7.5 kW / 33 A | Size/weight: 140 x 260 x 211 mm, 4.2 kg
GA70K2056 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 15 kW / 56 A | HD: 11 kW / 47 A | Size/weight: 180 x 300 x 202 mm, 6 kg
CIPR-GA70K2056ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 15 kW / 56 A | HD: 11 kW / 47 A | Size/weight: 180 x 300 x 202 mm, 6 kg
CIPR-GA70K2056BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 15 kW / 56 A | HD: 11 kW / 47 A | Size/weight: 180 x 300 x 202 mm, 6 kg
CIPR-GA70A2056ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 15 kW / 56 A | HD: 11 kW / 47 A | Size/weight: 180 x 300 x 202 mm, 6 kg
CIPR-GA70A2056BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 15 kW / 56 A | HD: 11 kW / 47 A | Size/weight: 180 x 300 x 202 mm, 6 kg
GA70K2070 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A | Size/weight: 220 x 350 x 227 mm, 8.5 kg
CIPR-GA70K2070ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A | Size/weight: 220 x 350 x 227 mm, 8.5 kg
CIPR-GA70K2070BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A | Size/weight: 220 x 350 x 227 mm, 8.5 kg
CIPR-GA70A2070ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A | Size/weight: 220 x 350 x 227 mm, 8.5 kg
CIPR-GA70A2070BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 18.5 kW / 70 A | HD: 15 kW / 60 A | Size/weight: 220 x 350 x 227 mm, 8.5 kg
GA70K2082 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A | Size/weight: 220 x 350 x 227 mm, 9.5 kg
CIPR-GA70K2082ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A | Size/weight: 220 x 350 x 227 mm, 9.5 kg
CIPR-GA70K2082BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A | Size/weight: 220 x 350 x 227 mm, 9.5 kg
CIPR-GA70A2082ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A | Size/weight: 220 x 350 x 227 mm, 9.5 kg
CIPR-GA70A2082BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 22 kW / 82 A | HD: 18.5 kW / 75 A | Size/weight: 220 x 350 x 227 mm, 9.5 kg
GA70K2110 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 30 kW / 110 A | HD: 22 kW / 88 A | Size/weight: 240 x 400 x 280 mm, 18 kg
CIPR-GA70K2110ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 30 kW / 110 A | HD: 22 kW / 88 A | Size/weight: 240 x 400 x 280 mm, 18 kg
CIPR-GA70K2110BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 30 kW / 110 A | HD: 22 kW / 88 A | Size/weight: 240 x 400 x 280 mm, 19 kg
CIPR-GA70A2110ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 30 kW / 110 A | HD: 22 kW / 88 A | Size/weight: 240 x 400 x 280 mm, 18 kg
CIPR-GA70A2110BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 30 kW / 110 A | HD: 22 kW / 88 A | Size/weight: 240 x 400 x 280 mm, 19 kg
GA70K2138 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 255 x 450 x 280 mm, 21 kg
CIPR-GA70K2138ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 255 x 450 x 280 mm, 21 kg
CIPR-GA70K2138BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 255 x 450 x 280 mm, 22 kg
CIPR-GA70A2138ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 255 x 450 x 280 mm, 21 kg
CIPR-GA70A2138BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 37 kW / 138 A | HD: 30 kW / 115 A | Size/weight: 255 x 450 x 280 mm, 22 kg
GA70K2169 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 264 x 543 x 335 mm, 34 kg
CIPR-GA70K2169ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 264 x 543 x 335 mm, 34 kg
CIPR-GA70K2169BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 264 x 543 x 335 mm, 35 kg
CIPR-GA70A2169ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 264 x 543 x 335 mm, 34 kg
CIPR-GA70A2169BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 45 kW / 169 A | HD: 37 kW / 145 A | Size/weight: 264 x 543 x 335 mm, 35 kg
GA70K2211 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 264 x 543 x 335 mm, 35 kg
CIPR-GA70K2211ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 264 x 543 x 335 mm, 35 kg
CIPR-GA70K2211BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70A2211ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 264 x 543 x 335 mm, 35 kg
CIPR-GA70A2211BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 55 kW / 211 A | HD: 45 kW / 180 A | Size/weight: 264 x 543 x 335 mm, 36 kg
GA70K2257 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 75 kW / 257 A | HD: 55 kW / 215 A | Size/weight: 312 x 700 x 420 mm, 58 kg
CIPR-GA70K2257ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 75 kW / 257 A | HD: 55 kW / 215 A | Size/weight: 312 x 700 x 420 mm, 58 kg
CIPR-GA70K2257BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 75 kW / 257 A | HD: 55 kW / 215 A | Size/weight: 312 x 700 x 420 mm, 59 kg
CIPR-GA70A2257ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 75 kW / 257 A | HD: 55 kW / 215 A | Size/weight: 312 x 700 x 420 mm, 58 kg
CIPR-GA70A2257BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 75 kW / 257 A | HD: 55 kW / 215 A | Size/weight: 312 x 700 x 420 mm, 59 kg
GA70K2313 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 90 kW / 313 A | HD: 75 kW / 283 A | Size/weight: 312 x 700 x 420 mm, 61 kg
CIPR-GA70K2313ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 90 kW / 313 A | HD: 75 kW / 283 A | Size/weight: 312 x 700 x 420 mm, 61 kg
CIPR-GA70K2313BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 90 kW / 313 A | HD: 75 kW / 283 A | Size/weight: 312 x 700 x 420 mm, 61 kg
CIPR-GA70A2313ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 90 kW / 313 A | HD: 75 kW / 283 A | Size/weight: 312 x 700 x 420 mm, 61 kg
CIPR-GA70A2313BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 90 kW / 313 A | HD: 75 kW / 283 A | Size/weight: 312 x 700 x 420 mm, 61 kg
GA70K2360 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 440 x 800 x 472 mm, 100 kg
CIPR-GA70K2360ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 440 x 800 x 472 mm, 100 kg
CIPR-GA70K2360BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70A2360ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 440 x 800 x 472 mm, 100 kg
CIPR-GA70A2360BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 110 kW / 360 A | HD: 90 kW / 346 A | Size/weight: 440 x 800 x 472 mm, 106 kg
GA70K2415 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: not rated | HD: 110 kW / 415 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70K2415ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: not rated | HD: 110 kW / 415 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70K2415BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: not rated | HD: 110 kW / 415 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70A2415ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: not rated | HD: 110 kW / 415 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70A2415BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: not rated | HD: 110 kW / 415 A | Size/weight: 440 x 800 x 472 mm, 112 kg
