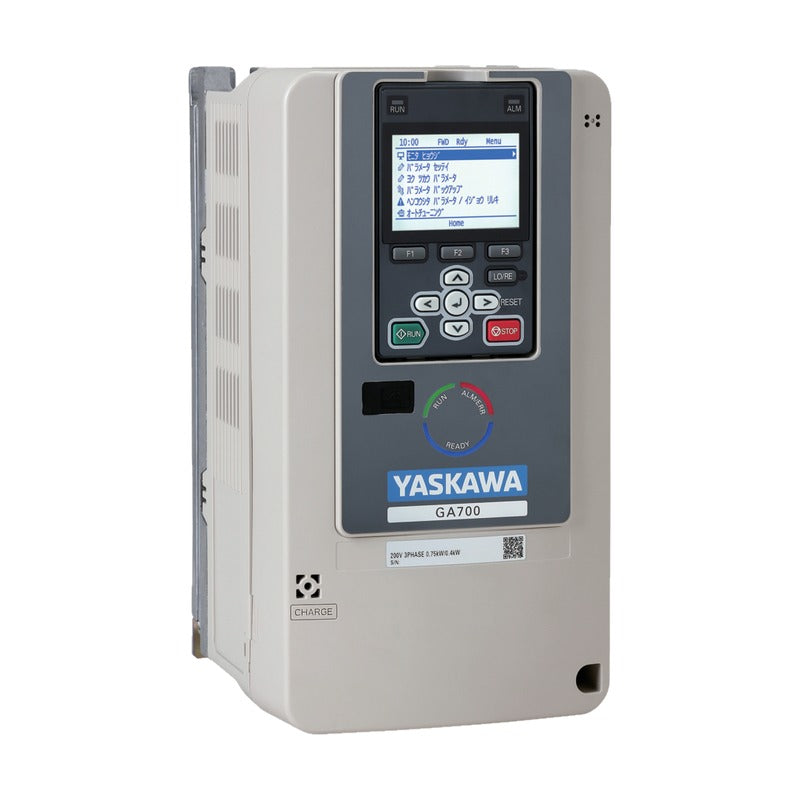

YASKAWA GA700 400 V Class AC Drive (CIPR-GA70x4, 0.4-630 kW)

YASKAWA GA700 400 V Class AC Drive (CIPR-GA70x4, 0.4-630 kW)

The YASKAWA GA700 400 V class is a high-performance current vector control AC drive for three-phase 380-480 Vac motors from 0.4 to 560 kW (HD) / 630 kW (ND).

Key features

  • Current vector control for induction, IPM/SPM and synchronous reluctance motors (V/f, OLV, CLV, Advanced OLV, PM OLV/AOLV/CLV, EZ vector)
  • Dual rating by parameter C6-01: Heavy Duty 150% for 60 s (default) or Normal Duty 110% for 60 s
  • Safe Torque Off with 2 safety inputs and EDM output: EN ISO 13849-1 Cat.3 PLe, IEC 62061 SIL CL3
  • Max. output frequency 590 Hz; MEMOBUS/Modbus RTU (RS-485, 115.2 kbps) built in; LCD keypad with USB port
  • Braking transistor built in for 4002-4168 (up to 75 kW HD); DC reactor built in for 4060 (22 kW HD) and above
  • Codes shown with environmental spec standard letter (A; M for 4810-4H12) and suffix -CAAAAA; K, N, P, R, S, T versions and other keypad/terminal options on request

Specifications

Series GA700 (CIPR-GA70)
Input power 3-phase 380-480 Vac, 50/60 Hz
DC power supply 513-679 Vdc
Max. output voltage 3-phase 380-480 V
Max. output frequency 590 Hz
Overload HD 150% 60 s / ND 110% 60 s
Carrier frequency Up to 15/10/5 kHz by capacity
UL Type 1 Kit option (4002-4389)
Design revision A (printed example)
Source YASKAWA GA700 Catalog (Korean ed.), p. 24-25, 31-33, 44-45
GA70K4002 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4002ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4002BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4002ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4002BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
GA70K4004 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4004ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4004BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4004ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4004BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
GA70K4005 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4005ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4005BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4005ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4005BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
GA70K4007 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4007ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4007BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4007ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4007BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
GA70K4009 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4009ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4009BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4009ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4009BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
GA70K4012 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4012ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4012BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4012ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4012BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
GA70K4018 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4018ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4018BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4018ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4018BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
GA70K4023 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4023ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4023BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4023ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4023BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
GA70K4031 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4031ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4031BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4031ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4031BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
GA70K4038 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4038ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4038BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4038ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4038BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
GA70K4044 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70K4044ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70K4044BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70A4044ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70A4044BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
GA70K4060 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70K4060ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70K4060BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70A4060ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70A4060BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
GA70K4075 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70K4075ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70K4075BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70A4075ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70A4075BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
GA70K4089 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 20 kg
CIPR-GA70K4089ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 20 kg
CIPR-GA70K4089BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 21 kg
CIPR-GA70A4089ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 20 kg
CIPR-GA70A4089BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 21 kg
GA70K4103 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 24 kg
CIPR-GA70K4103ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 24 kg
CIPR-GA70K4103BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 25 kg
CIPR-GA70A4103ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 24 kg
CIPR-GA70A4103BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 25 kg
GA70K4140 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70K4140ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70K4140BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70A4140ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70A4140BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 37 kg
GA70K4168 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70K4168ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70K4168BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 38 kg
CIPR-GA70A4168ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70A4168BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 38 kg
GA70K4208 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 60 kg
CIPR-GA70K4208ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 60 kg
CIPR-GA70K4208BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 61 kg
CIPR-GA70A4208ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 60 kg
CIPR-GA70A4208BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 61 kg
GA70K4250 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 62 kg
CIPR-GA70K4250ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 62 kg
CIPR-GA70K4250BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 63 kg
CIPR-GA70A4250ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 62 kg
CIPR-GA70A4250BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 63 kg
GA70K4296 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 65 kg
CIPR-GA70K4296ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 65 kg
CIPR-GA70K4296BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 66 kg
CIPR-GA70A4296ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 65 kg
CIPR-GA70A4296BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 66 kg
GA70K4371 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70K4371ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70K4371BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 111 kg
CIPR-GA70A4371ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70A4371BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 111 kg
GA70K4389 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70K4389ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70K4389BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 117 kg
CIPR-GA70A4389ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70A4389BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 117 kg
GA70K4453 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4453ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4453BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4453ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4453BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
GA70K4568 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4568ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4568BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4568ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4568BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
GA70K4675 Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70K4675ABAA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70K4675BBAA-CAAAAA Region: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70A4675ABAA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70A4675BBAA-CAAAAA Region: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
GA70K4810 Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 450 kW / 810 A | HD: 400 kW / 720 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70K4810AAMA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 450 kW / 810 A | HD: 400 kW / 720 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70A4810AAMA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 450 kW / 810 A | HD: 400 kW / 720 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
GA70K4930 Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 500 kW / 930 A | HD: 450 kW / 810 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70K4930AAMA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 500 kW / 930 A | HD: 450 kW / 810 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70A4930AAMA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 500 kW / 930 A | HD: 450 kW / 810 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
GA70K4H11 Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 560 kW / 1090 A | HD: 500 kW / 930 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70K4H11AAMA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 560 kW / 1090 A | HD: 500 kW / 930 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70A4H11AAMA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 560 kW / 1090 A | HD: 500 kW / 930 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
GA70K4H12 Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 630 kW / 1200 A | HD: 560 kW / 1090 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70K4H12AAMA-CAAAAA Region: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 630 kW / 1200 A | HD: 560 kW / 1090 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70A4H12AAMA-CAAAAA Region: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 630 kW / 1200 A | HD: 560 kW / 1090 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
AC DrivesYASKAWA
137 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA700 400 V Class AC Drive (CIPR-GA70x4, 0.4-630 kW)

Brand YASKAWA·AC Drives

Available part numbers (137)

GA70K4002, CIPR-GA70K4002ABAA-CAAAAA, CIPR-GA70K4002BBAA-CAAAAA, CIPR-GA70A4002ABAA-CAAAAA, CIPR-GA70A4002BBAA-CAAAAA, GA70K4004, CIPR-GA70K4004ABAA-CAAAAA, CIPR-GA70K4004BBAA-CAAAAA, CIPR-GA70A4004ABAA-CAAAAA, CIPR-GA70A4004BBAA-CAAAAA + 127 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GA70K4002Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4002ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4002BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4002ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4002BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
GA70K4004Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4004ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4004BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4004ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4004BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
GA70K4005Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4005ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70K4005BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4005ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
CIPR-GA70A4005BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A | Size/weight: 140 x 260 x 176 mm, 3.4 kg
GA70K4007Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4007ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4007BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4007ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4007BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3 kW / 7.1 A | HD: 2.2 kW / 5.5 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
GA70K4009Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4009ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4009BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4009ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4009BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 3.7 kW / 8.9 A | HD: 3 kW / 7.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
GA70K4012Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4012ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70K4012BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4012ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
CIPR-GA70A4012BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 5.5 kW / 11.9 A | HD: 3.7 kW / 9.2 A | Size/weight: 140 x 260 x 211 mm, 3.7 kg
GA70K4018Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4018ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4018BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4018ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4018BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A | Size/weight: 140 x 260 x 211 mm, 4 kg
GA70K4023Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4023ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70K4023BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4023ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
CIPR-GA70A4023BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 11 kW / 23.4 A | HD: 7.5 kW / 18 A | Size/weight: 140 x 260 x 211 mm, 4 kg
GA70K4031Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4031ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4031BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4031ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4031BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 15 kW / 31 A | HD: 11 kW / 24 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
GA70K4038Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4038ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70K4038BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4038ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
CIPR-GA70A4038BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A | Size/weight: 180 x 300 x 202 mm, 5.5 kg
GA70K4044Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70K4044ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70K4044BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70A4044ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
CIPR-GA70A4044BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 22 kW / 44 A | HD: 18.5 kW / 39 A | Size/weight: 220 x 350 x 227 mm, 8 kg
GA70K4060Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70K4060ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70K4060BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70A4060ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
CIPR-GA70A4060BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 30 kW / 59.6 A | HD: 22 kW / 45 A | Size/weight: 220 x 350 x 246 mm, 13 kg
GA70K4075Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70K4075ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70K4075BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70A4075ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
CIPR-GA70A4075BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 37 kW / 74.9 A | HD: 30 kW / 60 A | Size/weight: 240 x 400 x 280 mm, 15 kg
GA70K4089Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 20 kg
CIPR-GA70K4089ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 20 kg
CIPR-GA70K4089BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 21 kg
CIPR-GA70A4089ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 20 kg
CIPR-GA70A4089BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 45 kW / 89.2 A | HD: 37 kW / 75 A | Size/weight: 255 x 450 x 280 mm, 21 kg
GA70K4103Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 24 kg
CIPR-GA70K4103ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 24 kg
CIPR-GA70K4103BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 25 kg
CIPR-GA70A4103ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 24 kg
CIPR-GA70A4103BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 55 kW / 103 A | HD: 45 kW / 91 A | Size/weight: 255 x 450 x 280 mm, 25 kg
GA70K4140Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70K4140ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70K4140BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70A4140ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 36 kg
CIPR-GA70A4140BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 75 kW / 140 A | HD: 55 kW / 112 A | Size/weight: 264 x 543 x 335 mm, 37 kg
GA70K4168Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70K4168ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70K4168BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 38 kg
CIPR-GA70A4168ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 37 kg
CIPR-GA70A4168BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 90 kW / 168 A | HD: 75 kW / 150 A | Size/weight: 264 x 543 x 335 mm, 38 kg
GA70K4208Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 60 kg
CIPR-GA70K4208ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 60 kg
CIPR-GA70K4208BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 61 kg
CIPR-GA70A4208ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 60 kg
CIPR-GA70A4208BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 110 kW / 208 A | HD: 90 kW / 180 A | Size/weight: 312 x 700 x 420 mm, 61 kg
GA70K4250Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 62 kg
CIPR-GA70K4250ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 62 kg
CIPR-GA70K4250BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 63 kg
CIPR-GA70A4250ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 62 kg
CIPR-GA70A4250BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 132 kW / 250 A | HD: 110 kW / 216 A | Size/weight: 312 x 700 x 420 mm, 63 kg
GA70K4296Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 65 kg
CIPR-GA70K4296ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 65 kg
CIPR-GA70K4296BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 66 kg
CIPR-GA70A4296ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 65 kg
CIPR-GA70A4296BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 160 kW / 296 A | HD: 132 kW / 260 A | Size/weight: 312 x 700 x 420 mm, 66 kg
GA70K4371Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70K4371ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70K4371BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 111 kg
CIPR-GA70A4371ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 106 kg
CIPR-GA70A4371BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 200 kW / 371 A | HD: 160 kW / 304 A | Size/weight: 440 x 800 x 472 mm, 111 kg
GA70K4389Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70K4389ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70K4389BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 117 kg
CIPR-GA70A4389ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 112 kg
CIPR-GA70A4389BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 220 kW / 389 A | HD: 200 kW / 371 A | Size/weight: 440 x 800 x 472 mm, 117 kg
GA70K4453Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4453ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4453BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4453ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4453BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 250 kW / 453 A | HD: 220 kW / 414 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
GA70K4568Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4568ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70K4568BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4568ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
CIPR-GA70A4568BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 315 kW / 568 A | HD: 250 kW / 453 A | Size/weight: 510 x 1136 x 480 mm, 198 kg
GA70K4675Base model (specify region, EMC filter, enclosure) | Letters: EMC A/B; enclosure B | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70K4675ABAA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70K4675BBAA-CAAAAARegion: K (Korea) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70A4675ABAA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
CIPR-GA70A4675BBAA-CAAAAARegion: A (Japan) | EMC filter: Built-in C3 | Enclosure: IP20/UL Open | ND: 355 kW / 675 A | HD: 315 kW / 605 A | Size/weight: 510 x 1136 x 480 mm, 207 kg
GA70K4810Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 450 kW / 810 A | HD: 400 kW / 720 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70K4810AAMA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 450 kW / 810 A | HD: 400 kW / 720 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70A4810AAMA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 450 kW / 810 A | HD: 400 kW / 720 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
GA70K4930Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 500 kW / 930 A | HD: 450 kW / 810 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70K4930AAMA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 500 kW / 930 A | HD: 450 kW / 810 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
CIPR-GA70A4930AAMA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 500 kW / 930 A | HD: 450 kW / 810 A | Size/weight: 760 x 1367.5 x 440 mm, 363 kg
GA70K4H11Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 560 kW / 1090 A | HD: 500 kW / 930 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70K4H11AAMA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 560 kW / 1090 A | HD: 500 kW / 930 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70A4H11AAMA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 560 kW / 1090 A | HD: 500 kW / 930 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
GA70K4H12Base model (specify region, EMC filter, enclosure) | Letters: EMC A; enclosure A | ND: 630 kW / 1200 A | HD: 560 kW / 1090 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70K4H12AAMA-CAAAAARegion: K (Korea) | EMC filter: None | Enclosure: IP00/UL Open | ND: 630 kW / 1200 A | HD: 560 kW / 1090 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg
CIPR-GA70A4H12AAMA-CAAAAARegion: A (Japan) | EMC filter: None | Enclosure: IP00/UL Open | ND: 630 kW / 1200 A | HD: 560 kW / 1090 A | Size/weight: 760 x 1367.5 x 440 mm, 368 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
