YASKAWA GA700 Bluetooth LCD Keypads (JVOP-KPLCC04, 3 versions)

YASKAWA GA700 Bluetooth LCD Keypads (JVOP-KPLCC04, 3 versions)

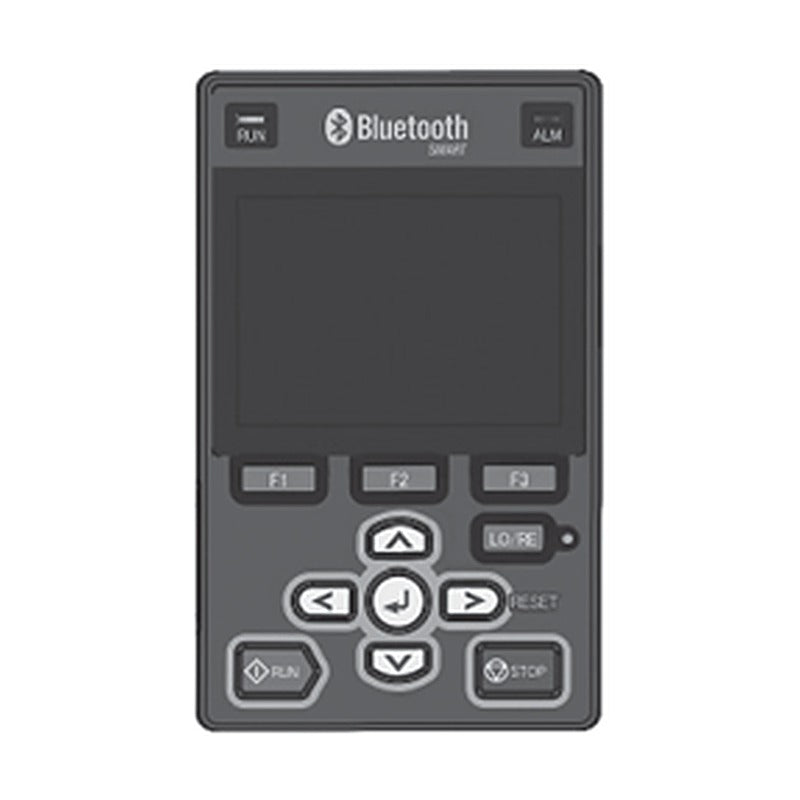

LCD keypad with built-in Bluetooth interface that links the GA700 drive to DriveWizard Mobile on a smartphone.

Key features

  • Built-in Bluetooth for wireless access with DriveWizard Mobile
  • Usable with drive software version 1016 or later
  • Certified CE, FCC, IC, CMIIT, KC and MIC (radio laws vary by country)
  • MBB version adds a clock-function battery (CR2016 recommended)
  • Panel mounting with mounting set 900-192-933-001 / -002
  • Second-to-last model character 'B' is the design revision

Specifications

Brand YASKAWA
Category Bluetooth LCD keypad
Display LCD
Wireless Bluetooth (DriveWizard Mobile)
Dimensions (W x H x D) 65 x 106 x 16 mm
Compatible drives GA700 (software 1016 or later)
Source YASKAWA GA700 Catalog (Korean ed.), p. 52, 72
JVOP-KPLCC04ABA Version: Standard | Clock battery: No | Order No.: 100-225-008
JVOP-KPLCC04MBA Version: Moisture/dust resistant | Clock battery: No | Order No.: 100-225-009
JVOP-KPLCC04MBB Version: Moisture/dust resistant | Clock battery: Yes | Order No.: 100-249-032
Drive OperatorsYASKAWA
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA700 Bluetooth LCD Keypads (JVOP-KPLCC04, 3 versions)

Brand YASKAWA·Drive Operators

Available part numbers (3)

JVOP-KPLCC04ABA, JVOP-KPLCC04MBA, JVOP-KPLCC04MBB

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JVOP-KPLCC04ABAVersion: Standard | Clock battery: No | Order No.: 100-225-008
JVOP-KPLCC04MBAVersion: Moisture/dust resistant | Clock battery: No | Order No.: 100-225-009
JVOP-KPLCC04MBBVersion: Moisture/dust resistant | Clock battery: Yes | Order No.: 100-249-032
