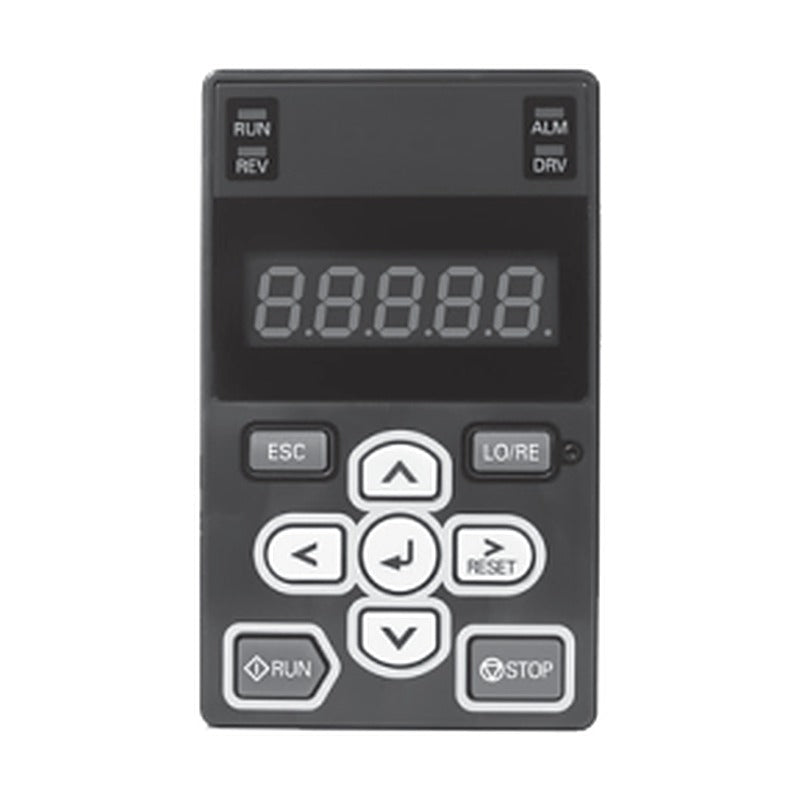

YASKAWA GA700 LED Keypads (JVOP-KPLEA04, Standard / Enhanced)

5-digit LED keypad for the GA700 drive, usable on the drive or remotely, with a built-in parameter copy function.

Key features

5-digit LED display for simple operation
Built-in parameter copy function
Remote operation with WV001 (1 m) / WV003 (3 m) extension cables
Panel mounting with mounting set 900-192-933-001 (screw) or -002 (nut)
Drives can be shipped with the LED keypad fitted as standard (on request)
Second-to-last model character 'A' is the design revision

Specifications

Brand	YASKAWA
Category	LED keypad
Display	5-digit LED
Dimensions (W x H x D)	65 x 106 x 16 mm
Compatible drives	GA700
Remote cable	WV001 / WV003 (RJ-45, straight)
Source	YASKAWA GA700 Catalog (Korean ed.), p. 52, 72

JVOP-KPLEA04AAA		Version: Standard \| Order No.: 100-219-384
JVOP-KPLEA04MAA		Version: Moisture/dust resistant \| Order No.: 100-206-378

Drive OperatorsYASKAWA

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA GA700 LED Keypads (JVOP-KPLEA04, Standard / Enhanced)

Brand YASKAWA·Drive Operators

Available part numbers (2)

JVOP-KPLEA04AAA, JVOP-KPLEA04MAA

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
