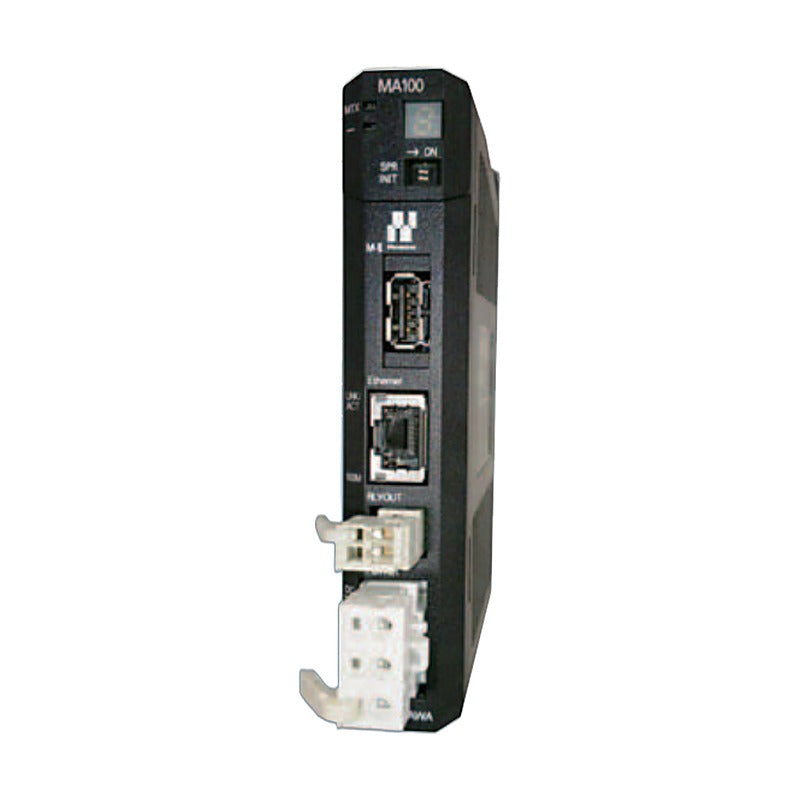

YASKAWA MA100 Compact 4-Axis Positioning Machine Controller

Ultra-compact 4-axis positioning machine controller programmed by drawing time charts in the free MA-Manager tool, with MECHATROLINK-II servo and I/O connection.

Key features

Controls up to 4 servo axes and up to 4 I/O stations over MECHATROLINK-II (32-byte)
Programming by time chart in MA-Manager: no ladder or motion language needed
Ethernet 10BASE-T/100BASE-TX for PC, HMI or host PLC connection
Built-in servo I/O: 3 inputs and 3 outputs; 2 ms fixed scan
Up to 400 positioning moves and 400 ON/OFF signal events per program
SigmaWin+ connection via MA100 for Sigma-V SERVOPACK tuning

Specifications

Brand	YASKAWA
Series	MA100
Power supply	24 VDC +/-20%, 1 A max.
Dimensions	25 (W) x 130 (H) x 108 (D) mm
Memory	SDRAM 16 MB, Flash 4 MB, program 1 MB
Operating temp.	0 to +55 C
Engineering tool	MA-Manager (free)
Source	YASKAWA MA100 Catalog (Korean ed.), p. 1, 6-7

JEPMC-MA100-E

Model: MA100 | Axes: 4 | Network: MECHATROLINK-II | Ethernet: 10BASE-T/100BASE-TX

Motion ControllersYASKAWA

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA MA100 Compact 4-Axis Positioning Machine Controller

Brand YASKAWA·Motion Controllers

Available part numbers (1)

JEPMC-MA100-E
