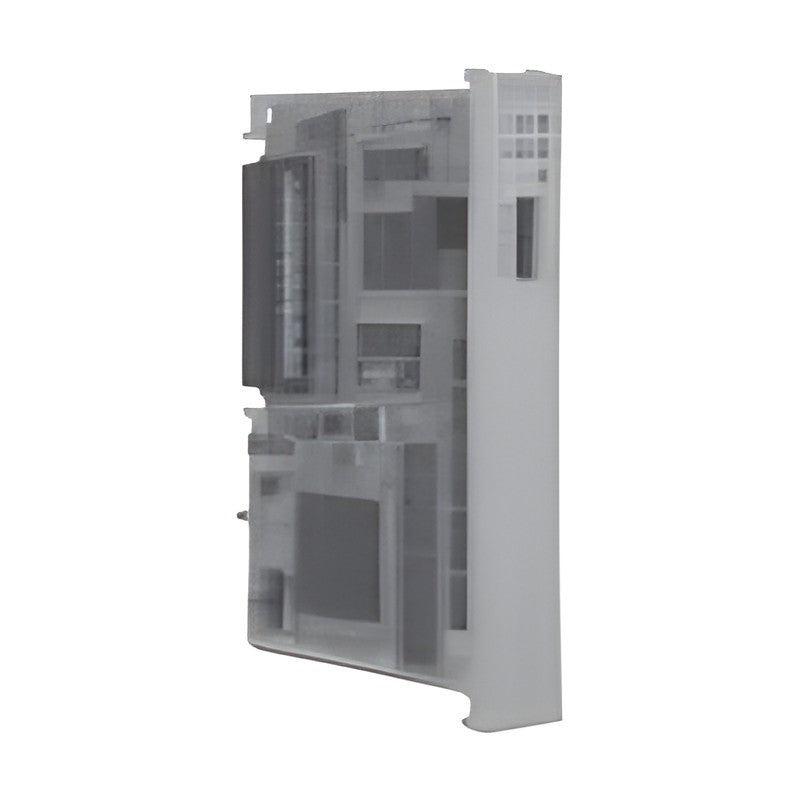

YASKAWA MP2200 CPU Modules, Base Units & Expansion Interface

YASKAWA MP2200 CPU Modules, Base Units & Expansion Interface

Building-block MP2200 machine controller: CPU modules, 9- or 4-slot base units and expansion interface for up to four racks.

Key features

  • CPU-01 to CPU-04: up to 256 controlled axes, 0.5 ms high-speed scan
  • CPU-02 adds CompactFlash slot and USB; CPU-03/CPU-04 add 100 Mbps Ethernet
  • MPU-01 multiple-CPU module with built-in SVC-01 (MECHATROLINK-III, 16 axes)
  • MBU base units for 100/200 VAC (9 slots) or 24 VDC (9 or 4 slots)
  • EXIOIF expansion interface module connects up to 4 base units
  • MP2200 base units are also used as expansion racks for MP3000 controllers

Specifications

Brand YASKAWA
Series MP2000 (MP2200)
Controller type Rack (module) type
Engineering tool MPE720
Standards UL certified; EU Directives, KC Mark
Source YASKAWA MP2000 Series Catalog, p. 42, 76; MP3000 Series Catalog, p. 53, 85-86, 91
JAPMC-CP2200-E Unit: CPU module | Model name: CPU-01 | Feature: Standard CPU | Memory: 7.5 MB
JAPMC-CP2210-E Unit: CPU module | Model name: CPU-02 | Feature: CF card slot, USB port | Memory: 7.5 MB
JAPMC-CP2220-E Unit: CPU module | Model name: CPU-03 | Feature: CF card slot, Ethernet 100M | Memory: 11.5 MB
JAPMC-CP2230-E Unit: CPU module | Model name: CPU-04 | Feature: High-speed, Ethernet 100M | Memory: 11.5 MB
JAPMC-CP2700-E Unit: Multiple-CPU module | Model name: MPU-01 | Feature: CPU + SVC-01, 1 ch ML-III | Memory: 11.5 MB
JEPMC-BU2200-E Unit: Base unit | Model name: MBU-01 | Feature: 100/200 VAC input, 9 slots | Memory: -
JEPMC-BU2210-E Unit: Base unit | Model name: MBU-02 | Feature: 24 VDC input, 9 slots | Memory: -
JEPMC-BU2220-E Unit: Base unit | Model name: MBU-03 | Feature: 24 VDC input, 4 slots | Memory: -
JAPMC-EX2200-E Unit: Expansion interface module | Model name: EXIOIF | Feature: Up to 4 racks | Memory: -
Motion ControllersYASKAWA
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA MP2200 CPU Modules, Base Units & Expansion Interface

Brand YASKAWA·Motion Controllers

Available part numbers (9)

JAPMC-CP2200-E, JAPMC-CP2210-E, JAPMC-CP2220-E, JAPMC-CP2230-E, JAPMC-CP2700-E, JEPMC-BU2200-E, JEPMC-BU2210-E, JEPMC-BU2220-E, JAPMC-EX2200-E
