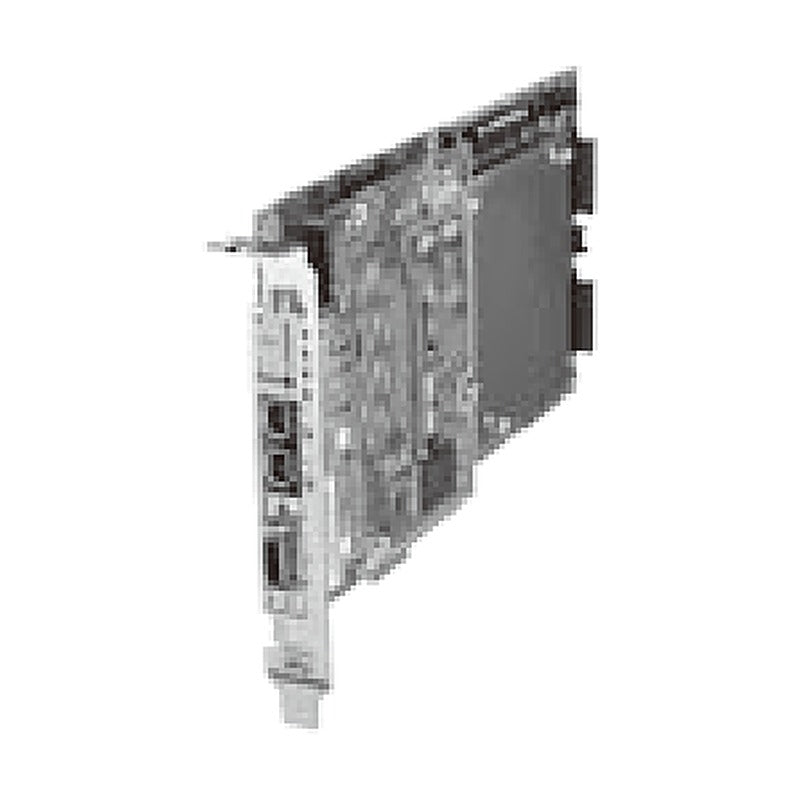

YASKAWA MP3100 / MP3110 PCI Express Board Machine Controllers

YASKAWA MP3100 / MP3110 PCI Express Board Machine Controllers

PCI Express half-size board machine controllers that put complete MECHATROLINK-III motion control inside a Windows PC.

Key features

  • MP3100: 16 or 32 axes, 125 us scan and communication cycle, 15/31 MB program
  • MP3100 processes about four times faster than the MP2100 board
  • Built-in 5 inputs / 4 outputs and USB 2.0 port for storage devices
  • MP3110 / MP3110M SoftMotion boards: 32 or 64 axes using PC processing power
  • MP3100EX / MP3101EX rack expansion boards connect up to 3 MP2200 base units

Specifications

Brand YASKAWA
Series MP3000 (MP3100)
Controller type PC board
Bus PCI Express 1.1 (Gen1), half size
Motion network MECHATROLINK-III
Host OS Windows 10/8.1/8/7
Source YASKAWA MP3000 Series Catalog, p. 27, 50, 85, 90; MP3100 Catalog, p. 1-2
JAPMC-MC3100-1-E Board: MP3100 (16 axes) | Function: SVC/SVR, ladder/motion | Program: 15 MB | ML-III: 1 circuit, 2 ports
JAPMC-MC3100-2-E Board: MP3100 (32 axes) | Function: SVC32/SVR32, ladder/motion | Program: 31 MB | ML-III: 1 circuit, 2 ports
JAPMC-MC3110-E Board: MP3110 (32 axes) | Function: SoftMotion (Motion API) | Program: - | ML-III: 1 circuit, 2 ports
JAPMC-MC3130-E Board: MP3110M (64 axes) | Function: SoftMotion (Motion API) | Program: - | ML-III: 2 circuits, 4 ports
JAPMC-EX3100-E Board: MP3100EX rack expansion I/F | Function: To rack exp. unit / EXIOIF | Program: - | ML-III: -
JAPMC-EX3101-E Board: MP3101EX rack expansion I/F | Function: To EXIOIF module | Program: - | ML-III: -
Motion ControllersYASKAWA
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA MP3100 / MP3110 PCI Express Board Machine Controllers

Brand YASKAWA·Motion Controllers

Available part numbers (6)

JAPMC-MC3100-1-E, JAPMC-MC3100-2-E, JAPMC-MC3110-E, JAPMC-MC3130-E, JAPMC-EX3100-E, JAPMC-EX3101-E

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JAPMC-MC3100-1-EBoard: MP3100 (16 axes) | Function: SVC/SVR, ladder/motion | Program: 15 MB | ML-III: 1 circuit, 2 ports
JAPMC-MC3100-2-EBoard: MP3100 (32 axes) | Function: SVC32/SVR32, ladder/motion | Program: 31 MB | ML-III: 1 circuit, 2 ports
JAPMC-MC3110-EBoard: MP3110 (32 axes) | Function: SoftMotion (Motion API) | Program: - | ML-III: 1 circuit, 2 ports
JAPMC-MC3130-EBoard: MP3110M (64 axes) | Function: SoftMotion (Motion API) | Program: - | ML-III: 2 circuits, 4 ports
JAPMC-EX3100-EBoard: MP3100EX rack expansion I/F | Function: To rack exp. unit / EXIOIF | Program: - | ML-III: -
JAPMC-EX3101-EBoard: MP3101EX rack expansion I/F | Function: To EXIOIF module | Program: - | ML-III: -
