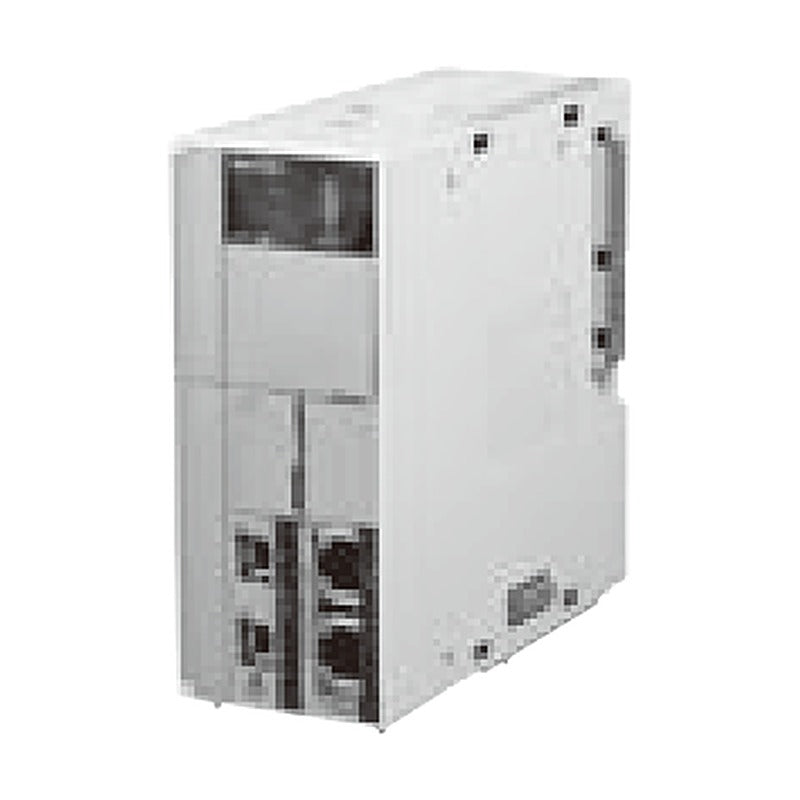

YASKAWA MP3200 Machine Controller Units (CPU, PSU, base, options)

YASKAWA MP3200 Machine Controller Units (CPU, PSU, base, options)

Rack-type MP3200 machine controller units - CPU, power supply, base and expansion units - for high-speed multi-axis motion control over MECHATROLINK-III.

Key features

  • CPU-201/CPU-202: high-speed scan setting down to 125 us, 32 MB program capacity
  • One MECHATROLINK-III circuit (2 ports) with master and slave functions
  • Ethernet 10BASE-T/100BASE-TX x2 ports (hub) and USB 2.0 host port for storage
  • AC (85 to 276 VAC) or DC (24 VDC) power supply units, 5.15 V / 12.0 A output
  • 3-, 5- and 8-slot base units for MP2000/MP3000 optional modules
  • Optional YVD-001 vision unit and EXU rack expansion interface units

Specifications

Brand YASKAWA
Series MP3000 (MP3200)
Controller type Rack (unit) type
Motion network MECHATROLINK-III
Engineering tool MPE720 Ver.7
Standards UL certified; EU Directives, KC Mark
Source YASKAWA MP3000 Series Catalog, p. 50-51, 85, 90
JEPMC-PSA3012-E Unit: Power supply unit | Model name: PSA-12 | Input: 85 to 276 VAC | Output: 5.15 V, 12.0 A
JEPMC-PSD3012-E Unit: Power supply unit | Model name: PSD-12 | Input: 24 VDC | Output: 5.15 V, 12.0 A
JEPMC-CP3201-E Unit: CPU unit | Model name: CPU-201 | Comm. cycle: 250 us min. | Memory: 32 MB program, 128 MB SDRAM
JEPMC-CP3202-E Unit: CPU unit | Model name: CPU-202 | Comm. cycle: 125 us min. | Memory: 32 MB program, 512 MB SDRAM
JEPMC-BUB3003-E Unit: Base unit | Model name: MBU-B03 | Slots: 3 optional-module slots
JEPMC-BUB3005-E Unit: Base unit | Model name: MBU-B05 | Slots: 5 optional-module slots
JEPMC-BUB3008-E Unit: Base unit | Model name: MBU-B08 | Slots: 8 optional-module slots
JEPMC-YVD3001-E Unit: Vision unit (option) | Model name: YVD-001 | Note: Estimate required before order
JEPMC-EXU3001-E Unit: Rack expansion I/F unit | Model name: EXU-001 | Use: Main rack, 3 ports
JEPMC-EXU3002-E Unit: Rack expansion I/F unit | Model name: EXU-002 | Use: Expansion rack, 1 port
Motion ControllersYASKAWA
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA MP3200 Machine Controller Units (CPU, PSU, base, options)

Brand YASKAWA·Motion Controllers

Available part numbers (10)

JEPMC-PSA3012-E, JEPMC-PSD3012-E, JEPMC-CP3201-E, JEPMC-CP3202-E, JEPMC-BUB3003-E, JEPMC-BUB3005-E, JEPMC-BUB3008-E, JEPMC-YVD3001-E, JEPMC-EXU3001-E, JEPMC-EXU3002-E

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JEPMC-PSA3012-EUnit: Power supply unit | Model name: PSA-12 | Input: 85 to 276 VAC | Output: 5.15 V, 12.0 A
JEPMC-PSD3012-EUnit: Power supply unit | Model name: PSD-12 | Input: 24 VDC | Output: 5.15 V, 12.0 A
JEPMC-CP3201-EUnit: CPU unit | Model name: CPU-201 | Comm. cycle: 250 us min. | Memory: 32 MB program, 128 MB SDRAM
JEPMC-CP3202-EUnit: CPU unit | Model name: CPU-202 | Comm. cycle: 125 us min. | Memory: 32 MB program, 512 MB SDRAM
JEPMC-BUB3003-EUnit: Base unit | Model name: MBU-B03 | Slots: 3 optional-module slots
JEPMC-BUB3005-EUnit: Base unit | Model name: MBU-B05 | Slots: 5 optional-module slots
JEPMC-BUB3008-EUnit: Base unit | Model name: MBU-B08 | Slots: 8 optional-module slots
JEPMC-YVD3001-EUnit: Vision unit (option) | Model name: YVD-001 | Note: Estimate required before order
JEPMC-EXU3001-EUnit: Rack expansion I/F unit | Model name: EXU-001 | Use: Main rack, 3 ports
JEPMC-EXU3002-EUnit: Rack expansion I/F unit | Model name: EXU-002 | Use: Expansion rack, 1 port
