• YASKAWA PG-3 Series PG Speed Controller (Encoder Feedback) Cards
1 1

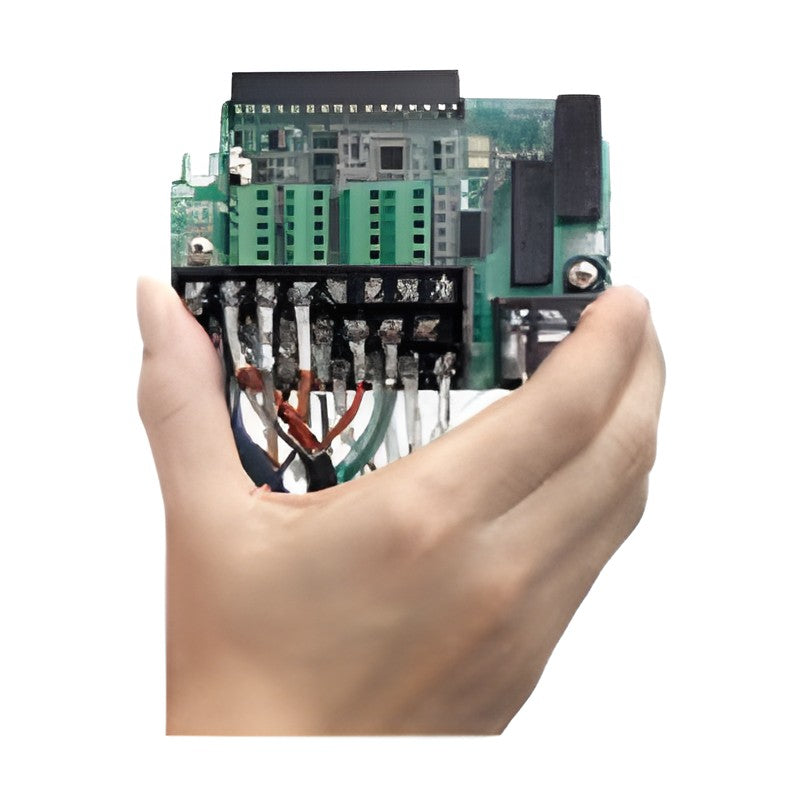

YASKAWA 1000-Series PG-*3 PG Speed Controller Cards (4 cards)

YASKAWA 1000-Series PG-*3 PG Speed Controller Cards (4 cards)

Built-in PG speed controller cards that connect motor encoders or resolvers for closed-loop control on 1000-series drives.

Key features

  • PG-B3: complementary A/B/Z pulse inputs, 50 kHz max., 12 V 200 mA PG supply
  • PG-X3: line driver (RS-422) A/B/Z inputs, 300 kHz max., 5 V or 12 V PG supply
  • PG-F3: EnDat 2.1/01, 2.2/01, 2.2/22 and HIPERFACE encoders for PM motors
  • PG-RT3: resolver interface for Tamagawa TS2640N321E64 and compatible resolvers
  • PG speed controller card is required for PG (closed-loop) control
  • PG-F3 not available for CIMR-AA4A0930 and 4A1200

Specifications

Brand YASKAWA
Category PG speed controller card
Mounting Built-in (connector)
Compatible drives A1000, U1000
Compliance RoHS Directive
Source YASKAWA A1000 catalogue, p. 35; U1000 catalogue, p. 37
PG-B3 Type: Complementary type PG | Max. input freq.: 50 kHz | Manual No.: TOBPC73060075
PG-X3 Type: Line driver PG (RS-422) | Max. input freq.: 300 kHz | Manual No.: TOBPC73060076
PG-F3 Type: EnDat / HIPERFACE encoder | Max. input freq.: 20 kHz | Manual No.: TOBPC73060077
PG-RT3 Type: Resolver (TS2640N321E64) | Max. input freq.: Resolver, 7 Vac 10 kHz excit. | Manual No.: TOBPC73060087
