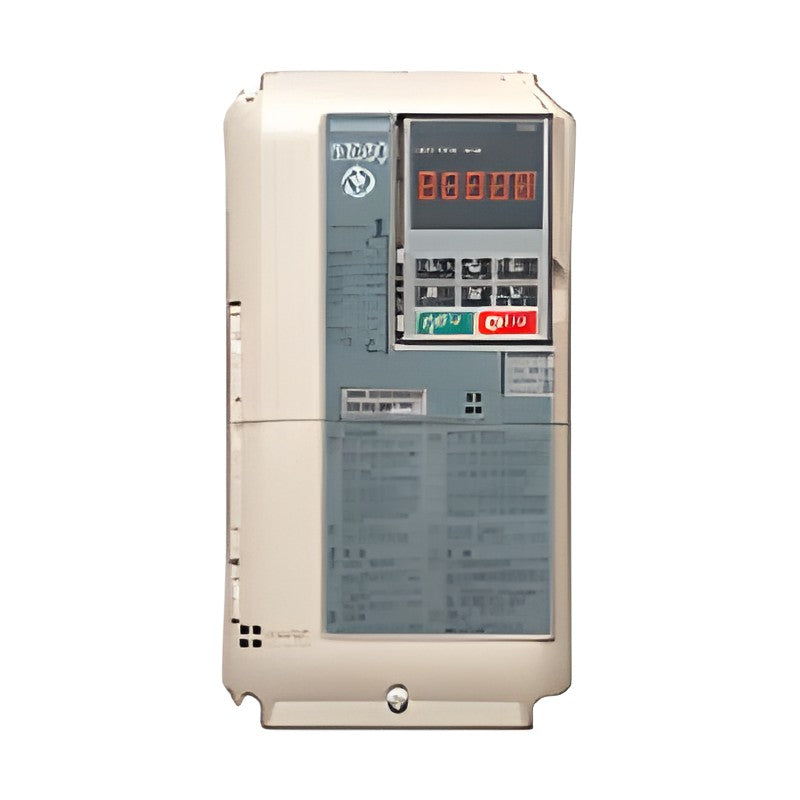

YASKAWA R1000 Power Regenerative Unit (400 V class, 3.5-300 kW)

YASKAWA R1000 Power Regenerative Unit (400 V class, 3.5-300 kW)

YASKAWA R1000 400 V class power regenerative unit (energy-saving unit) that feeds drive regenerative energy back to the power supply.

Key features

  • Returns regenerative energy from the connected drive to the power supply, replacing braking resistors
  • 120-degree excitation method; regenerative torque 150% 30 s, 100% 25% ED, 80% continuous
  • Input power factor 0.9 min. at rated load; overload 150% of rated power supply current for 30 s
  • Removable terminal block with parameter backup; MEMOBUS/Modbus RS-422/485 standard, option card slots
  • MTO = made to order. Full model = CIMR-RA + voltage + A + capacity + enclosure (A IP00 / F IP20/UL Type 1) + environment + revision; environmental versions K (gas), M (humidity/dust), S (vibration) on request
  • Requires the standard configuration devices: power coordinating reactor, current suppression reactor and input fuses

Specifications

Series R1000 Energy-Saving Unit
Voltage class 400 V (3-phase 380-480 Vac, 50/60 Hz)
Regeneration capacity 3.5 to 300 kW
Control method 120-degree excitation
Input power factor 0.9 min. (rated load)
Overload 150% of rated current for 30 s
Safety standards UL508C, IEC/EN61800-5-1, IEC/EN61800-3
Enclosure IP00 open-chassis / IP20 UL Type 1 panel
Source YASKAWA R1000 catalogue, p. 8-16
CIMR-RA4A03P5 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 3.5 kW | Motor: 3.7 kW | Current: 7 A DC / 5 A AC
CIMR-RA4A03P5FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 3.5 kW | Motor: 3.7 kW | Current: 7 A DC / 5 A AC
CIMR-RA4A0005 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 5 kW | Motor: 5.5 kW | Current: 11 A DC / 8 A AC
CIMR-RA4A0005FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 5 kW | Motor: 5.5 kW | Current: 11 A DC / 8 A AC
CIMR-RA4A0007 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 7 kW | Motor: 7.5 kW | Current: 15 A DC / 11 A AC
CIMR-RA4A0007FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 7 kW | Motor: 7.5 kW | Current: 15 A DC / 11 A AC
CIMR-RA4A0010 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 10 kW | Motor: 11 kW | Current: 22 A DC / 16 A AC
CIMR-RA4A0010FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 10 kW | Motor: 11 kW | Current: 22 A DC / 16 A AC
CIMR-RA4A0014 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 14 kW | Motor: 15 kW | Current: 30 A DC / 22 A AC
CIMR-RA4A0014FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 14 kW | Motor: 15 kW | Current: 30 A DC / 22 A AC
CIMR-RA4A0017 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 17 kW | Motor: 18.5 kW | Current: 36 A DC / 27 A AC
CIMR-RA4A0017FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 17 kW | Motor: 18.5 kW | Current: 36 A DC / 27 A AC
CIMR-RA4A0020 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 20 kW | Motor: 22 kW | Current: 43 A DC / 32 A AC
CIMR-RA4A0020FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 20 kW | Motor: 22 kW | Current: 43 A DC / 32 A AC
CIMR-RA4A0028 Base model (specify enclosure) | Region: A (Japan) | Enclosure: F (IP20/UL Type 1) | Regen: 28 kW | Motor: 30 kW | Current: 58 A DC / 43 A AC
CIMR-RA4A0028FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure | Regen: 28 kW | Motor: 30 kW | Current: 58 A DC / 43 A AC
CIMR-RA4A0035 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00), F (IP20/UL Type 1, MTO) | Regen: 35 kW | Motor: 37 kW | Current: 73 A DC / 54 A AC
CIMR-RA4A0035AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 35 kW | Motor: 37 kW | Current: 73 A DC / 54 A AC
CIMR-RA4A0035FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure (MTO) | Regen: 35 kW | Motor: 37 kW | Current: 73 A DC / 54 A AC
CIMR-RA4A0043 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00), F (IP20/UL Type 1, MTO) | Regen: 43 kW | Motor: 45 kW | Current: 89 A DC / 66 A AC
CIMR-RA4A0043AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 43 kW | Motor: 45 kW | Current: 89 A DC / 66 A AC
CIMR-RA4A0043FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure (MTO) | Regen: 43 kW | Motor: 45 kW | Current: 89 A DC / 66 A AC
CIMR-RA4A0053 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00), F (IP20/UL Type 1, MTO) | Regen: 53 kW | Motor: 55 kW | Current: 109 A DC / 81 A AC
CIMR-RA4A0053AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 53 kW | Motor: 55 kW | Current: 109 A DC / 81 A AC
CIMR-RA4A0053FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure (MTO) | Regen: 53 kW | Motor: 55 kW | Current: 109 A DC / 81 A AC
CIMR-RA4A0073 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00), F (IP20/UL Type 1, MTO) | Regen: 73 kW | Motor: 75 kW | Current: 149 A DC / 110 A AC
CIMR-RA4A0073AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 73 kW | Motor: 75 kW | Current: 149 A DC / 110 A AC
CIMR-RA4A0073FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure (MTO) | Regen: 73 kW | Motor: 75 kW | Current: 149 A DC / 110 A AC
CIMR-RA4A0105 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00), F (IP20/UL Type 1, MTO) | Regen: 105 kW | Motor: 110 kW | Current: 217 A DC / 161 A AC
CIMR-RA4A0105AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 105 kW | Motor: 110 kW | Current: 217 A DC / 161 A AC
CIMR-RA4A0105FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure (MTO) | Regen: 105 kW | Motor: 110 kW | Current: 217 A DC / 161 A AC
CIMR-RA4A0150 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00), F (IP20/UL Type 1, MTO) | Regen: 150 kW | Motor: 160 kW | Current: 320 A DC / 237 A AC
CIMR-RA4A0150AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 150 kW | Motor: 160 kW | Current: 320 A DC / 237 A AC
CIMR-RA4A0150FAA Region: A (Japan) | Enclosure: IP20/UL Type 1 enclosure (MTO) | Regen: 150 kW | Motor: 160 kW | Current: 320 A DC / 237 A AC
CIMR-RA4A0210 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00) | Regen: 210 kW | Motor: 220 kW | Current: 440 A DC / 326 A AC
CIMR-RA4A0210AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 210 kW | Motor: 220 kW | Current: 440 A DC / 326 A AC
CIMR-RA4A0300 Base model (specify enclosure) | Region: A (Japan) | Enclosure: A (IP00) | Regen: 300 kW | Motor: 315 kW | Current: 629 A DC / 466 A AC
CIMR-RA4A0300AAA Region: A (Japan) | Enclosure: IP00 open-chassis | Regen: 300 kW | Motor: 315 kW | Current: 629 A DC / 466 A AC
