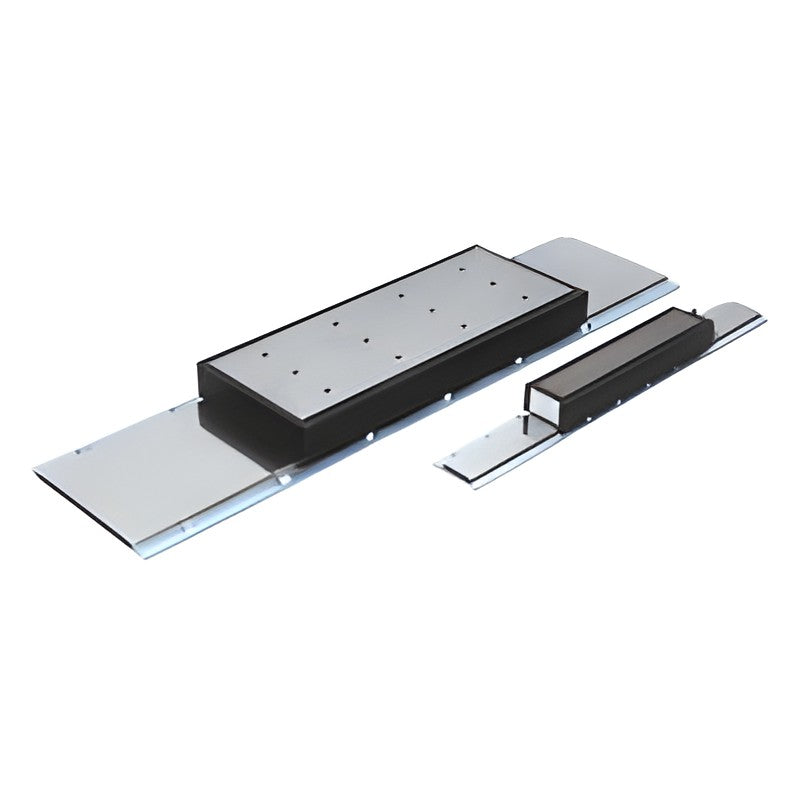

YASKAWA SGLFW2 F-type Iron-Core Linear Servo Motor Coils (Sigma-X)

YASKAWA SGLFW2 F-type Iron-Core Linear Servo Motor Coils (Sigma-X)

Linear Sigma SGLFW2 F-type iron-core moving coils (Sigma-X model numbers) for use with SGLFM2 magnet tracks and Sigma-X SERVOPACKs, delivering high force density in a flat single-sided design.

Key features

  • Iron-core coil on a single-sided flat magnet track; magnetic attraction can be used to preload bearings
  • Magnet heights 30, 45, 90 and 135 mm (1D); rated force 45 N to 2520 N, peak force up to 7560 N
  • Built-in thermal protector on all coils; S models add a Hall (magnetic pole) sensor
  • Main-circuit lead 300 mm or 500 mm, with Tyco Electronics connector or bare lead ends
  • Water-cooled (L) versions for 90A/1DA coils available on request (not listed)
  • Combine with SGLFM2 magnet tracks (270 - 714 mm lengths, combinable for longer strokes)

Specifications

Series Linear Sigma SGLFW2 (F-type core)
Power supply 200 VAC
Cooling Natural (self) cooling
Max speed 2.5 - 5.0 m/s
Insulation class B
Protection IP00
Ambient 0 - 40 C, 20 - 80% RH
Compatible drives Sigma-X SGDXS / SGDXW
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 314-339
SGLFW2-30A070AS1 Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-30A070AS1F Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-30A070AS1G Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-30A070AS1H Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-30A070AT1 Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-30A070AT1F Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-30A070AT1G Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-30A070AT1H Part: Moving coil | Force (rated/max): 45 / 135 N | Rated current: 1.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-30A120AS1 Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-30A120AS1F Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-30A120AS1G Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-30A120AS1H Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-30A120AT1 Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-30A120AT1F Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-30A120AT1G Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-30A120AT1H Part: Moving coil | Force (rated/max): 90 / 270 N | Rated current: 1.5 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-30A230AS1 Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-30A230AS1F Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-30A230AS1G Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-30A230AS1H Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-30A230AT1 Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-30A230AT1F Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-30A230AT1G Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-30A230AT1H Part: Moving coil | Force (rated/max): 170-180 / 500-540 N | Rated current: 2.8-2.9 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-45A200AS1 Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-45A200AS1F Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-45A200AS1G Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-45A200AS1H Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-45A200AT1 Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-45A200AT1F Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-45A200AT1G Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-45A200AT1H Part: Moving coil | Force (rated/max): 280 / 840 N | Rated current: 4.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-45A380AS1 Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-45A380AS1F Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-45A380AS1G Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-45A380AS1H Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-45A380AT1 Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-45A380AT1F Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-45A380AT1G Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-45A380AT1H Part: Moving coil | Force (rated/max): 560 / 1500-1680 N | Rated current: 8.7 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-90A200AS1 Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-90A200AS1F Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-90A200AS1G Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-90A200AS1H Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-90A200AT1 Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-90A200AT1F Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-90A200AT1G Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-90A200AT1H Part: Moving coil | Force (rated/max): 560 / 1680 N | Rated current: 7.2 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-90A380AS1 Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-90A380AS1F Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-90A380AS1G Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-90A380AS1H Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-90A380AT1 Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-90A380AT1F Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-90A380AT1G Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-90A380AT1H Part: Moving coil | Force (rated/max): 1120 / 3360 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-90A560AS1 Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-90A560AS1F Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-90A560AS1G Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-90A560AS1H Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-90A560AT1 Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-90A560AT1F Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-90A560AT1G Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-90A560AT1H Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-1DA380AS1 Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-1DA380AS1F Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-1DA380AS1G Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-1DA380AS1H Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-1DA380AT1 Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-1DA380AT1F Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-1DA380AT1G Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-1DA380AT1H Part: Moving coil | Force (rated/max): 1680 / 5040 N | Rated current: 14.4 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
SGLFW2-1DA560AS1 Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 300 mm lead
SGLFW2-1DA560AS1F Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 300 mm lead
SGLFW2-1DA560AS1G Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: No connector, 500 mm lead
SGLFW2-1DA560AS1H Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Hall sensor + thermal protector | Lead: Tyco connector, 500 mm lead
SGLFW2-1DA560AT1 Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 300 mm lead
SGLFW2-1DA560AT1F Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: No connector, 300 mm lead
SGLFW2-1DA560AT1G Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: No connector, 500 mm lead
SGLFW2-1DA560AT1H Part: Moving coil | Force (rated/max): 2520 / 7560 N | Rated current: 21.6 Arms | Sensor: Thermal protector only | Lead: Tyco connector, 500 mm lead
Linear Servo MotorsYASKAWA
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA SGLFW2 F-type Iron-Core Linear Servo Motor Coils (Sigma-X)

Brand YASKAWA·Linear Servo Motors

Available part numbers (80)

SGLFW2-30A070AS1, SGLFW2-30A070AS1F, SGLFW2-30A070AS1G, SGLFW2-30A070AS1H, SGLFW2-30A070AT1, SGLFW2-30A070AT1F, SGLFW2-30A070AT1G, SGLFW2-30A070AT1H, SGLFW2-30A120AS1, SGLFW2-30A120AS1F + 70 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
