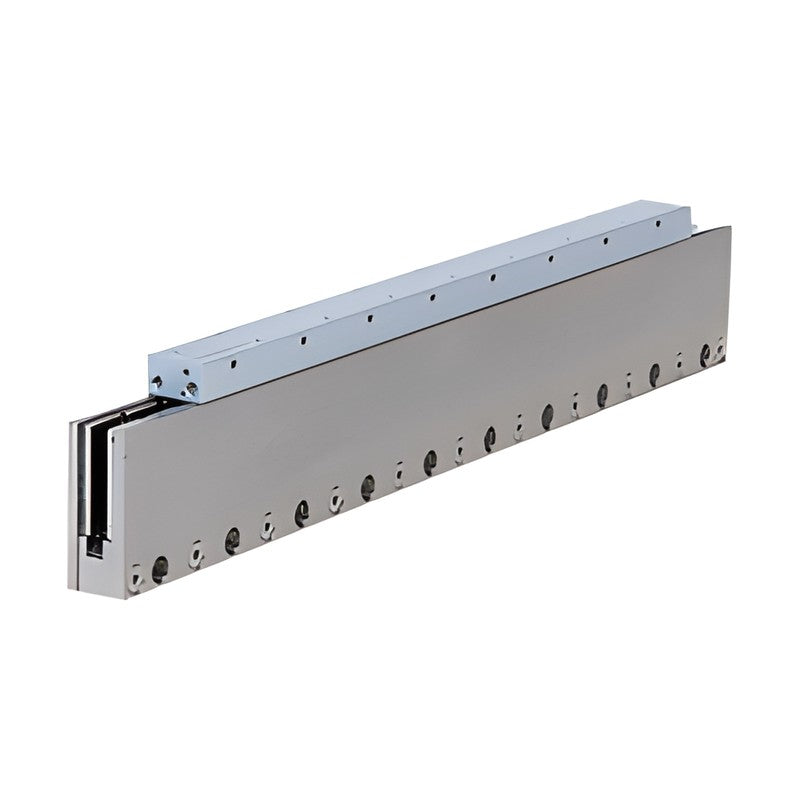

YASKAWA SGLG Coreless Linear Servo Motors (SGLGW coils, SGLGM tracks)

YASKAWA SGLG Coreless Linear Servo Motors (SGLGW coils, SGLGM tracks)

Coreless (ironless) Linear Sigma SGLG moving coils and magnet tracks for Sigma-X SERVOPACKs, with zero magnetic attraction and minimal force ripple.

Key features

  • Coreless moving coil between two opposing magnet plates: no magnetic attraction, no cogging, long guide life
  • Magnet heights 30, 40, 60 and 90 mm; rated force 12.5 N to 750 N, peak force up to 3000 N
  • High-thrust magnet tracks (-M) for SGLGW-40/-60 raise rated force to up to 255 N
  • Coils with or without Hall sensor (P/H) and natural or forced-air cooling (C/H for 40/60/90)
  • Tyco Electronics or Interconnectron (D) motor connector; EU-directive compliant (-E) versions
  • Magnet tracks SGLGM-40/-60 with or without bottom mounting holes (CT / C)

Specifications

Series Linear Sigma SGLG (coreless)
Power supply 200 VAC
Max speed 4.0 - 5.0 m/s
Insulation class B
Protection IP00
Ambient 0 - 40 C, 20 - 80% RH
Compatible drives Sigma-X SGDXS / SGDXW
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 290-313
SGLGW-30A050C-E Part: Moving coil | Force (rated/max): 12.5 / 40 N | Rated current: 0.51 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-30A050CD-E Part: Moving coil | Force (rated/max): 12.5 / 40 N | Rated current: 0.51 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-30A050CP-E Part: Moving coil | Force (rated/max): 12.5 / 40 N | Rated current: 0.51 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-30A050CPD-E Part: Moving coil | Force (rated/max): 12.5 / 40 N | Rated current: 0.51 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-30A080C-E Part: Moving coil | Force (rated/max): 25 / 80 N | Rated current: 0.79 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-30A080CD-E Part: Moving coil | Force (rated/max): 25 / 80 N | Rated current: 0.79 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-30A080CP-E Part: Moving coil | Force (rated/max): 25 / 80 N | Rated current: 0.79 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-30A080CPD-E Part: Moving coil | Force (rated/max): 25 / 80 N | Rated current: 0.79 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-40A140C-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-40A140CD-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-40A140CC-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-40A140CCD-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-40A140CH-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-40A140CHD-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-40A140CP-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-40A140CPD-E Part: Moving coil | Force (rated/max): 47 / 140 N; HT track 57 / 230 N | Rated current: 0.80 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-40A253C-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-40A253CD-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-40A253CC-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-40A253CCD-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-40A253CH-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-40A253CHD-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-40A253CP-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-40A253CPD-E Part: Moving coil | Force (rated/max): 93 / 280 N; HT track 114 / 460 N | Rated current: 1.6 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-40A365C-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-40A365CD-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-40A365CC-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-40A365CCD-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-40A365CH-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-40A365CHD-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-40A365CP-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-40A365CPD-E Part: Moving coil | Force (rated/max): 140 / 420 N; HT track 171 / 690 N | Rated current: 2.4 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-60A140C-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-60A140CD-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-60A140CC-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-60A140CCD-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-60A140CH-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-60A140CHD-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-60A140CP-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-60A140CPD-E Part: Moving coil | Force (rated/max): 70 / 220 N; HT track 85 / 360 N | Rated current: 1.2 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-60A253C-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-60A253CD-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-60A253CC-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-60A253CCD-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-60A253CH-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-60A253CHD-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-60A253CP-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-60A253CPD-E Part: Moving coil | Force (rated/max): 140 / 440 N; HT track 170 / 720 N | Rated current: 2.2 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-60A365C-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-60A365CD-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-60A365CC-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-60A365CCD-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-60A365CH-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-60A365CHD-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Interconnectron
SGLGW-60A365CP-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-60A365CPD-E Part: Moving coil | Force (rated/max): 210 / 660 N; HT track 255 / 1080 N | Rated current: 3.3 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Interconnectron
SGLGW-90A200C-E Part: Moving coil | Force (rated/max): 325 / 1300 N | Rated current: 4.4 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-90A200CC-E Part: Moving coil | Force (rated/max): 325 / 1300 N | Rated current: 4.4 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-90A200CH-E Part: Moving coil | Force (rated/max): 325 / 1300 N | Rated current: 4.4 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-90A200CP-E Part: Moving coil | Force (rated/max): 325 / 1300 N | Rated current: 4.4 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-90A370C-E Part: Moving coil | Force (rated/max): 550 / 2200 N | Rated current: 7.5 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-90A370CC-E Part: Moving coil | Force (rated/max): 550 / 2200 N | Rated current: 7.5 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-90A370CH-E Part: Moving coil | Force (rated/max): 550 / 2200 N | Rated current: 7.5 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-90A370CP-E Part: Moving coil | Force (rated/max): 550 / 2200 N | Rated current: 7.5 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-90A535C-E Part: Moving coil | Force (rated/max): 750 / 3000 N | Rated current: 10.2 Arms | Sensor/cooling: No Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGW-90A535CC-E Part: Moving coil | Force (rated/max): 750 / 3000 N | Rated current: 10.2 Arms | Sensor/cooling: No Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-90A535CH-E Part: Moving coil | Force (rated/max): 750 / 3000 N | Rated current: 10.2 Arms | Sensor/cooling: Hall sensor, forced-air cooling | Connector: Tyco Electronics
SGLGW-90A535CP-E Part: Moving coil | Force (rated/max): 750 / 3000 N | Rated current: 10.2 Arms | Sensor/cooling: Hall sensor, natural cooling | Connector: Tyco Electronics
SGLGM-30108A Part: Magnet track | Length: 108 mm | Type: Standard | Mounting holes: - | Mass: 0.6 kg
SGLGM-30216A Part: Magnet track | Length: 216 mm | Type: Standard | Mounting holes: - | Mass: 1.1 kg
SGLGM-30432A Part: Magnet track | Length: 432 mm | Type: Standard | Mounting holes: - | Mass: 2.3 kg
SGLGM-90252A Part: Magnet track | Length: 252 mm | Type: Standard | Mounting holes: - | Mass: 7.3 kg
SGLGM-90504A Part: Magnet track | Length: 504 mm | Type: Standard | Mounting holes: - | Mass: 14.7 kg
SGLGM-40090C Part: Magnet track | Length: 90 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 0.8 kg
SGLGM-40090CT Part: Magnet track | Length: 90 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 0.8 kg
SGLGM-40225C Part: Magnet track | Length: 225 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 2.0 kg
SGLGM-40225CT Part: Magnet track | Length: 225 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 2.0 kg
SGLGM-40360C Part: Magnet track | Length: 360 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 3.1 kg
SGLGM-40360CT Part: Magnet track | Length: 360 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 3.1 kg
SGLGM-40405C Part: Magnet track | Length: 405 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 3.5 kg
SGLGM-40405CT Part: Magnet track | Length: 405 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 3.5 kg
SGLGM-40450C Part: Magnet track | Length: 450 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 3.9 kg
SGLGM-40450CT Part: Magnet track | Length: 450 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 3.9 kg
SGLGM-40090C-M Part: Magnet track | Length: 90 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 1.0 kg
SGLGM-40090CT-M Part: Magnet track | Length: 90 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 1.0 kg
SGLGM-40225C-M Part: Magnet track | Length: 225 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 2.6 kg
SGLGM-40225CT-M Part: Magnet track | Length: 225 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 2.6 kg
SGLGM-40360C-M Part: Magnet track | Length: 360 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 4.1 kg
SGLGM-40360CT-M Part: Magnet track | Length: 360 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 4.1 kg
SGLGM-40405C-M Part: Magnet track | Length: 405 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 4.6 kg
SGLGM-40405CT-M Part: Magnet track | Length: 405 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 4.6 kg
SGLGM-40450C-M Part: Magnet track | Length: 450 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 5.1 kg
SGLGM-40450CT-M Part: Magnet track | Length: 450 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 5.1 kg
SGLGM-60090C Part: Magnet track | Length: 90 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 1.1 kg
SGLGM-60090CT Part: Magnet track | Length: 90 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 1.1 kg
SGLGM-60225C Part: Magnet track | Length: 225 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 2.6 kg
SGLGM-60225CT Part: Magnet track | Length: 225 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 2.6 kg
SGLGM-60360C Part: Magnet track | Length: 360 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 4.1 kg
SGLGM-60360CT Part: Magnet track | Length: 360 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 4.1 kg
SGLGM-60405C Part: Magnet track | Length: 405 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 4.6 kg
SGLGM-60405CT Part: Magnet track | Length: 405 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 4.6 kg
SGLGM-60450C Part: Magnet track | Length: 450 mm | Type: Standard | Mounting holes: No bottom holes | Mass: 5.1 kg
SGLGM-60450CT Part: Magnet track | Length: 450 mm | Type: Standard | Mounting holes: Bottom holes | Mass: 5.1 kg
SGLGM-60090C-M Part: Magnet track | Length: 90 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 1.3 kg
SGLGM-60090CT-M Part: Magnet track | Length: 90 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 1.3 kg
SGLGM-60225C-M Part: Magnet track | Length: 225 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 3.3 kg
SGLGM-60225CT-M Part: Magnet track | Length: 225 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 3.3 kg
SGLGM-60360C-M Part: Magnet track | Length: 360 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 5.2 kg
SGLGM-60360CT-M Part: Magnet track | Length: 360 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 5.2 kg
SGLGM-60405C-M Part: Magnet track | Length: 405 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 5.9 kg
SGLGM-60405CT-M Part: Magnet track | Length: 405 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 5.9 kg
SGLGM-60450C-M Part: Magnet track | Length: 450 mm | Type: High-thrust | Mounting holes: No bottom holes | Mass: 6.6 kg
SGLGM-60450CT-M Part: Magnet track | Length: 450 mm | Type: High-thrust | Mounting holes: Bottom holes | Mass: 6.6 kg
