YASKAWA SGLT T-type Iron-Core Linear Servo Motors (coils, tracks)

YASKAWA SGLT T-type Iron-Core Linear Servo Motors (coils, tracks)

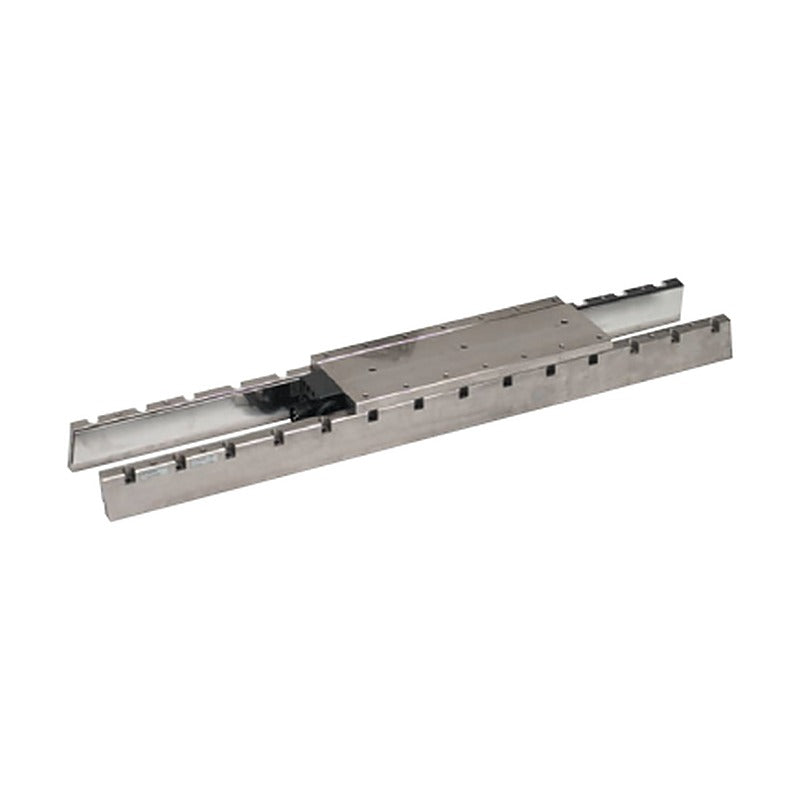

Linear Sigma SGLT T-type iron-core moving coils and SGLTM magnet tracks for Sigma-X SERVOPACKs, with a double-sided magnet structure that cancels magnetic attraction.

Key features

  • T-type iron-core coil between two magnet plates: attraction forces cancel for long guide life and low noise
  • Very low cogging force; standard and high-efficiency (H) coil types
  • Magnet heights 20, 36, 40, 51 and 76.5 mm; rated force 130 N to 2000 N, peak force up to 7500 N
  • Coils with or without Hall sensor (P); EU-directive compliant (-E) versions
  • Magnet tracks with magnet cover (C) or with base + magnet cover (Y, not for 35 H and 50 H)
  • Water-cooled coil versions (C/H for SGLTW-40/-80) available on request (not listed)

Specifications

Series Linear Sigma SGLT (T-type core)
Power supply 200 VAC
Cooling Natural (self) cooling
Max speed 2.5 - 5.0 m/s
Insulation class B
Protection IP00
Ambient 0 - 40 C, 20 - 80% RH
Compatible drives Sigma-X SGDXS / SGDXW
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 340-364
