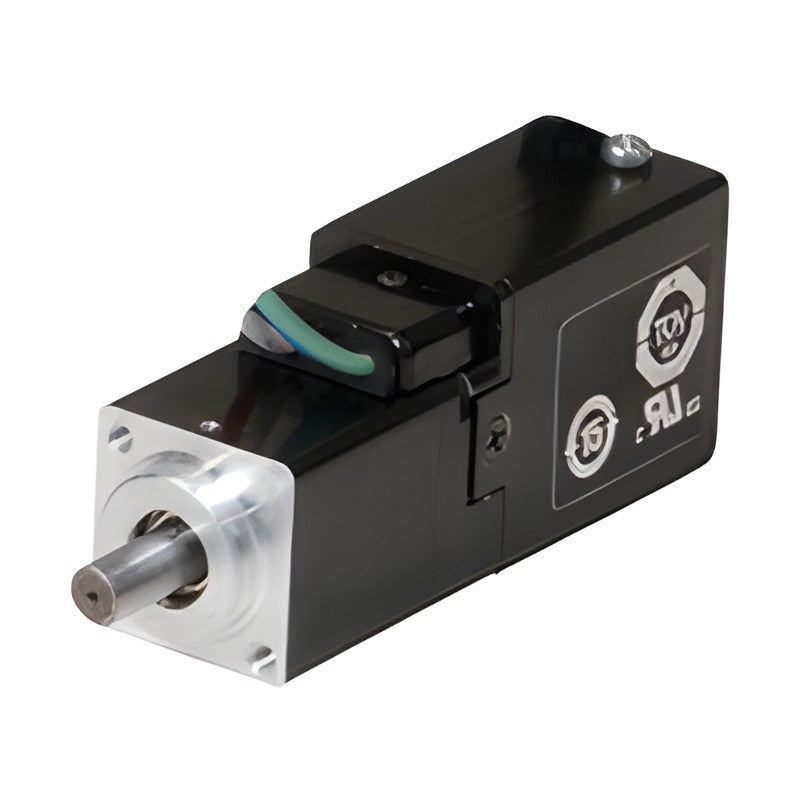

YASKAWA Sigma-7 mini SGM7M Servo Motors (200 V, 11-33 W)

YASKAWA Sigma-7 mini SGM7M Servo Motors (200 V, 11-33 W)

The YASKAWA SGM7M is an ultra-small, low-inertia Sigma-7 mini AC servo motor from 11 W to 33 W with a 20-bit absolute encoder, for use with Sigma-X SERVOPACKs.

Key features

  • Ultra-small, low inertia; rated speed 3000 min-1, max. speed 7000 min-1
  • 20-bit absolute serial encoder
  • Shaft end: straight (2, standard) or straight with flat seat (A, option)
  • Holding brake version (C, 24 VDC +/-10%) available
  • Combined SERVOPACKs: SGDXS-R90A (11/22 W), SGDXS-1R6A (33 W); SGDXW/SGDXT-1R6A, 2R8A
  • Connectors: encoder Hirose IX40-A-8S-CV, motor Molex 43025-0400 (43025-0600 with brake)

Specifications

Series Sigma-7 mini SGM7M rotary servo motor
Supply voltage 200 VAC
Encoder 20-bit absolute
Rated / max. speed 3000 / 7000 min-1
Insulation class B
Protection Totally enclosed, self-cooled, IP55
Vibration class V15
Ambient temperature 0 to 40 C
Model key SGM7M-[cap]A3A[shaft][option]
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 152-158
SGM7M-A1A3A21 Output: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight (standard) | Brake: None
SGM7M-A1A3A2C Output: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight (standard) | Brake: Holding brake, 24 VDC
SGM7M-A1A3AA1 Output: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight with flat seat | Brake: None
SGM7M-A1A3AAC Output: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight with flat seat | Brake: Holding brake, 24 VDC
SGM7M-A2A3A21 Output: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight (standard) | Brake: None
SGM7M-A2A3A2C Output: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight (standard) | Brake: Holding brake, 24 VDC
SGM7M-A2A3AA1 Output: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight with flat seat | Brake: None
SGM7M-A2A3AAC Output: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight with flat seat | Brake: Holding brake, 24 VDC
SGM7M-A3A3A21 Output: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight (standard) | Brake: None
SGM7M-A3A3A2C Output: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight (standard) | Brake: Holding brake, 24 VDC
SGM7M-A3A3AA1 Output: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight with flat seat | Brake: None
SGM7M-A3A3AAC Output: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight with flat seat | Brake: Holding brake, 24 VDC
Servo MotorsYASKAWA
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7 mini SGM7M Servo Motors (200 V, 11-33 W)

Brand YASKAWA·Servo Motors

Available part numbers (12)

SGM7M-A1A3A21, SGM7M-A1A3A2C, SGM7M-A1A3AA1, SGM7M-A1A3AAC, SGM7M-A2A3A21, SGM7M-A2A3A2C, SGM7M-A2A3AA1, SGM7M-A2A3AAC, SGM7M-A3A3A21, SGM7M-A3A3A2C + 2 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGM7M-A1A3A21Output: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight (standard) | Brake: None
SGM7M-A1A3A2COutput: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight (standard) | Brake: Holding brake, 24 VDC
SGM7M-A1A3AA1Output: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight with flat seat | Brake: None
SGM7M-A1A3AACOutput: 11 W | Torque (rated/max): 0.0350 / 0.105 N·m | Shaft: Straight with flat seat | Brake: Holding brake, 24 VDC
SGM7M-A2A3A21Output: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight (standard) | Brake: None
SGM7M-A2A3A2COutput: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight (standard) | Brake: Holding brake, 24 VDC
SGM7M-A2A3AA1Output: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight with flat seat | Brake: None
SGM7M-A2A3AACOutput: 22 W | Torque (rated/max): 0.0700 / 0.210 N·m | Shaft: Straight with flat seat | Brake: Holding brake, 24 VDC
SGM7M-A3A3A21Output: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight (standard) | Brake: None
SGM7M-A3A3A2COutput: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight (standard) | Brake: Holding brake, 24 VDC
SGM7M-A3A3AA1Output: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight with flat seat | Brake: None
SGM7M-A3A3AACOutput: 33 W | Torque (rated/max): 0.105 / 0.315 N·m | Shaft: Straight with flat seat | Brake: Holding brake, 24 VDC
