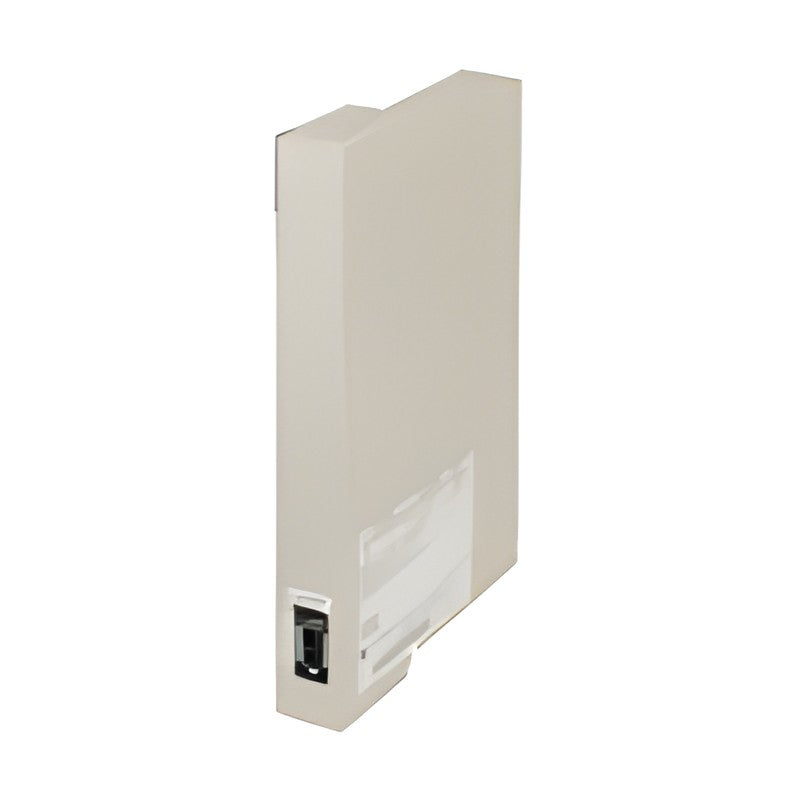

YASKAWA Sigma-7 SGDV SERVOPACK Option Modules

YASKAWA Sigma-7 SGDV SERVOPACK Option Modules

Individually purchased command, feedback and safety option modules that mount on the side of Sigma-7S SERVOPACKs, plus the option case kit.

Key features

  • INDEXER module SGDV-OCA03A: program table, zone table and JOG speed table single-axis positioning with E0 SERVOPACKs
  • DeviceNet modules SGDV-OCA04A (servo-control-powered) and SGDV-OCA05A (external power), option case kit included
  • Full-closed module SGDV-OFA01A: position feedback from an external linear or rotary encoder (Yaskawa serial interface or via serial converter unit)
  • Safety module SGDV-OSA01A: SBB (STO), SBB-D (SS1), SPM-D (SS2), SLS-D (SLS) per IEC 61800-5-2; SIL2/SILCL2, PLd Cat.2
  • Option case kit SGDV-OZA01A required per SERVOPACK for individually purchased INDEXER, full-closed or safety modules
  • Full-closed and safety modules cannot be mounted together; safety module not combinable with INDEXER/DeviceNet

Specifications

Series Sigma-7 SERVOPACK option modules
Applicable SERVOPACK SGD7S single-axis
Mounting Side of SERVOPACK
Safety standards EN ISO 13849-1, IEC 61508, IEC 62061
Full-closed connector CN31 (3E106-0220KV, 3M)
Factory-mounted sets See SGD7S set model numbers
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. M-15, 270-272, 282-284, 332-344
SGDV-OCA03A Type: INDEXER module | Use: SGD7S-....E0A | Note: firmware Ver.6 or later | Mass: 0.2 kg
SGDV-OCA04A Type: DeviceNet module | Use: SGD7S-....E0A | Note: servo control-powered | Mass: 0.3 kg
SGDV-OCA05A Type: DeviceNet module | Use: SGD7S-....E0A | Note: externally powered | Mass: 0.3 kg
SGDV-OFA01A Type: Full-closed module | Use: SGD7S 00/10/20/E0 types | Note: external encoder input CN31 | Mass: 0.1 kg
SGDV-OSA01A Type: Safety module | Use: SGD7S 00/10/20 types | Note: SS1/SS2/SLS, SIL2 PLd | Mass: 0.11 kg
SGDV-OZA01A Type: Option case kit | Use: 1 per SERVOPACK | Note: cover, mounting plate, 2 screws | Mass: not stated
