YASKAWA Sigma-7 SGLF Core-Type Linear Servo Motor Coils (25-2520 N)

YASKAWA Sigma-7 SGLF Core-Type Linear Servo Motor Coils (25-2520 N)

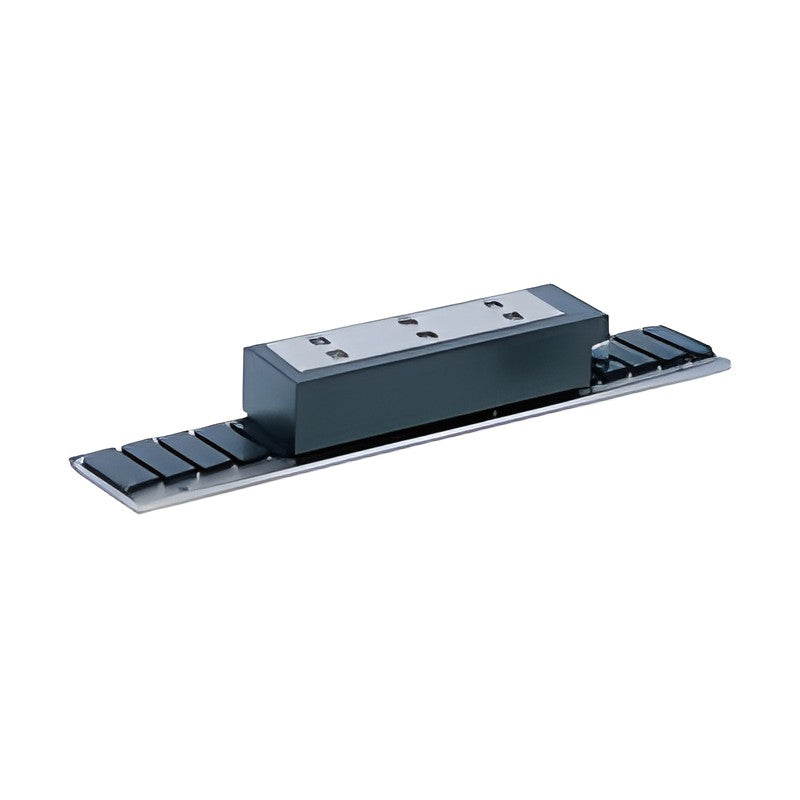

YASKAWA SGLFW2 and SGLFW moving coils are core-type (iron-core) F-model linear servo motor forcers for 200 V Sigma-7 SERVOPACKs, rated 25 to 2520 N.

Key features

  • SGLFW2: magnet heights 30/45/90/135 mm, rated force 45-2520 N, peak up to 7560 N
  • SGLFW2 sensor: S = Hall sensor with thermal protector, T = no Hall sensor with thermal protector
  • SGLFW: magnet heights 20/36/47.5/95 mm, rated force 25-1120 N; P = with Hall sensor
  • SGLFW-35, -50 and -1Z200B also available with Interconnectron connector (suffix D)
  • Self-cooled versions listed; water-cooled SGLFW2 (suffix L) on request; IP00, class B insulation

Specifications

Motor Type Core-type F model, moving coil
Voltage 200 VAC
Protection IP00
Insulation Class B
Cooling Self-cooled
Excitation Permanent magnet
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 209-251
SGLFW2-30A070AS Model Line: SGLFW2 | Force: 45 N (peak 135) | Current: 1.4 Arms | Mass: 0.50 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-30
SGLFW2-30A070AT Model Line: SGLFW2 | Force: 45 N (peak 135) | Current: 1.4 Arms | Mass: 0.50 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-30
SGLFW2-30A120AS Model Line: SGLFW2 | Force: 90 N (peak 270) | Current: 1.5 Arms | Mass: 0.90 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-30
SGLFW2-30A120AT Model Line: SGLFW2 | Force: 90 N (peak 270) | Current: 1.5 Arms | Mass: 0.90 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-30
SGLFW2-30A230AS Model Line: SGLFW2 | Force: 180 N (peak 540) | Current: 2.9 Arms | Mass: 1.7 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-30
SGLFW2-30A230AT Model Line: SGLFW2 | Force: 180 N (peak 540) | Current: 2.9 Arms | Mass: 1.7 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-30
SGLFW2-45A200AS Model Line: SGLFW2 | Force: 280 N (peak 840) | Current: 4.4 Arms | Mass: 2.9 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-45
SGLFW2-45A200AT Model Line: SGLFW2 | Force: 280 N (peak 840) | Current: 4.4 Arms | Mass: 2.9 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-45
SGLFW2-45A380AS Model Line: SGLFW2 | Force: 560 N (peak 1680) | Current: 8.7 Arms | Mass: 5.5 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-45
SGLFW2-45A380AT Model Line: SGLFW2 | Force: 560 N (peak 1680) | Current: 8.7 Arms | Mass: 5.5 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-45
SGLFW2-90A200AS Model Line: SGLFW2 | Force: 560 N (peak 1680) | Current: 7.2 Arms | Mass: 5.3 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-90
SGLFW2-90A200AT Model Line: SGLFW2 | Force: 560 N (peak 1680) | Current: 7.2 Arms | Mass: 5.3 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-90
SGLFW2-90A380AS Model Line: SGLFW2 | Force: 1120 N (peak 3360) | Current: 14.4 Arms | Mass: 10.1 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-90
SGLFW2-90A380AT Model Line: SGLFW2 | Force: 1120 N (peak 3360) | Current: 14.4 Arms | Mass: 10.1 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-90
SGLFW2-90A560AS Model Line: SGLFW2 | Force: 1680 N (peak 5040) | Current: 21.6 Arms | Mass: 14.9 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-90
SGLFW2-90A560AT Model Line: SGLFW2 | Force: 1680 N (peak 5040) | Current: 21.6 Arms | Mass: 14.9 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-90
SGLFW2-1DA380AS Model Line: SGLFW2 | Force: 1680 N (peak 5040) | Current: 14.4 Arms | Mass: 14.6 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-1D
SGLFW2-1DA380AT Model Line: SGLFW2 | Force: 1680 N (peak 5040) | Current: 14.4 Arms | Mass: 14.6 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-1D
SGLFW2-1DA560AS Model Line: SGLFW2 | Force: 2520 N (peak 7560) | Current: 21.6 Arms | Mass: 21.5 kg | Sensor: Hall sensor + thermal | Track: SGLFM2-1D
SGLFW2-1DA560AT Model Line: SGLFW2 | Force: 2520 N (peak 7560) | Current: 21.6 Arms | Mass: 21.5 kg | Sensor: No Hall sensor, thermal | Track: SGLFM2-1D
SGLFW-20A090AP Model Line: SGLFW | Force: 25 N (peak 86) | Current: 0.70 Arms | Mass: 0.70 kg | Sensor: Hall sensor | Track: SGLFM-20
SGLFW-20A090A Model Line: SGLFW | Force: 25 N (peak 86) | Current: 0.70 Arms | Mass: 0.70 kg | Sensor: No Hall sensor | Track: SGLFM-20
SGLFW-20A120AP Model Line: SGLFW | Force: 40 N (peak 125) | Current: 0.80 Arms | Mass: 0.90 kg | Sensor: Hall sensor | Track: SGLFM-20
SGLFW-20A120A Model Line: SGLFW | Force: 40 N (peak 125) | Current: 0.80 Arms | Mass: 0.90 kg | Sensor: No Hall sensor | Track: SGLFM-20
SGLFW-35A120AP Model Line: SGLFW | Force: 80 N (peak 220) | Current: 1.4 Arms | Mass: 1.3 kg | Sensor: Hall sensor | Track: SGLFM-35
SGLFW-35A120APD Model Line: SGLFW | Force: 80 N (peak 220) | Current: 1.4 Arms | Mass: 1.3 kg | Sensor: Hall sensor, Interconnectron conn. | Track: SGLFM-35
SGLFW-35A120A Model Line: SGLFW | Force: 80 N (peak 220) | Current: 1.4 Arms | Mass: 1.3 kg | Sensor: No Hall sensor | Track: SGLFM-35
SGLFW-35A120AD Model Line: SGLFW | Force: 80 N (peak 220) | Current: 1.4 Arms | Mass: 1.3 kg | Sensor: No Hall sensor, Interconnectron conn. | Track: SGLFM-35
SGLFW-35A230AP Model Line: SGLFW | Force: 160 N (peak 440) | Current: 2.8 Arms | Mass: 2.3 kg | Sensor: Hall sensor | Track: SGLFM-35
SGLFW-35A230APD Model Line: SGLFW | Force: 160 N (peak 440) | Current: 2.8 Arms | Mass: 2.3 kg | Sensor: Hall sensor, Interconnectron conn. | Track: SGLFM-35
SGLFW-35A230A Model Line: SGLFW | Force: 160 N (peak 440) | Current: 2.8 Arms | Mass: 2.3 kg | Sensor: No Hall sensor | Track: SGLFM-35
SGLFW-35A230AD Model Line: SGLFW | Force: 160 N (peak 440) | Current: 2.8 Arms | Mass: 2.3 kg | Sensor: No Hall sensor, Interconnectron conn. | Track: SGLFM-35
SGLFW-50A200BP Model Line: SGLFW | Force: 280 N (peak 600) | Current: 5.0 Arms | Mass: 3.5 kg | Sensor: Hall sensor | Track: SGLFM-50
SGLFW-50A200BPD Model Line: SGLFW | Force: 280 N (peak 600) | Current: 5.0 Arms | Mass: 3.5 kg | Sensor: Hall sensor, Interconnectron conn. | Track: SGLFM-50
SGLFW-50A200B Model Line: SGLFW | Force: 280 N (peak 600) | Current: 5.0 Arms | Mass: 3.5 kg | Sensor: No Hall sensor | Track: SGLFM-50
SGLFW-50A200BD Model Line: SGLFW | Force: 280 N (peak 600) | Current: 5.0 Arms | Mass: 3.5 kg | Sensor: No Hall sensor, Interconnectron conn. | Track: SGLFM-50
SGLFW-50A380BP Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 10.0 Arms | Mass: 6.9 kg | Sensor: Hall sensor | Track: SGLFM-50
SGLFW-50A380BPD Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 10.0 Arms | Mass: 6.9 kg | Sensor: Hall sensor, Interconnectron conn. | Track: SGLFM-50
SGLFW-50A380B Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 10.0 Arms | Mass: 6.9 kg | Sensor: No Hall sensor | Track: SGLFM-50
SGLFW-50A380BD Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 10.0 Arms | Mass: 6.9 kg | Sensor: No Hall sensor, Interconnectron conn. | Track: SGLFM-50
SGLFW-1ZA200BP Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 8.7 Arms | Mass: 6.4 kg | Sensor: Hall sensor | Track: SGLFM-1Z
SGLFW-1ZA200BPD Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 8.7 Arms | Mass: 6.4 kg | Sensor: Hall sensor, Interconnectron conn. | Track: SGLFM-1Z
SGLFW-1ZA200B Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 8.7 Arms | Mass: 6.4 kg | Sensor: No Hall sensor | Track: SGLFM-1Z
SGLFW-1ZA200BD Model Line: SGLFW | Force: 560 N (peak 1200) | Current: 8.7 Arms | Mass: 6.4 kg | Sensor: No Hall sensor, Interconnectron conn. | Track: SGLFM-1Z
SGLFW-1ZA380BP Model Line: SGLFW | Force: 1120 N (peak 2400) | Current: 17.5 Arms | Mass: 12 kg | Sensor: Hall sensor | Track: SGLFM-1Z
SGLFW-1ZA380B Model Line: SGLFW | Force: 1120 N (peak 2400) | Current: 17.5 Arms | Mass: 12 kg | Sensor: No Hall sensor | Track: SGLFM-1Z
