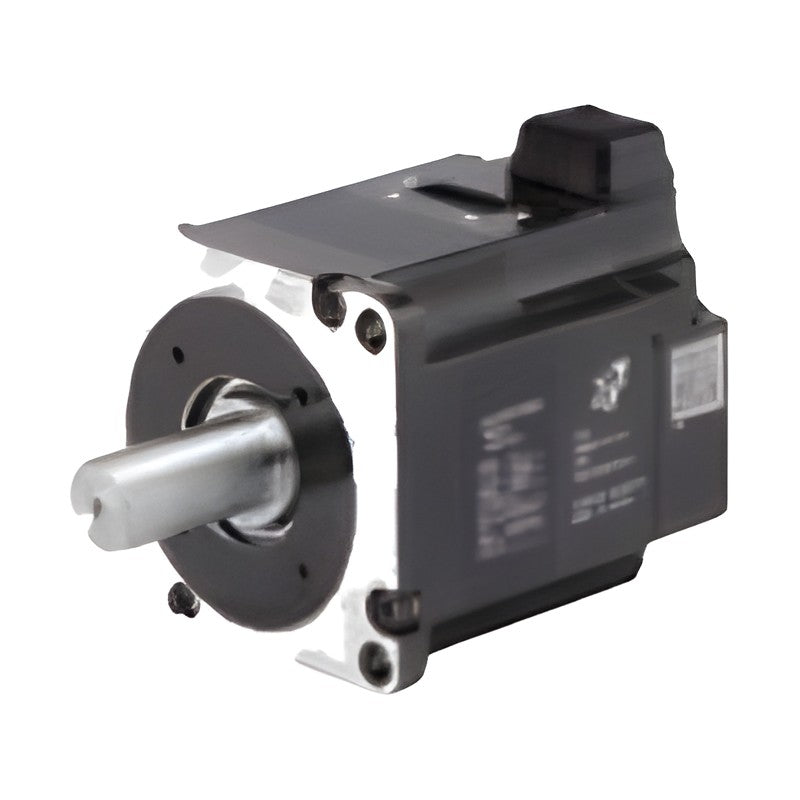

YASKAWA Sigma-7 SGM7A Servo Motors (50 W-7 kW, 200 V)

YASKAWA Sigma-7 SGM7A Servo Motors (50 W-7 kW, 200 V)

The YASKAWA SGM7A is a low-inertia, high-speed Sigma-7 rotary servo motor from 50 W to 7.0 kW with a 24-bit serial encoder.

Key features

  • Rated outputs 50 W to 7.0 kW; 3000 min-1 rated, 6000 min-1 maximum speed
  • 24-bit absolute or 24-bit incremental serial encoder
  • IP67 totally enclosed, self-cooled (7.0 kW: fan-cooled IP22)
  • Shaft ends: straight without key, with key and tap; two flats up to 1.0 kW
  • Without brake or with 24 VDC holding brake (7.0 kW: no brake version)
  • Oil-seal versions (option S/E) available on request

Specifications

Series Sigma-7 SGM7A
Voltage 200 VAC
Rated speed 3000 min-1
Max. speed 6000 min-1
Protection IP67 (7.0 kW: fan-cooled IP22)
Thermal class UL: A, CE: B (1.5 kW+: F)
Ambient temperature 0 to 40 C (to 60 C with derating)
Model key SGM7A-[cap]A[enc]A[shaft][option]
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. M-19, M-23, 34-38, 48, 53
SGM7A-A5A7A21 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7A2C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7A61 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7A6C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7AB1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7ABC Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA21 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA2C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA61 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA6C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFAB1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFABC Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-01A7A21 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7A2C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7A61 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7A6C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7AB1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7ABC Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA21 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA2C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA61 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA6C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFAB1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFABC Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-C2A7A21 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7A2C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7A61 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7A6C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7AB1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7ABC Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA21 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA2C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA61 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA6C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFAB1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFABC Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A21 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A2C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A61 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A6C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7AB1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7ABC Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA21 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA2C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA61 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA6C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFAB1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFABC Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-04A7A21 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7A2C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7A61 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7A6C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7AB1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7ABC Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA21 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA2C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA61 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA6C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFAB1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFABC Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-06A7A21 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06A7A2C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06A7A61 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06A7A6C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06A7AB1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06A7ABC Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA21 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA2C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA61 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA6C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06AFAB1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06AFABC Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A21 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A2C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A61 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A6C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08A7AB1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08A7ABC Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA21 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA2C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA61 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA6C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08AFAB1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08AFABC Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-10A7A21 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10A7A2C Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10A7A61 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10A7A6C Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10A7AB1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10A7ABC Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10AFA21 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10AFA2C Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10AFA61 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10AFA6C Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10AFAB1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10AFABC Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15A7A21 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15A7A2C Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15A7A61 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15A7A6C Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15AFA21 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15AFA2C Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15AFA61 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15AFA6C Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-20A7A21 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20A7A2C Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-20A7A61 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20A7A6C Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-20AFA21 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20AFA2C Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-20AFA61 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20AFA6C Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-25A7A21 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25A7A2C Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-25A7A61 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25A7A6C Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-25AFA21 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25AFA2C Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-25AFA61 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25AFA6C Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30A7A21 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30A7A2C Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30A7A61 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30A7A6C Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30AFA21 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30AFA2C Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30AFA61 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30AFA6C Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-40A7A21 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40A7A2C Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-40A7A61 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40A7A6C Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-40AFA21 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40AFA2C Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-40AFA61 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40AFA6C Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50A7A21 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50A7A2C Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50A7A61 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50A7A6C Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50AFA21 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50AFA2C Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50AFA61 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50AFA6C Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-70A7A21 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-550A
SGM7A-70A7A61 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-550A
SGM7A-70AFA21 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-550A
SGM7A-70AFA61 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-550A
Servo MotorsYASKAWA
148 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7 SGM7A Servo Motors (50 W-7 kW, 200 V)

Brand YASKAWA·Servo Motors

Available part numbers (148)

SGM7A-A5A7A21, SGM7A-A5A7A2C, SGM7A-A5A7A61, SGM7A-A5A7A6C, SGM7A-A5A7AB1, SGM7A-A5A7ABC, SGM7A-A5AFA21, SGM7A-A5AFA2C, SGM7A-A5AFA61, SGM7A-A5AFA6C + 138 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGM7A-A5A7A21Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7A2COutput: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7A61Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7A6COutput: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7AB1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5A7ABCOutput: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA21Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA2COutput: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA61Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFA6COutput: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFAB1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7A-A5AFABCOutput: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7A-01A7A21Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7A2COutput: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7A61Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7A6COutput: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7AB1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01A7ABCOutput: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA21Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA2COutput: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA61Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFA6COutput: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFAB1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7A-01AFABCOutput: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7A-C2A7A21Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7A2COutput: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7A61Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7A6COutput: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7AB1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2A7ABCOutput: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA21Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA2COutput: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA61Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFA6COutput: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFAB1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-C2AFABCOutput: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A21Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A2COutput: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A61Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7A6COutput: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7AB1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02A7ABCOutput: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA21Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA2COutput: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA61Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFA6COutput: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFAB1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-02AFABCOutput: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7A-04A7A21Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7A2COutput: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7A61Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7A6COutput: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7AB1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04A7ABCOutput: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA21Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA2COutput: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA61Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFA6COutput: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFAB1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-04AFABCOutput: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7A-06A7A21Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06A7A2COutput: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06A7A61Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06A7A6COutput: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06A7AB1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06A7ABCOutput: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA21Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA2COutput: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA61Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06AFA6COutput: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-06AFAB1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-06AFABCOutput: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A21Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A2COutput: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A61Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08A7A6COutput: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08A7AB1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08A7ABCOutput: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA21Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA2COutput: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA61Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08AFA6COutput: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-08AFAB1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7A-08AFABCOutput: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7A-10A7A21Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10A7A2COutput: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10A7A61Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10A7A6COutput: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10A7AB1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10A7ABCOutput: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10AFA21Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10AFA2COutput: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10AFA61Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10AFA6COutput: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-10AFAB1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-10AFABCOutput: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15A7A21Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15A7A2COutput: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15A7A61Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15A7A6COutput: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15AFA21Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15AFA2COutput: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-15AFA61Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-120A
SGM7A-15AFA6COutput: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-120A
SGM7A-20A7A21Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20A7A2COutput: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-20A7A61Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20A7A6COutput: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-20AFA21Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20AFA2COutput: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-20AFA61Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-180A
SGM7A-20AFA6COutput: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-180A
SGM7A-25A7A21Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25A7A2COutput: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-25A7A61Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25A7A6COutput: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-25AFA21Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25AFA2COutput: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-25AFA61Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-25AFA6COutput: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30A7A21Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30A7A2COutput: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30A7A61Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30A7A6COutput: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30AFA21Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30AFA2COutput: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-30AFA61Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-200A
SGM7A-30AFA6COutput: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-200A
SGM7A-40A7A21Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40A7A2COutput: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-40A7A61Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40A7A6COutput: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-40AFA21Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40AFA2COutput: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-40AFA61Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-40AFA6COutput: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50A7A21Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50A7A2COutput: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50A7A61Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50A7A6COutput: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50AFA21Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50AFA2COutput: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-50AFA61Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-330A
SGM7A-50AFA6COutput: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-330A
SGM7A-70A7A21Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-550A
SGM7A-70A7A61Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-550A
SGM7A-70AFA21Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-550A
SGM7A-70AFA61Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-550A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
