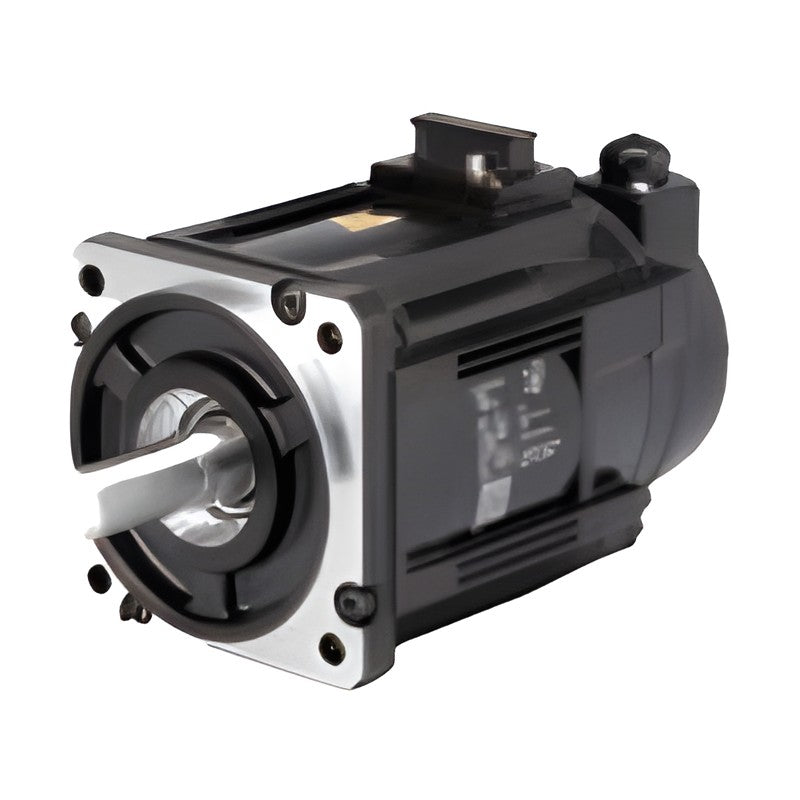

YASKAWA Sigma-7 SGM7G Servo Motors (300 W-15 kW, 200 V)

YASKAWA Sigma-7 SGM7G Servo Motors (300 W-15 kW, 200 V)

The YASKAWA Sigma-7 SGM7G is a medium-inertia, high-torque 200 V rotary servo motor rated 300 W to 15 kW with a 24-bit serial encoder.

Key features

  • Medium inertia, high torque; rated speed 1500 min-1, max. 3000 min-1 (2000 min-1 for 11 and 15 kW)
  • Totally enclosed, self-cooled, IP67 (excluding shaft opening)
  • 24-bit absolute (7) or 24-bit incremental (F) serial encoder
  • Optional 24 VDC holding brake (option C); oil seal versions (S, E) on request
  • SGM7G-30A combined with SGD7S-200A is rated 2.4 kW

Specifications

Series Sigma-7 SGM7G (medium inertia, high torque)
Voltage 200 VAC
Rated Speed 1500 min-1
Protection IP67, totally enclosed, self-cooled
Brake (option C) 24 VDC holding brake
Design Revision A
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 110-126
SGM7G-03A7A21 Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-03A7A2C Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-03A7A61 Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-03A7A6C Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-03AFA21 Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-03AFA2C Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-03AFA61 Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-03AFA6C Output: 0.3 kW | Torque: 1.96 N·m (peak 5.88) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-05A7A21 Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-05A7A2C Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-05A7A61 Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-05A7A6C Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-05AFA21 Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-05AFA2C Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-05AFA61 Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-05AFA6C Output: 0.45 kW | Torque: 2.86 N·m (peak 8.92) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-09A7A21 Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-09A7A2C Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-09A7A61 Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-09A7A6C Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-09AFA21 Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-09AFA2C Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-09AFA61 Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-09AFA6C Output: 0.85 kW | Torque: 5.39 N·m (peak 14.2) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-13A7A21 Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-13A7A2C Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-13A7A61 Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-13A7A6C Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-13AFA21 Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-13AFA2C Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-13AFA61 Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-13AFA6C Output: 1.3 kW | Torque: 8.34 N·m (peak 23.3) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-20A7A21 Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-20A7A2C Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-20A7A61 Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-20A7A6C Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-20AFA21 Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-20AFA2C Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-20AFA61 Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-20AFA6C Output: 1.8 kW | Torque: 11.5 N·m (peak 28.7) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-30A7A21 Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-30A7A2C Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-30A7A61 Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-30A7A6C Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-30AFA21 Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-30AFA2C Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-30AFA61 Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-30AFA6C Output: 2.9 kW | Torque: 18.6 N·m (peak 54.0) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-44A7A21 Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-44A7A2C Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-44A7A61 Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-44A7A6C Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-44AFA21 Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-44AFA2C Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-44AFA61 Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-44AFA6C Output: 4.4 kW | Torque: 28.4 N·m (peak 71.6) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-55A7A21 Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-55A7A2C Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-55A7A61 Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-55A7A6C Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-55AFA21 Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-55AFA2C Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-55AFA61 Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-55AFA6C Output: 5.5 kW | Torque: 35.0 N·m (peak 102) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-75A7A21 Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-75A7A2C Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-75A7A61 Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-75A7A6C Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-75AFA21 Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-75AFA2C Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-75AFA61 Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-75AFA6C Output: 7.5 kW | Torque: 48.0 N·m (peak 119) | Max. Speed: 3000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-1AA7A21 Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-1AA7A2C Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-1AA7A61 Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-1AA7A6C Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-1AAFA21 Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-1AAFA2C Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-1AAFA61 Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-1AAFA6C Output: 11 kW | Torque: 70.0 N·m (peak 175) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-1EA7A21 Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7G-1EA7A2C Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-1EA7A61 Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7G-1EA7A6C Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7G-1EAFA21 Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7G-1EAFA2C Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7G-1EAFA61 Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7G-1EAFA6C Output: 15 kW | Torque: 95.4 N·m (peak 224) | Max. Speed: 2000 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
