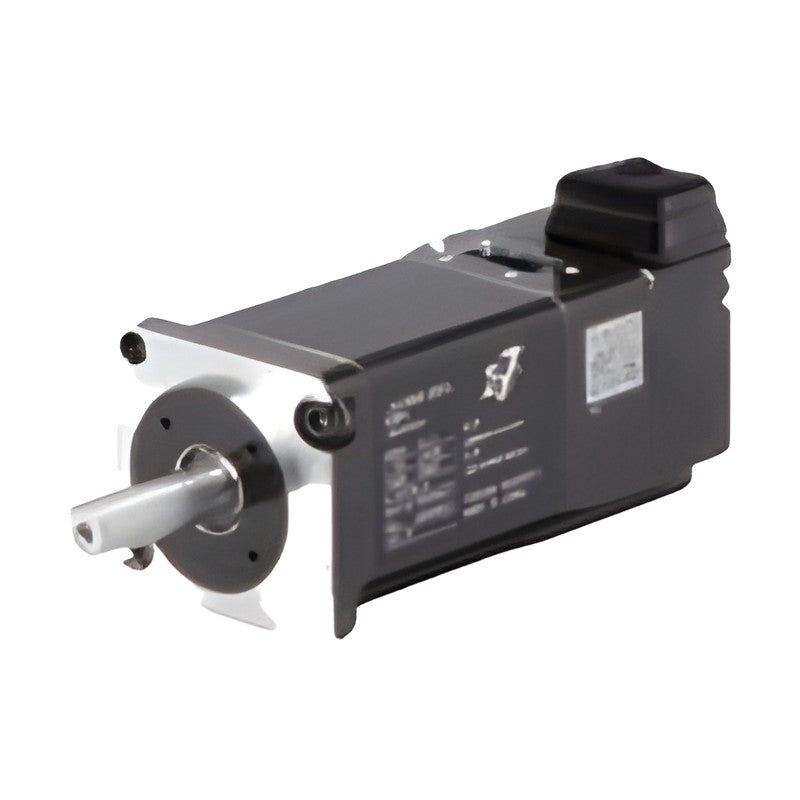

YASKAWA Sigma-7 SGM7J Servo Motors (50-750 W, 200 V)

YASKAWA Sigma-7 SGM7J Servo Motors (50-750 W, 200 V)

The YASKAWA SGM7J is a medium-inertia, high-speed Sigma-7 rotary servo motor from 50 to 750 W with a 24-bit serial encoder.

Key features

  • Rated outputs 50 W to 750 W; 3000 min-1 rated, 6000 min-1 maximum speed
  • 24-bit absolute or 24-bit incremental serial encoder (16,777,216 pulses/rev)
  • IP67 totally enclosed, self-cooled (excluding shaft opening, with dedicated cables)
  • Shaft ends: straight without key, straight with key and tap, or two flats
  • Without brake or with 24 VDC holding brake; oil-seal versions (option S/E) available on request
  • Instantaneous max. torque approx. 350% of rated torque

Specifications

Series Sigma-7 SGM7J
Voltage 200 VAC
Rated speed 3000 min-1
Max. speed 6000 min-1
Protection Totally enclosed, self-cooled IP67
Thermal class UL: A, CE: B
Ambient temperature 0 to 40 C (to 60 C with derating)
Model key SGM7J-[cap]A[enc]A[shaft][option]
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. M-19, M-23, 14-16, 26
SGM7J-A5A7A21 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5A7A2C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5A7A61 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5A7A6C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5A7AB1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5A7ABC Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5AFA21 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5AFA2C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5AFA61 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5AFA6C Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5AFAB1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R70A/R70F
SGM7J-A5AFABC Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R70A/R70F
SGM7J-01A7A21 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01A7A2C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01A7A61 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01A7A6C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01A7AB1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01A7ABC Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01AFA21 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01AFA2C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01AFA61 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01AFA6C Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01AFAB1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-R90A/R90F
SGM7J-01AFABC Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-R90A/R90F
SGM7J-C2A7A21 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2A7A2C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2A7A61 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2A7A6C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2A7AB1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2A7ABC Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2AFA21 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2AFA2C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2AFA61 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2AFA6C Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2AFAB1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-C2AFABC Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02A7A21 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02A7A2C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02A7A61 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02A7A6C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02A7AB1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02A7ABC Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02AFA21 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02AFA2C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02AFA61 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02AFA6C Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02AFAB1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-02AFABC Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-1R6A/2R1F
SGM7J-04A7A21 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04A7A2C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04A7A61 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04A7A6C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04A7AB1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04A7ABC Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04AFA21 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04AFA2C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04AFA61 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04AFA6C Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04AFAB1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-04AFABC Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-2R8A/2R8F
SGM7J-06A7A21 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-06A7A2C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-06A7A61 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-06A7A6C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-06A7AB1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-06A7ABC Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-06AFA21 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-06AFA2C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-06AFA61 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-06AFA6C Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-06AFAB1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-06AFABC Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-08A7A21 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-08A7A2C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-08A7A61 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-08A7A6C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-08A7AB1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-08A7ABC Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit absolute | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-08AFA21 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-08AFA2C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-08AFA61 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-08AFA6C Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
SGM7J-08AFAB1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: None | SERVOPACK: SGD7S-5R5A
SGM7J-08AFABC Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/max) | Encoder: 24-bit incremental | Shaft: Straight, two flats | Brake: 24 VDC holding brake | SERVOPACK: SGD7S-5R5A
Servo MotorsYASKAWA
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7 SGM7J Servo Motors (50-750 W, 200 V)

Brand YASKAWA·Servo Motors

Available part numbers (84)

SGM7J-A5A7A21, SGM7J-A5A7A2C, SGM7J-A5A7A61, SGM7J-A5A7A6C, SGM7J-A5A7AB1, SGM7J-A5A7ABC, SGM7J-A5AFA21, SGM7J-A5AFA2C, SGM7J-A5AFA61, SGM7J-A5AFA6C + 74 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
