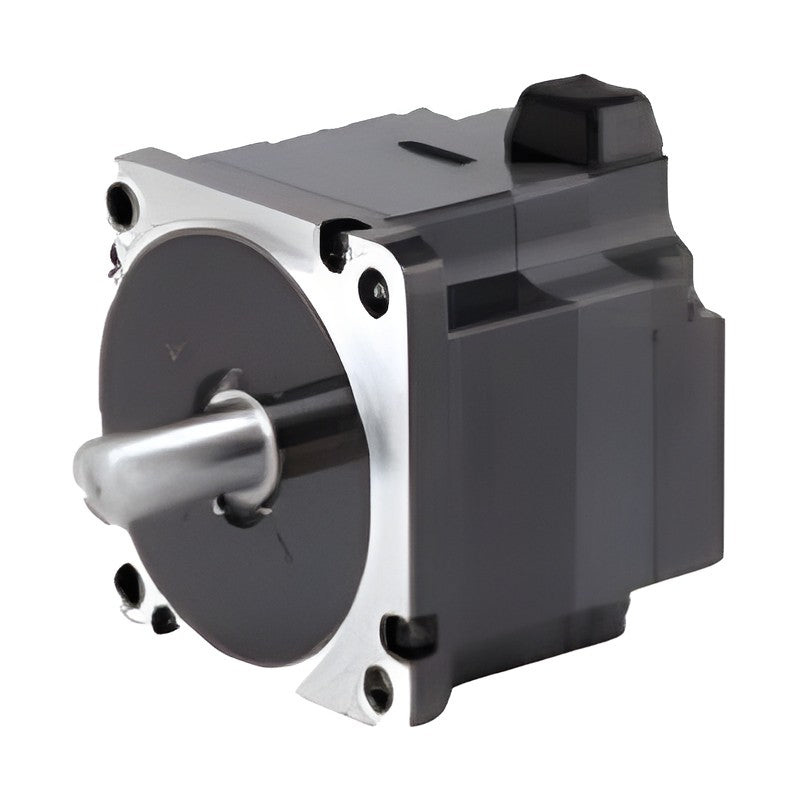

YASKAWA Sigma-7 SGM7P Servo Motors with HDS Gearhead (100 W-1.5 kW)

YASKAWA Sigma-7 SGM7P Servo Motors with HDS Gearhead (100 W-1.5 kW)

The YASKAWA Sigma-7 SGM7P gearmotor combines the flat 200 V SGM7P servo motor (100 W to 1.5 kW) with an integrated HDS precision planetary gearhead.

Key features

  • Integrated precision gearhead HDS (lubricated), ratios 1/5, 1/11, 1/21 and 1/33
  • Lost motion 3 arc-min or less; IP55 (excluding shaft opening), design revision A
  • Output: flange (0), straight shaft without key (2) or straight shaft with key and tap (6)
  • 24-bit absolute (7) or 24-bit incremental (F) serial encoder
  • Optional 24 VDC holding brake (option C)

Specifications

Series Sigma-7 SGM7P with gearhead
Voltage 200 VAC
Gearhead Precision gearhead HDS, grease lubricated
Lost Motion 3 arc-min max.
Protection IP55 (excluding shaft opening)
Motor Speed 3000 min-1 rated / 6000 min-1 max.
Design Revision A
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 92-109
SGM7P-01A7AH101 Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AH10C Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AH121 Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AH12C Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AH161 Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AH16C Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01A7AHB01 Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AHB0C Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AHB21 Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AHB2C Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AHB61 Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AHB6C Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01A7AHC01 Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AHC0C Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AHC21 Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AHC2C Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AHC61 Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AHC6C Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01A7AH701 Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AH70C Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AH721 Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AH72C Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AH761 Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AH76C Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAH101 Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAH10C Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAH121 Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAH12C Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAH161 Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAH16C Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAHB01 Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAHB0C Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAHB21 Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAHB2C Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAHB61 Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAHB6C Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAHC01 Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAHC0C Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAHC21 Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAHC2C Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAHC61 Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAHC6C Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAH701 Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAH70C Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAH721 Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAH72C Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAH761 Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAH76C Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AH101 Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AH10C Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AH121 Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AH12C Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AH161 Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AH16C Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AHB01 Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AHB0C Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AHB21 Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AHB2C Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AHB61 Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AHB6C Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AHC01 Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AHC0C Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AHC21 Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AHC2C Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AHC61 Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AHC6C Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AH701 Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AH70C Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AH721 Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AH72C Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AH761 Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AH76C Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAH101 Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAH10C Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAH121 Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAH12C Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAH161 Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAH16C Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAHB01 Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAHB0C Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAHB21 Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAHB2C Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAHB61 Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAHB6C Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAHC01 Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAHC0C Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAHC21 Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAHC2C Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAHC61 Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAHC6C Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAH701 Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAH70C Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAH721 Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAH72C Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAH761 Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAH76C Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AH101 Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AH10C Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AH121 Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AH12C Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AH161 Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AH16C Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AHB01 Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AHB0C Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AHB21 Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AHB2C Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AHB61 Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AHB6C Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AHC01 Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AHC0C Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AHC21 Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AHC2C Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AHC61 Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AHC6C Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AH701 Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AH70C Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AH721 Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AH72C Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AH761 Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AH76C Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAH101 Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAH10C Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAH121 Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAH12C Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAH161 Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAH16C Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAHB01 Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAHB0C Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAHB21 Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAHB2C Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAHB61 Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAHB6C Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAHC01 Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAHC0C Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAHC21 Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAHC2C Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAHC61 Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAHC6C Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAH701 Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAH70C Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAH721 Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAH72C Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAH761 Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAH76C Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AH101 Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AH10C Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AH121 Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AH12C Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AH161 Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AH16C Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AHB01 Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AHB0C Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AHB21 Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AHB2C Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AHB61 Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AHB6C Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AHC01 Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AHC0C Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AHC21 Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AHC2C Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AHC61 Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AHC6C Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AH701 Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AH70C Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AH721 Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AH72C Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AH761 Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AH76C Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAH101 Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAH10C Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAH121 Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAH12C Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAH161 Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAH16C Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAHB01 Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAHB0C Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAHB21 Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAHB2C Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAHB61 Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAHB6C Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAHC01 Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAHC0C Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAHC21 Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAHC2C Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAHC61 Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAHC6C Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAH701 Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAH70C Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAH721 Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAH72C Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAH761 Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAH76C Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AH101 Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AH10C Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AH121 Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AH12C Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AH161 Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AH16C Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AHB01 Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AHB0C Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AHB21 Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AHB2C Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AHB61 Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AHB6C Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AHC01 Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AHC0C Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AHC21 Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AHC2C Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AHC61 Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AHC6C Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AH701 Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AH70C Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AH721 Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AH72C Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AH761 Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AH76C Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAH101 Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAH10C Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAH121 Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAH12C Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAH161 Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAH16C Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAHB01 Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAHB0C Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAHB21 Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAHB2C Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAHB61 Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAHB6C Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAHC01 Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAHC0C Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAHC21 Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAHC2C Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAHC61 Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAHC6C Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAH701 Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAH70C Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAH721 Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAH72C Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAH761 Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAH76C Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
Servo MotorsYASKAWA
240 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7 SGM7P Servo Motors with HDS Gearhead (100 W-1.5 kW)

Brand YASKAWA·Servo Motors

Available part numbers (240)

SGM7P-01A7AH101, SGM7P-01A7AH10C, SGM7P-01A7AH121, SGM7P-01A7AH12C, SGM7P-01A7AH161, SGM7P-01A7AH16C, SGM7P-01A7AHB01, SGM7P-01A7AHB0C, SGM7P-01A7AHB21, SGM7P-01A7AHB2C + 230 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGM7P-01A7AH101Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AH10CMotor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AH121Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AH12CMotor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AH161Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AH16CMotor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01A7AHB01Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AHB0CMotor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AHB21Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AHB2CMotor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AHB61Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AHB6CMotor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01A7AHC01Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AHC0CMotor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AHC21Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AHC2CMotor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AHC61Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AHC6CMotor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01A7AH701Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-01A7AH70CMotor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01A7AH721Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-01A7AH72CMotor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01A7AH761Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01A7AH76CMotor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAH101Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAH10CMotor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAH121Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAH12CMotor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAH161Motor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAH16CMotor: 100 W | Ratio: 1/5 | Output: 1.05 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAHB01Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAHB0CMotor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAHB21Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAHB2CMotor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAHB61Motor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAHB6CMotor: 100 W | Ratio: 1/11 | Output: 2.52 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAHC01Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAHC0CMotor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAHC21Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAHC2CMotor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAHC61Motor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAHC6CMotor: 100 W | Ratio: 1/21 | Output: 5.34 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-01AFAH701Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-01AFAH70CMotor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-01AFAH721Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-01AFAH72CMotor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-01AFAH761Motor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-01AFAH76CMotor: 100 W | Ratio: 1/33 | Output: 6.82 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AH101Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AH10CMotor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AH121Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AH12CMotor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AH161Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AH16CMotor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AHB01Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AHB0CMotor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AHB21Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AHB2CMotor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AHB61Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AHB6CMotor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AHC01Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AHC0CMotor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AHC21Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AHC2CMotor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AHC61Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AHC6CMotor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02A7AH701Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-02A7AH70CMotor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02A7AH721Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-02A7AH72CMotor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02A7AH761Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02A7AH76CMotor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAH101Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAH10CMotor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAH121Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAH12CMotor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAH161Motor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAH16CMotor: 200 W | Ratio: 1/5 | Output: 2.39 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAHB01Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAHB0CMotor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAHB21Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAHB2CMotor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAHB61Motor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAHB6CMotor: 200 W | Ratio: 1/11 | Output: 5.74 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAHC01Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAHC0CMotor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAHC21Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAHC2CMotor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAHC61Motor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAHC6CMotor: 200 W | Ratio: 1/21 | Output: 10.2 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-02AFAH701Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-02AFAH70CMotor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-02AFAH721Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-02AFAH72CMotor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-02AFAH761Motor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-02AFAH76CMotor: 200 W | Ratio: 1/33 | Output: 17.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AH101Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AH10CMotor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AH121Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AH12CMotor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AH161Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AH16CMotor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AHB01Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AHB0CMotor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AHB21Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AHB2CMotor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AHB61Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AHB6CMotor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AHC01Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AHC0CMotor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AHC21Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AHC2CMotor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AHC61Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AHC6CMotor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04A7AH701Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-04A7AH70CMotor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04A7AH721Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-04A7AH72CMotor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04A7AH761Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04A7AH76CMotor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAH101Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAH10CMotor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAH121Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAH12CMotor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAH161Motor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAH16CMotor: 400 W | Ratio: 1/5 | Output: 5.33 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAHB01Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAHB0CMotor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAHB21Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAHB2CMotor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAHB61Motor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAHB6CMotor: 400 W | Ratio: 1/11 | Output: 11.5 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAHC01Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAHC0CMotor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAHC21Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAHC2CMotor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAHC61Motor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAHC6CMotor: 400 W | Ratio: 1/21 | Output: 22.9 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-04AFAH701Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-04AFAH70CMotor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-04AFAH721Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-04AFAH72CMotor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-04AFAH761Motor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-04AFAH76CMotor: 400 W | Ratio: 1/33 | Output: 34.0 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AH101Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AH10CMotor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AH121Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AH12CMotor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AH161Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AH16CMotor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AHB01Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AHB0CMotor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AHB21Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AHB2CMotor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AHB61Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AHB6CMotor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AHC01Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AHC0CMotor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AHC21Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AHC2CMotor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AHC61Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AHC6CMotor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08A7AH701Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-08A7AH70CMotor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08A7AH721Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-08A7AH72CMotor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08A7AH761Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08A7AH76CMotor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAH101Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAH10CMotor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAH121Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAH12CMotor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAH161Motor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAH16CMotor: 750 W | Ratio: 1/5 | Output: 10.0 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAHB01Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAHB0CMotor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAHB21Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAHB2CMotor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAHB61Motor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAHB6CMotor: 750 W | Ratio: 1/11 | Output: 23.1 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAHC01Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAHC0CMotor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAHC21Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAHC2CMotor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAHC61Motor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAHC6CMotor: 750 W | Ratio: 1/21 | Output: 42.1 N·m at 143 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-08AFAH701Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-08AFAH70CMotor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-08AFAH721Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-08AFAH72CMotor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-08AFAH761Motor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-08AFAH76CMotor: 750 W | Ratio: 1/33 | Output: 69.3 N·m at 91 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AH101Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AH10CMotor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AH121Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AH12CMotor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AH161Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AH16CMotor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AHB01Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AHB0CMotor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AHB21Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AHB2CMotor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AHB61Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AHB6CMotor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AHC01Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AHC0CMotor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AHC21Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AHC2CMotor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AHC61Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AHC6CMotor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15A7AH701Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: No brake
SGM7P-15A7AH70CMotor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15A7AH721Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: No brake
SGM7P-15A7AH72CMotor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15A7AH761Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15A7AH76CMotor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit absolute | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAH101Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAH10CMotor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAH121Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAH12CMotor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAH161Motor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAH16CMotor: 1.5 kW | Ratio: 1/5 | Output: 19.1 N·m at 600 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAHB01Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAHB0CMotor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAHB21Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAHB2CMotor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAHB61Motor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAHB6CMotor: 1.5 kW | Ratio: 1/11 | Output: 45.6 N·m at 273 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAHC01Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAHC0CMotor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAHC21Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAHC2CMotor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAHC61Motor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAHC6CMotor: 1.5 kW | Ratio: 1/21 | Output: 87.1 N·m at 95 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake
SGM7P-15AFAH701Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: No brake
SGM7P-15AFAH70CMotor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Flange output | Brake: 24 VDC holding brake
SGM7P-15AFAH721Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: No brake
SGM7P-15AFAH72CMotor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, no key | Brake: 24 VDC holding brake
SGM7P-15AFAH761Motor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: No brake
SGM7P-15AFAH76CMotor: 1.5 kW | Ratio: 1/33 | Output: 142 N·m at 60 min-1 | Encoder: 24-bit incremental | Shaft: Straight, key and tap | Brake: 24 VDC holding brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
