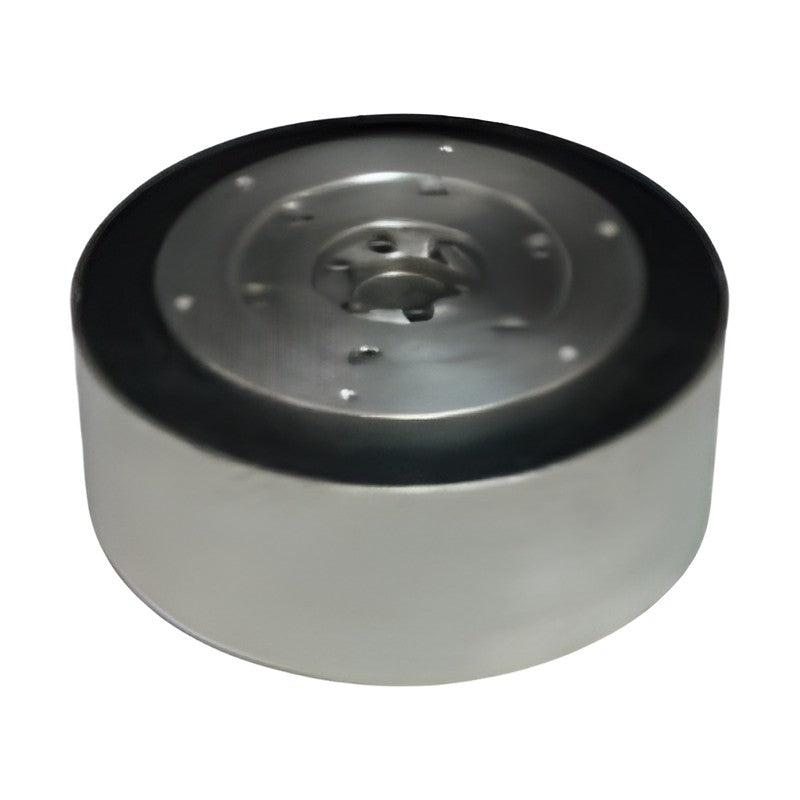

YASKAWA Sigma-7 SGMCS Direct Drive Servo Motors (2-200 N·m)

YASKAWA Sigma-7 SGMCS Direct Drive Servo Motors (2-200 N·m)

The YASKAWA Sigma-7 SGMCS direct drive servo motor covers 2 to 35 N·m in small-capacity coreless and 45 to 200 N·m in medium-capacity core-type inner-rotor designs.

Key features

  • Small-capacity coreless inner rotor 2-35 N·m (frames B/C/D/E, dia. 135-290 mm)
  • Medium-capacity core-type inner rotor 45-200 N·m (frames M/N, dia. 280/360 mm)
  • 20-bit single-turn absolute (3) or 20-bit incremental (D) encoder
  • Flange 1 or 4 (cable lead) for small frames; flange 1 (load side) or 3 (non-load side) for M/N
  • Design revision follows frame: C for B/C/D, B for E, A for M/N; no holding brake available

Specifications

Series Sigma-7 SGMCS (inner rotor)
Voltage 200 VAC
Holding Brake Not available
Option 1 (no option)
Small Frames IP42, coreless, 2-35 N·m
Medium Frames Core type, 45-200 N·m
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 164-182
SGMCS-02B3C11 Torque: 2.00 N·m (peak 6.00) | Output: 42 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-02B3C41 Torque: 2.00 N·m (peak 6.00) | Output: 42 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-02BDC11 Torque: 2.00 N·m (peak 6.00) | Output: 42 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-02BDC41 Torque: 2.00 N·m (peak 6.00) | Output: 42 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-05B3C11 Torque: 5.00 N·m (peak 15.0) | Output: 105 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-05B3C41 Torque: 5.00 N·m (peak 15.0) | Output: 105 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-05BDC11 Torque: 5.00 N·m (peak 15.0) | Output: 105 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-05BDC41 Torque: 5.00 N·m (peak 15.0) | Output: 105 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-07B3C11 Torque: 7.00 N·m (peak 21.0) | Output: 147 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-07B3C41 Torque: 7.00 N·m (peak 21.0) | Output: 147 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-07BDC11 Torque: 7.00 N·m (peak 21.0) | Output: 147 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-07BDC41 Torque: 7.00 N·m (peak 21.0) | Output: 147 W | Speed: 200/500 min-1 rated/max | Frame: dia. 135 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-04C3C11 Torque: 4.00 N·m (peak 12.0) | Output: 84 W | Speed: 200/500 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-04C3C41 Torque: 4.00 N·m (peak 12.0) | Output: 84 W | Speed: 200/500 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-04CDC11 Torque: 4.00 N·m (peak 12.0) | Output: 84 W | Speed: 200/500 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-04CDC41 Torque: 4.00 N·m (peak 12.0) | Output: 84 W | Speed: 200/500 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-10C3C11 Torque: 10.0 N·m (peak 30.0) | Output: 209 W | Speed: 200/400 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-10C3C41 Torque: 10.0 N·m (peak 30.0) | Output: 209 W | Speed: 200/400 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-10CDC11 Torque: 10.0 N·m (peak 30.0) | Output: 209 W | Speed: 200/400 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-10CDC41 Torque: 10.0 N·m (peak 30.0) | Output: 209 W | Speed: 200/400 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-14C3C11 Torque: 14.0 N·m (peak 42.0) | Output: 293 W | Speed: 200/300 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-14C3C41 Torque: 14.0 N·m (peak 42.0) | Output: 293 W | Speed: 200/300 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-14CDC11 Torque: 14.0 N·m (peak 42.0) | Output: 293 W | Speed: 200/300 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-14CDC41 Torque: 14.0 N·m (peak 42.0) | Output: 293 W | Speed: 200/300 min-1 rated/max | Frame: dia. 175 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-08D3C11 Torque: 8.00 N·m (peak 24.0) | Output: 168 W | Speed: 200/500 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-08D3C41 Torque: 8.00 N·m (peak 24.0) | Output: 168 W | Speed: 200/500 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-08DDC11 Torque: 8.00 N·m (peak 24.0) | Output: 168 W | Speed: 200/500 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-08DDC41 Torque: 8.00 N·m (peak 24.0) | Output: 168 W | Speed: 200/500 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-17D3C11 Torque: 17.0 N·m (peak 51.0) | Output: 356 W | Speed: 200/350 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-17D3C41 Torque: 17.0 N·m (peak 51.0) | Output: 356 W | Speed: 200/350 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-17DDC11 Torque: 17.0 N·m (peak 51.0) | Output: 356 W | Speed: 200/350 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-17DDC41 Torque: 17.0 N·m (peak 51.0) | Output: 356 W | Speed: 200/350 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-25D3C11 Torque: 25.0 N·m (peak 75.0) | Output: 393 W | Speed: 150/250 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-25D3C41 Torque: 25.0 N·m (peak 75.0) | Output: 393 W | Speed: 150/250 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-25DDC11 Torque: 25.0 N·m (peak 75.0) | Output: 393 W | Speed: 150/250 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-25DDC41 Torque: 25.0 N·m (peak 75.0) | Output: 393 W | Speed: 150/250 min-1 rated/max | Frame: dia. 230 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-16E3B11 Torque: 16.0 N·m (peak 48.0) | Output: 335 W | Speed: 200/500 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-16E3B41 Torque: 16.0 N·m (peak 48.0) | Output: 335 W | Speed: 200/500 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-16EDB11 Torque: 16.0 N·m (peak 48.0) | Output: 335 W | Speed: 200/500 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-16EDB41 Torque: 16.0 N·m (peak 48.0) | Output: 335 W | Speed: 200/500 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-35E3B11 Torque: 35.0 N·m (peak 105) | Output: 550 W | Speed: 150/250 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-35E3B41 Torque: 35.0 N·m (peak 105) | Output: 550 W | Speed: 150/250 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCS-35EDB11 Torque: 35.0 N·m (peak 105) | Output: 550 W | Speed: 150/250 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-35EDB41 Torque: 35.0 N·m (peak 105) | Output: 550 W | Speed: 150/250 min-1 rated/max | Frame: dia. 290 mm | Encoder: 20-bit incremental | Flange: Non-load side, cable lead
SGMCS-45M3A11 Torque: 45.0 N·m (peak 135) | Output: 707 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit single-turn absolute | Flange: Load side
SGMCS-45M3A31 Torque: 45.0 N·m (peak 135) | Output: 707 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-45MDA11 Torque: 45.0 N·m (peak 135) | Output: 707 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit incremental | Flange: Load side
SGMCS-45MDA31 Torque: 45.0 N·m (peak 135) | Output: 707 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-80M3A11 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit single-turn absolute | Flange: Load side
SGMCS-80M3A31 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-80MDA11 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit incremental | Flange: Load side
SGMCS-80MDA31 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-1AM3A11 Torque: 110 N·m (peak 330) | Output: 1730 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit single-turn absolute | Flange: Load side
SGMCS-1AM3A31 Torque: 110 N·m (peak 330) | Output: 1730 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-1AMDA11 Torque: 110 N·m (peak 330) | Output: 1730 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit incremental | Flange: Load side
SGMCS-1AMDA31 Torque: 110 N·m (peak 330) | Output: 1730 W | Speed: 150/300 min-1 rated/max | Frame: dia. 280 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-80N3A11 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit single-turn absolute | Flange: Load side
SGMCS-80N3A31 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-80NDA11 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit incremental | Flange: Load side
SGMCS-80NDA31 Torque: 80.0 N·m (peak 240) | Output: 1260 W | Speed: 150/300 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-1EN3A11 Torque: 150 N·m (peak 450) | Output: 2360 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit single-turn absolute | Flange: Load side
SGMCS-1EN3A31 Torque: 150 N·m (peak 450) | Output: 2360 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-1ENDA11 Torque: 150 N·m (peak 450) | Output: 2360 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit incremental | Flange: Load side
SGMCS-1ENDA31 Torque: 150 N·m (peak 450) | Output: 2360 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit incremental | Flange: Non-load side
SGMCS-2ZN3A11 Torque: 200 N·m (peak 600) | Output: 3140 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit single-turn absolute | Flange: Load side
SGMCS-2ZN3A31 Torque: 200 N·m (peak 600) | Output: 3140 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit single-turn absolute | Flange: Non-load side
SGMCS-2ZNDA11 Torque: 200 N·m (peak 600) | Output: 3140 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit incremental | Flange: Load side
SGMCS-2ZNDA31 Torque: 200 N·m (peak 600) | Output: 3140 W | Speed: 150/250 min-1 rated/max | Frame: dia. 360 mm | Encoder: 20-bit incremental | Flange: Non-load side
Direct Drive Servo MotorsYASKAWA
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7 SGMCS Direct Drive Servo Motors (2-200 N·m)

Brand YASKAWA·Direct Drive Servo Motors

Available part numbers (68)

SGMCS-02B3C11, SGMCS-02B3C41, SGMCS-02BDC11, SGMCS-02BDC41, SGMCS-05B3C11, SGMCS-05B3C41, SGMCS-05BDC11, SGMCS-05BDC41, SGMCS-07B3C11, SGMCS-07B3C41 + 58 more — see full table ↓
