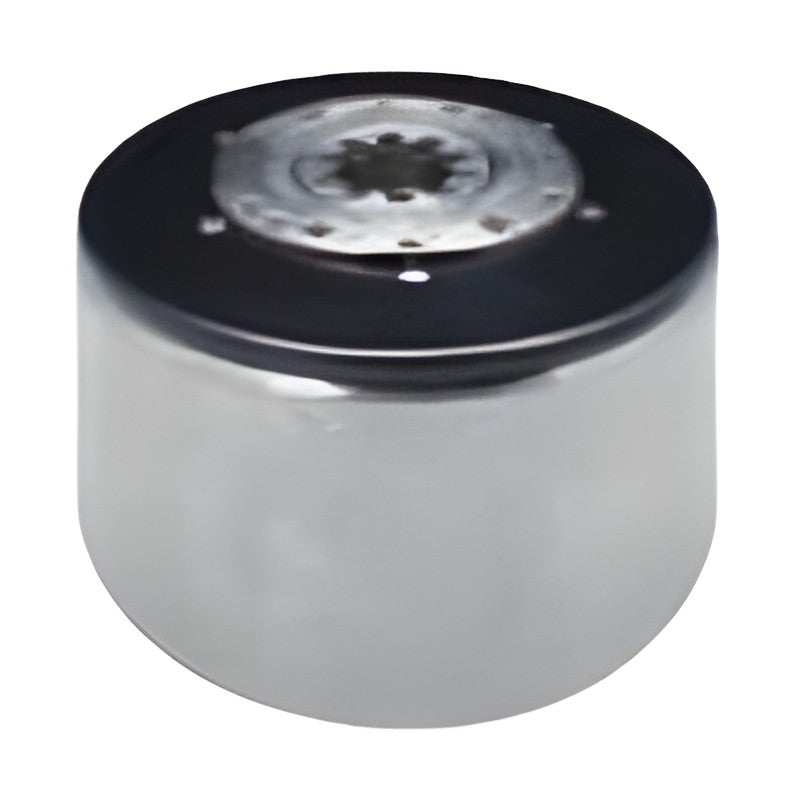

YASKAWA Sigma-7 SGMCV Direct Drive Servo Motors (4-35 N·m)

YASKAWA Sigma-7 SGMCV Direct Drive Servo Motors (4-35 N·m)

The YASKAWA Sigma-7 SGMCV is a small-capacity, core-type inner-rotor direct drive servo motor rated 4 to 35 N·m for 200 V SERVOPACKs.

Key features

  • Gearless direct drive with core-type inner rotor; rated speed 300 min-1
  • Outer diameters 135, 175 and 230 mm (frame codes B, C, D)
  • 22-bit single-turn absolute (E) or 22-bit multi-turn absolute (I) encoder
  • Flange 1 (non-load side) or 4 (non-load side, lead wires drawn from side)
  • No holding brake available; high mechanical precision version (option 5) on request

Specifications

Series Sigma-7 SGMCV (core-type inner rotor)
Voltage 200 VAC
Rated Speed 300 min-1
Holding Brake Not available
Option 1 (no option)
Design Revision A
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 153-163
SGMCV-04BEA11 Torque: 4.00 N·m (peak 12.0) | Output: 126 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-04BEA41 Torque: 4.00 N·m (peak 12.0) | Output: 126 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-04BIA11 Torque: 4.00 N·m (peak 12.0) | Output: 126 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-04BIA41 Torque: 4.00 N·m (peak 12.0) | Output: 126 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-10BEA11 Torque: 10.0 N·m (peak 30.0) | Output: 314 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-10BEA41 Torque: 10.0 N·m (peak 30.0) | Output: 314 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-10BIA11 Torque: 10.0 N·m (peak 30.0) | Output: 314 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-10BIA41 Torque: 10.0 N·m (peak 30.0) | Output: 314 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-14BEA11 Torque: 14.0 N·m (peak 42.0) | Output: 440 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-14BEA41 Torque: 14.0 N·m (peak 42.0) | Output: 440 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-14BIA11 Torque: 14.0 N·m (peak 42.0) | Output: 440 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-14BIA41 Torque: 14.0 N·m (peak 42.0) | Output: 440 W | Max. Speed: 600 min-1 | Frame: dia. 135 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-08CEA11 Torque: 8.00 N·m (peak 24.0) | Output: 251 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-08CEA41 Torque: 8.00 N·m (peak 24.0) | Output: 251 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-08CIA11 Torque: 8.00 N·m (peak 24.0) | Output: 251 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-08CIA41 Torque: 8.00 N·m (peak 24.0) | Output: 251 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-17CEA11 Torque: 17.0 N·m (peak 51.0) | Output: 534 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-17CEA41 Torque: 17.0 N·m (peak 51.0) | Output: 534 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-17CIA11 Torque: 17.0 N·m (peak 51.0) | Output: 534 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-17CIA41 Torque: 17.0 N·m (peak 51.0) | Output: 534 W | Max. Speed: 600 min-1 | Frame: dia. 175 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-25CEA11 Torque: 25.0 N·m (peak 75.0) | Output: 785 W | Max. Speed: 500 min-1 | Frame: dia. 175 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-25CEA41 Torque: 25.0 N·m (peak 75.0) | Output: 785 W | Max. Speed: 500 min-1 | Frame: dia. 175 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-25CIA11 Torque: 25.0 N·m (peak 75.0) | Output: 785 W | Max. Speed: 500 min-1 | Frame: dia. 175 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-25CIA41 Torque: 25.0 N·m (peak 75.0) | Output: 785 W | Max. Speed: 500 min-1 | Frame: dia. 175 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-16DEA11 Torque: 16.0 N·m (peak 48.0) | Output: 503 W | Max. Speed: 600 min-1 | Frame: dia. 230 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-16DEA41 Torque: 16.0 N·m (peak 48.0) | Output: 503 W | Max. Speed: 600 min-1 | Frame: dia. 230 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-16DIA11 Torque: 16.0 N·m (peak 48.0) | Output: 503 W | Max. Speed: 600 min-1 | Frame: dia. 230 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-16DIA41 Torque: 16.0 N·m (peak 48.0) | Output: 503 W | Max. Speed: 600 min-1 | Frame: dia. 230 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
SGMCV-35DEA11 Torque: 35.0 N·m (peak 105) | Output: 1100 W | Max. Speed: 400 min-1 | Frame: dia. 230 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side
SGMCV-35DEA41 Torque: 35.0 N·m (peak 105) | Output: 1100 W | Max. Speed: 400 min-1 | Frame: dia. 230 mm | Encoder: 22-bit single-turn absolute | Flange: Non-load side, cable lead
SGMCV-35DIA11 Torque: 35.0 N·m (peak 105) | Output: 1100 W | Max. Speed: 400 min-1 | Frame: dia. 230 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side
SGMCV-35DIA41 Torque: 35.0 N·m (peak 105) | Output: 1100 W | Max. Speed: 400 min-1 | Frame: dia. 230 mm | Encoder: 22-bit multi-turn absolute | Flange: Non-load side, cable lead
Direct Drive Servo MotorsYASKAWA
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7 SGMCV Direct Drive Servo Motors (4-35 N·m)

Brand YASKAWA·Direct Drive Servo Motors

Available part numbers (32)

SGMCV-04BEA11, SGMCV-04BEA41, SGMCV-04BIA11, SGMCV-04BIA41, SGMCV-10BEA11, SGMCV-10BEA41, SGMCV-10BIA11, SGMCV-10BIA41, SGMCV-14BEA11, SGMCV-14BEA41 + 22 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
