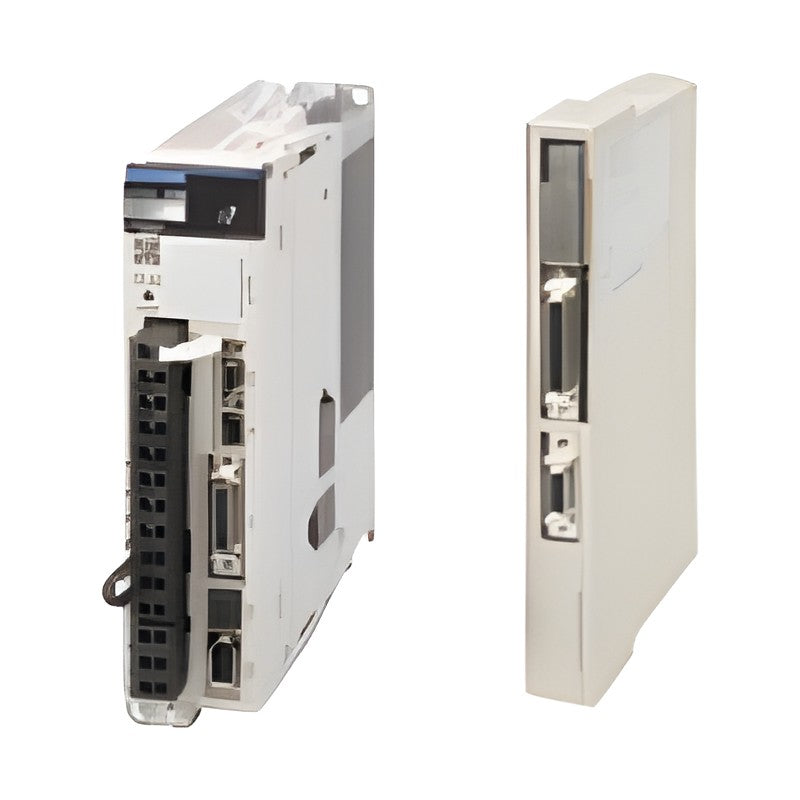

YASKAWA Sigma-7S INDEXER / DeviceNet SERVOPACKs (0.05-15 kW)

YASKAWA Sigma-7S INDEXER / DeviceNet SERVOPACKs (0.05-15 kW)

Sigma-7S command-option-attachable SERVOPACKs (interface E0), sold alone or as factory sets with an INDEXER module or DeviceNet module for single-axis positioning.

Key features

  • Command option attachable SERVOPACK SGD7S-....E0A accepts INDEXER module SGDV-OCA03A (firmware Ver.6 or later) or DeviceNet module SGDV-OCA04A/OCA05A
  • INDEXER sets (100, 101 with full-closed module): program table operation, zone table and JOG speed table positioning
  • DeviceNet sets: 500/501 module powered by servo control power, 600/601 externally powered; 501/601 add full-closed module
  • Individually purchased E0 SERVOPACK + INDEXER module needs one option case kit SGDV-OZA01A (included with DeviceNet module)
  • Hardware options to order: 001 rack mount (R70A-330A, R70F-2R8F) / duct ventilation (470A-780A), 002 varnish coating, 020 dynamic brake options; codes listed are standard (no option)
  • Safety module cannot be combined with INDEXER or DeviceNet command option modules

Specifications

Series Sigma-7S single-axis SERVOPACK
Control method IGBT PWM, sine-wave current drive
Main circuit 200-240 VAC or 100-120 VAC, -15/+10%, 50/60 Hz
Feedback Serial encoder 17/20/24-bit (22-bit abs.)
Ambient temperature -5 to +55 C (to 60 C with derating)
Overvoltage category III
Model key SGD7S-[cap][volt][interface]A[HW opt][FT/EX]
Design revision A
Interface Command option attachable (code E0)
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 270-291, 332
SGD7S-R70AE0A Type: SERVOPACK only | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms | Mass: 0.8 kg
SGD7S-R90AE0A Type: SERVOPACK only | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms | Mass: 0.8 kg
SGD7S-1R6AE0A Type: SERVOPACK only | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms | Mass: 0.8 kg
SGD7S-2R8AE0A Type: SERVOPACK only | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms | Mass: 1 kg
SGD7S-3R8AE0A Type: SERVOPACK only | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms | Mass: 1.6 kg
SGD7S-5R5AE0A Type: SERVOPACK only | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms | Mass: 1.6 kg
SGD7S-7R6AE0A Type: SERVOPACK only | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms | Mass: 1.6 kg
SGD7S-120AE0A Type: SERVOPACK only | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms | Mass: 2.2 kg
SGD7S-180AE0A Type: SERVOPACK only | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms | Mass: 2.7 kg
SGD7S-200AE0A Type: SERVOPACK only | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms | Mass: 2.7 kg
SGD7S-330AE0A Type: SERVOPACK only | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms | Mass: 4.4 kg
SGD7S-470AE0A Type: SERVOPACK only | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms | Mass: 8.2 kg
SGD7S-550AE0A Type: SERVOPACK only | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms | Mass: 8.2 kg
SGD7S-590AE0A Type: SERVOPACK only | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms | Mass: 15.5 kg
SGD7S-780AE0A Type: SERVOPACK only | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms | Mass: 15.5 kg
SGD7S-R70FE0A Type: SERVOPACK only | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms | Mass: 1 kg
SGD7S-R90FE0A Type: SERVOPACK only | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms | Mass: 1 kg
SGD7S-2R1FE0A Type: SERVOPACK only | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms | Mass: 1 kg
SGD7S-2R8FE0A Type: SERVOPACK only | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms | Mass: 1.6 kg
SGD7S-120AE0A008 Type: HW option 008 (1-ph 200 V) | Motor: 1.5 kW | Supply: 1-ph 200 VAC | Current: 11.6 / 28 Arms | Mass: 2.7 kg
SGD7SR70AE0A000100 Type: Set, INDEXER module | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000100 Type: Set, INDEXER module | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000100 Type: Set, INDEXER module | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000100 Type: Set, INDEXER module | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000100 Type: Set, INDEXER module | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000100 Type: Set, INDEXER module | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000100 Type: Set, INDEXER module | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000100 Type: Set, INDEXER module | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000100 Type: Set, INDEXER module | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000100 Type: Set, INDEXER module | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000100 Type: Set, INDEXER module | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000100 Type: Set, INDEXER module | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000100 Type: Set, INDEXER module | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000100 Type: Set, INDEXER module | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000100 Type: Set, INDEXER module | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000100 Type: Set, INDEXER module | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000100 Type: Set, INDEXER module | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000100 Type: Set, INDEXER module | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000100 Type: Set, INDEXER module | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000101 Type: Set, INDEXER + full-closed | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000101 Type: Set, INDEXER + full-closed | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000101 Type: Set, INDEXER + full-closed | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000101 Type: Set, INDEXER + full-closed | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000101 Type: Set, INDEXER + full-closed | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000101 Type: Set, INDEXER + full-closed | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000101 Type: Set, INDEXER + full-closed | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000101 Type: Set, INDEXER + full-closed | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000101 Type: Set, INDEXER + full-closed | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000101 Type: Set, INDEXER + full-closed | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000500 Type: Set, DeviceNet (servo-powered) | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000501 Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000600 Type: Set, DeviceNet (ext. powered) | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000601 Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
Servo Drives (SERVOPACKs)YASKAWA
134 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7S INDEXER / DeviceNet SERVOPACKs (0.05-15 kW)

Brand YASKAWA·Servo Drives (SERVOPACKs)

Available part numbers (134)

SGD7S-R70AE0A, SGD7S-R90AE0A, SGD7S-1R6AE0A, SGD7S-2R8AE0A, SGD7S-3R8AE0A, SGD7S-5R5AE0A, SGD7S-7R6AE0A, SGD7S-120AE0A, SGD7S-180AE0A, SGD7S-200AE0A + 124 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGD7S-R70AE0AType: SERVOPACK only | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms | Mass: 0.8 kg
SGD7S-R90AE0AType: SERVOPACK only | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms | Mass: 0.8 kg
SGD7S-1R6AE0AType: SERVOPACK only | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms | Mass: 0.8 kg
SGD7S-2R8AE0AType: SERVOPACK only | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms | Mass: 1 kg
SGD7S-3R8AE0AType: SERVOPACK only | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms | Mass: 1.6 kg
SGD7S-5R5AE0AType: SERVOPACK only | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms | Mass: 1.6 kg
SGD7S-7R6AE0AType: SERVOPACK only | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms | Mass: 1.6 kg
SGD7S-120AE0AType: SERVOPACK only | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms | Mass: 2.2 kg
SGD7S-180AE0AType: SERVOPACK only | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms | Mass: 2.7 kg
SGD7S-200AE0AType: SERVOPACK only | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms | Mass: 2.7 kg
SGD7S-330AE0AType: SERVOPACK only | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms | Mass: 4.4 kg
SGD7S-470AE0AType: SERVOPACK only | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms | Mass: 8.2 kg
SGD7S-550AE0AType: SERVOPACK only | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms | Mass: 8.2 kg
SGD7S-590AE0AType: SERVOPACK only | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms | Mass: 15.5 kg
SGD7S-780AE0AType: SERVOPACK only | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms | Mass: 15.5 kg
SGD7S-R70FE0AType: SERVOPACK only | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms | Mass: 1 kg
SGD7S-R90FE0AType: SERVOPACK only | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms | Mass: 1 kg
SGD7S-2R1FE0AType: SERVOPACK only | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms | Mass: 1 kg
SGD7S-2R8FE0AType: SERVOPACK only | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms | Mass: 1.6 kg
SGD7S-120AE0A008Type: HW option 008 (1-ph 200 V) | Motor: 1.5 kW | Supply: 1-ph 200 VAC | Current: 11.6 / 28 Arms | Mass: 2.7 kg
SGD7SR70AE0A000100Type: Set, INDEXER module | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000100Type: Set, INDEXER module | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000100Type: Set, INDEXER module | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000100Type: Set, INDEXER module | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000100Type: Set, INDEXER module | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000100Type: Set, INDEXER module | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000100Type: Set, INDEXER module | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000100Type: Set, INDEXER module | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000100Type: Set, INDEXER module | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000100Type: Set, INDEXER module | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000100Type: Set, INDEXER module | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000100Type: Set, INDEXER module | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000100Type: Set, INDEXER module | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000100Type: Set, INDEXER module | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000100Type: Set, INDEXER module | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000100Type: Set, INDEXER module | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000100Type: Set, INDEXER module | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000100Type: Set, INDEXER module | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000100Type: Set, INDEXER module | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000101Type: Set, INDEXER + full-closed | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000101Type: Set, INDEXER + full-closed | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000101Type: Set, INDEXER + full-closed | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000101Type: Set, INDEXER + full-closed | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000101Type: Set, INDEXER + full-closed | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000101Type: Set, INDEXER + full-closed | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000101Type: Set, INDEXER + full-closed | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000101Type: Set, INDEXER + full-closed | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000101Type: Set, INDEXER + full-closed | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000101Type: Set, INDEXER + full-closed | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000101Type: Set, INDEXER + full-closed | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000101Type: Set, INDEXER + full-closed | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000101Type: Set, INDEXER + full-closed | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000101Type: Set, INDEXER + full-closed | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000101Type: Set, INDEXER + full-closed | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000101Type: Set, INDEXER + full-closed | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000101Type: Set, INDEXER + full-closed | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000101Type: Set, INDEXER + full-closed | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000101Type: Set, INDEXER + full-closed | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000500Type: Set, DeviceNet (servo-powered) | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000501Type: Set, DeviceNet servo-pwr + full-closed | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000600Type: Set, DeviceNet (ext. powered) | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7SR70AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.05 kW | Supply: 1/3-ph 200 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.1 kW | Supply: 1/3-ph 200 VAC | Current: 0.91 / 3.2 Arms
SGD7S1R6AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.2 kW | Supply: 1/3-ph 200 VAC | Current: 1.6 / 5.9 Arms
SGD7S2R8AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S3R8AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.5 kW | Supply: 3-ph 200 VAC | Current: 3.8 / 11 Arms
SGD7S5R5AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.75 kW | Supply: 1/3-ph 200 VAC | Current: 5.5 / 16.9 Arms
SGD7S7R6AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 1 kW | Supply: 3-ph 200 VAC | Current: 7.6 / 17 Arms
SGD7S120AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S180AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 2 kW | Supply: 3-ph 200 VAC | Current: 18.5 / 42 Arms
SGD7S200AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 3 kW | Supply: 3-ph 200 VAC | Current: 19.6 / 56 Arms
SGD7S330AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 5 kW | Supply: 3-ph 200 VAC | Current: 32.9 / 84 Arms
SGD7S470AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 6 kW | Supply: 3-ph 200 VAC | Current: 46.9 / 110 Arms
SGD7S550AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 7.5 kW | Supply: 3-ph 200 VAC | Current: 54.7 / 130 Arms
SGD7S590AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 11 kW | Supply: 3-ph 200 VAC | Current: 58.6 / 140 Arms
SGD7S780AE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 15 kW | Supply: 3-ph 200 VAC | Current: 78 / 170 Arms
SGD7SR70FE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.05 kW | Supply: 1-ph 100 VAC | Current: 0.66 / 2.1 Arms
SGD7SR90FE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.1 kW | Supply: 1-ph 100 VAC | Current: 0.91 / 3.2 Arms
SGD7S2R1FE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.2 kW | Supply: 1-ph 100 VAC | Current: 2.1 / 6.5 Arms
SGD7S2R8FE0A000601Type: Set, DeviceNet ext.-pwr + full-closed | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
