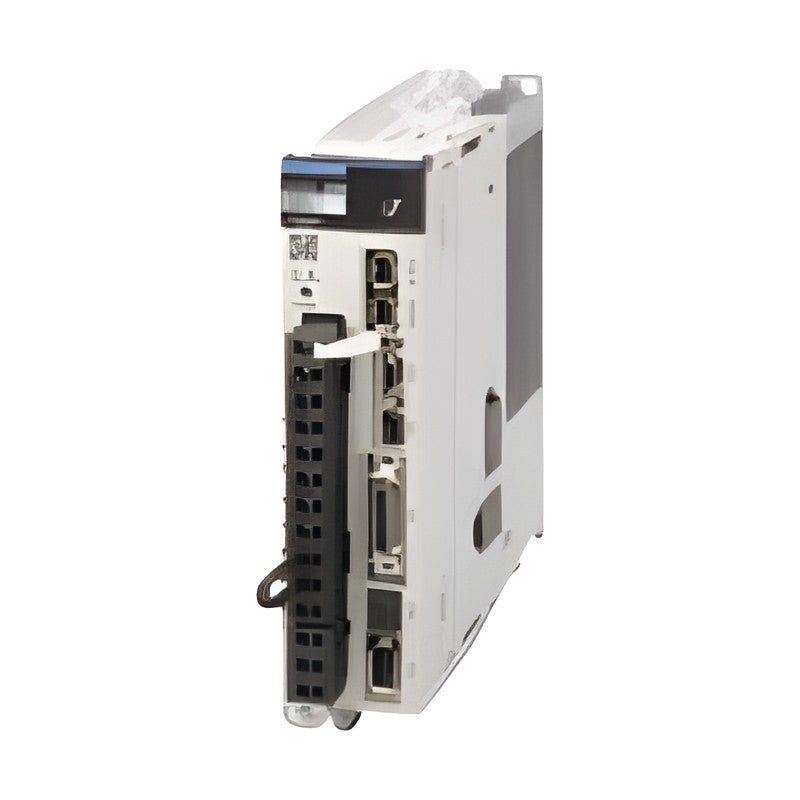

YASKAWA Sigma-7S FT82/FT83 SERVOPACKs for SGM7D Motors

YASKAWA Sigma-7S FT82/FT83 SERVOPACKs for SGM7D Motors

Sigma-7S SERVOPACKs with FT82 / FT83 special specifications for driving SGM7D direct drive servomotors, available for 0.4 kW and 1.5 kW motors.

Key features

  • FT82: specific-motor-combination function option for SGM7D drive; analog/pulse (00), MECHATROLINK-II (10), MECHATROLINK-III (20) or command option attachable (E0, INDEXER module SGDV-OCA03A only)
  • FT83: SGM7D drive with built-in INDEXER (indexing/division) function, analog/pulse interface
  • Capacities 2R8A (0.4 kW), 120A (1.5 kW) at 200 VAC and 2R8F (0.4 kW) at 100 VAC; 24-bit serial encoder feedback
  • Single-phase 200 VAC input variant via hardware option 008 (SGD7S-120A..A008)
  • Hardware options 001 rack mount, 002 varnish, 008, 020 DB options; codes listed use standard 000

Specifications

Series Sigma-7S single-axis SERVOPACK
Applicable motor SGM7D direct drive servomotor
Control method IGBT PWM, sine-wave current drive
Feedback 24-bit serial encoder
Protection IP20 (IP10 for 1-ph 200 V 008 type)
Ambient temperature -5 to +55 C (to 60 C with derating)
Model key SGD7S-[cap][volt][I/F]A[HW opt][F82/F83]
Design revision A
Source YASKAWA Sigma-7 Catalog (Korean ed.), p. 292-315
SGD7S-2R8A00A000F82 Spec: FT82, Analog voltage/pulse train | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8A10A000F82 Spec: FT82, MECHATROLINK-II | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8A20A000F82 Spec: FT82, MECHATROLINK-III | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8AE0A000F82 Spec: FT82, Command option attachable | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-120A00A000F82 Spec: FT82, Analog voltage/pulse train | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-120A10A000F82 Spec: FT82, MECHATROLINK-II | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-120A20A000F82 Spec: FT82, MECHATROLINK-III | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-120AE0A000F82 Spec: FT82, Command option attachable | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-2R8F00A000F82 Spec: FT82, Analog voltage/pulse train | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8F10A000F82 Spec: FT82, MECHATROLINK-II | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8F20A000F82 Spec: FT82, MECHATROLINK-III | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8FE0A000F82 Spec: FT82, Command option attachable | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8A00A000F83 Spec: FT83, INDEXER func. (analog I/F) | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-120A00A000F83 Spec: FT83, INDEXER func. (analog I/F) | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-2R8F00A000F83 Spec: FT83, INDEXER func. (analog I/F) | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
Servo Drives (SERVOPACKs)YASKAWA
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-7S FT82/FT83 SERVOPACKs for SGM7D Motors

Brand YASKAWA·Servo Drives (SERVOPACKs)

Available part numbers (15)

SGD7S-2R8A00A000F82, SGD7S-2R8A10A000F82, SGD7S-2R8A20A000F82, SGD7S-2R8AE0A000F82, SGD7S-120A00A000F82, SGD7S-120A10A000F82, SGD7S-120A20A000F82, SGD7S-120AE0A000F82, SGD7S-2R8F00A000F82, SGD7S-2R8F10A000F82 + 5 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGD7S-2R8A00A000F82Spec: FT82, Analog voltage/pulse train | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8A10A000F82Spec: FT82, MECHATROLINK-II | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8A20A000F82Spec: FT82, MECHATROLINK-III | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8AE0A000F82Spec: FT82, Command option attachable | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-120A00A000F82Spec: FT82, Analog voltage/pulse train | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-120A10A000F82Spec: FT82, MECHATROLINK-II | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-120A20A000F82Spec: FT82, MECHATROLINK-III | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-120AE0A000F82Spec: FT82, Command option attachable | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-2R8F00A000F82Spec: FT82, Analog voltage/pulse train | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8F10A000F82Spec: FT82, MECHATROLINK-II | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8F20A000F82Spec: FT82, MECHATROLINK-III | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8FE0A000F82Spec: FT82, Command option attachable | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
SGD7S-2R8A00A000F83Spec: FT83, INDEXER func. (analog I/F) | Motor: 0.4 kW | Supply: 1/3-ph 200 VAC | Current: 2.8 / 9.3 Arms
SGD7S-120A00A000F83Spec: FT83, INDEXER func. (analog I/F) | Motor: 1.5 kW | Supply: 3-ph 200 VAC | Current: 11.6 / 28 Arms
SGD7S-2R8F00A000F83Spec: FT83, INDEXER func. (analog I/F) | Motor: 0.4 kW | Supply: 1-ph 100 VAC | Current: 2.8 / 9.3 Arms
