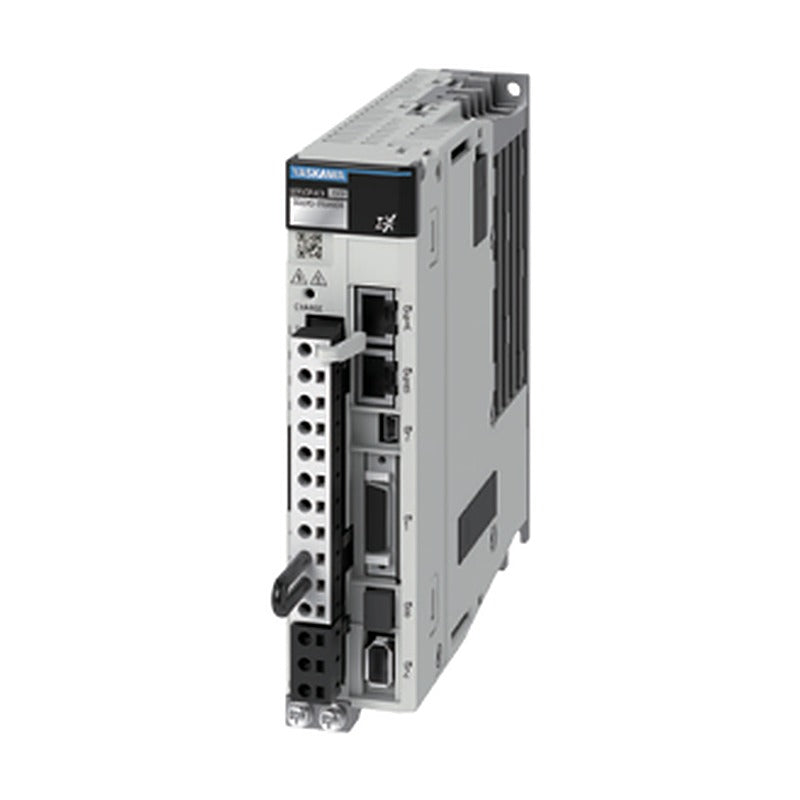

YASKAWA Sigma-X SGDXS SERVOPACKs (MECHATROLINK-4/III)

YASKAWA Sigma-X SGDXS SERVOPACKs (MECHATROLINK-4/III)

Sigma-XS single-axis SERVOPACKs with MECHATROLINK-4/III communication reference for 200 V class rotary and linear servo motors from 0.05 kW to 15 kW.

Key features

  • One unit supports MECHATROLINK-4 (100 Mbps, 62.5 us-4 ms cycle, up to 127 stations) and MECHATROLINK-III (125 us-4 ms, 62 stations), selected by DIP switch S3.
  • Position, speed and torque control via MECHATROLINK commands; standard servo profiles for MECHATROLINK-4 and -III.
  • High-speed position-passing outputs /HSO1-3 (line driver), 7 assignable inputs, USB 2.0 for SigmaWin+.
  • Code format SGDXS-[capacity]A[interface]A; hardware option positions left blank (no option). Optional suffixes printed in the key: 0001 rack-mount (R70A-330A) / duct-ventilated (470A-780A), 0002 varnish coating, 0020 dynamic-brake variants - quote on request.
  • Single-phase AC200 V input printed for R70A, R90A, 1R6A, 2R8A and 5R5A; SGDXS-120A requires hardware option 0008 for single-phase use (derate to 12 Arms for UL).
  • Regenerative resistor built in for 3R8A-330A; 470A uses external unit JUSP-RA29-E and 550A-780A use JUSP-RA05-E.

Specifications

Series Sigma-X (Sigma-XS single-axis)
Voltage class 200 V (AC200-240 V; DC270-324 V input)
Interface MECHATROLINK-4/III (40)
Capacity range 0.05 kW to 15 kW
Design revision A
Hardware option None (standard)
Ambient temperature -5 to 55 C (to 60 C with derating)
Safety function HWBB, ISO13849-1 PLe Cat.3, SIL3
Motors Rotary and linear servo motors
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 432-447
SGDXS-R70A40A Max. motor: 0.05 kW | Output: 0.66 A cont. / 2.1 A peak | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: None (external, min 40 ohm) | Protection: IP20
SGDXS-R90A40A Max. motor: 0.1 kW | Output: 0.91 A cont. / 3.2 A peak | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: None (external, min 40 ohm) | Protection: IP20
SGDXS-1R6A40A Max. motor: 0.2 kW | Output: 1.6 A cont. / 5.9 A peak | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: None (external, min 40 ohm) | Protection: IP20
SGDXS-2R8A40A Max. motor: 0.4 kW | Output: 2.8 A cont. / 9.3 A peak | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: None (external, min 40 ohm) | Protection: IP20
SGDXS-3R8A40A Max. motor: 0.5 kW | Output: 3.8 A cont. / 11 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W | Protection: IP20
SGDXS-5R5A40A Max. motor: 0.75 kW | Output: 5.5 A cont. / 16.9 A peak | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W | Protection: IP20
SGDXS-7R6A40A Max. motor: 1.0 kW | Output: 7.6 A cont. / 17 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W | Protection: IP20
SGDXS-120A40A Max. motor: 1.5 kW | Output: 11.6 A cont. / 28 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 20 ohm / 60 W | Protection: IP20
SGDXS-120A40A0008 Max. motor: 1.5 kW | Output: 11.6 A cont. / 28 A peak | Input: 1-ph AC200 V (option 0008) | Regen resistor: Built-in 20 ohm / 60 W | Protection: IP20
SGDXS-180A40A Max. motor: 2.0 kW | Output: 18.5 A cont. / 42 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 60 W | Protection: IP10
SGDXS-200A40A Max. motor: 3.0 kW | Output: 19.6 A cont. / 56 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 10 ohm / 60 W | Protection: IP10
SGDXS-330A40A Max. motor: 5.0 kW | Output: 32.9 A cont. / 84 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 6 ohm / 180 W | Protection: IP10
SGDXS-470A40A Max. motor: 6.0 kW | Output: 46.9 A cont. / 110 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: External JUSP-RA29-E | Protection: IP10
SGDXS-550A40A Max. motor: 7.5 kW | Output: 54.7 A cont. / 130 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: External JUSP-RA05-E | Protection: IP10
SGDXS-590A40A Max. motor: 11 kW | Output: 58.6 A cont. / 140 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: External JUSP-RA05-E | Protection: IP10
SGDXS-780A40A Max. motor: 15 kW | Output: 78.0 A cont. / 170 A peak | Input: 3-ph AC200 V, DC270 V | Regen resistor: External JUSP-RA05-E | Protection: IP10
