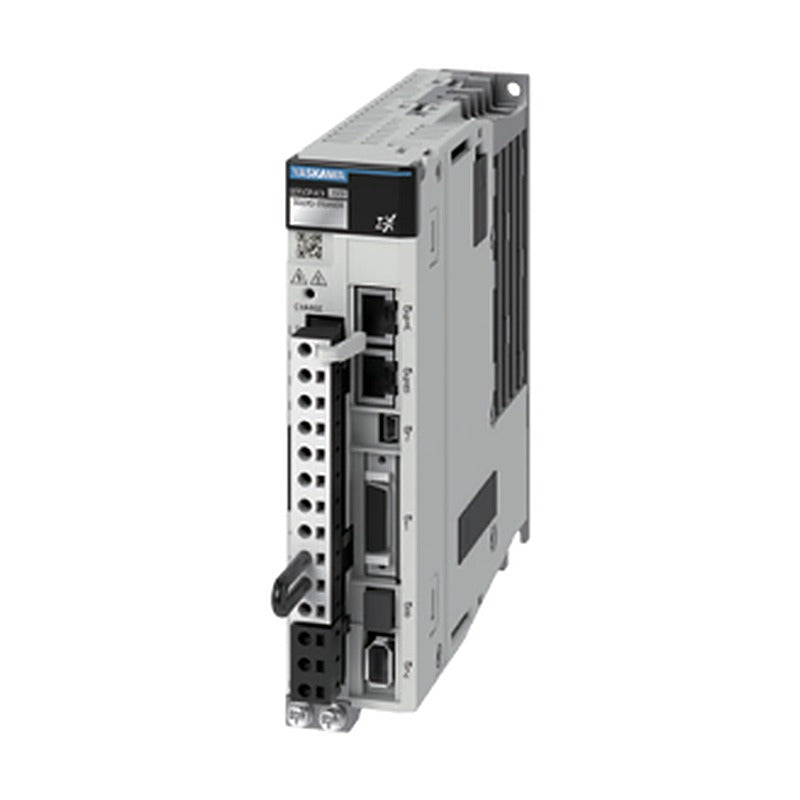

YASKAWA Sigma-X SGDXS SERVOPACKs with Fully-Closed Module (set)

YASKAWA Sigma-X SGDXS SERVOPACKs with Fully-Closed Module (set)

Sigma-X SGDXS single-axis SERVOPACKs supplied with the fully-closed feedback module factory-installed (set purchase model numbers).

Key features

  • Model number without hyphen after SGDXS indicates an option module is mounted
  • Option module code 001 = fully-closed module
  • Interfaces: analog voltage/pulse train, MECHATROLINK-4/III or EtherCAT
  • R70A to 2R8A and 5R5A usable with single-phase or 3-phase input
  • Hardware options (rack mount 0001, duct vent 0001, varnish 0002, single-phase 120A 0008, dynamic brake 0020) available on request

Specifications

Brand YASKAWA
Series Sigma-X Sigma-XS
Voltage 200 VAC
Design revision A
Option module 001 (fully-closed module)
Axes 1
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 598
SGDXSR70A00A0000001 Max. motor capacity: 0.05 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXSR70A40A0000001 Max. motor capacity: 0.05 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXSR70AA0A0000001 Max. motor capacity: 0.05 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXSR90A00A0000001 Max. motor capacity: 0.1 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXSR90A40A0000001 Max. motor capacity: 0.1 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXSR90AA0A0000001 Max. motor capacity: 0.1 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS1R6A00A0000001 Max. motor capacity: 0.2 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS1R6A40A0000001 Max. motor capacity: 0.2 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS1R6AA0A0000001 Max. motor capacity: 0.2 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS2R8A00A0000001 Max. motor capacity: 0.4 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS2R8A40A0000001 Max. motor capacity: 0.4 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS2R8AA0A0000001 Max. motor capacity: 0.4 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS3R8A00A0000001 Max. motor capacity: 0.5 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS3R8A40A0000001 Max. motor capacity: 0.5 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS3R8AA0A0000001 Max. motor capacity: 0.5 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS5R5A00A0000001 Max. motor capacity: 0.75 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS5R5A40A0000001 Max. motor capacity: 0.75 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS5R5AA0A0000001 Max. motor capacity: 0.75 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS7R6A00A0000001 Max. motor capacity: 1.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS7R6A40A0000001 Max. motor capacity: 1.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS7R6AA0A0000001 Max. motor capacity: 1.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS120A00A0000001 Max. motor capacity: 1.5 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS120A40A0000001 Max. motor capacity: 1.5 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS120AA0A0000001 Max. motor capacity: 1.5 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS180A00A0000001 Max. motor capacity: 2.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS180A40A0000001 Max. motor capacity: 2.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS180AA0A0000001 Max. motor capacity: 2.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS200A00A0000001 Max. motor capacity: 3.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS200A40A0000001 Max. motor capacity: 3.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS200AA0A0000001 Max. motor capacity: 3.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS330A00A0000001 Max. motor capacity: 5.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS330A40A0000001 Max. motor capacity: 5.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS330AA0A0000001 Max. motor capacity: 5.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS470A00A0000001 Max. motor capacity: 6.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS470A40A0000001 Max. motor capacity: 6.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS470AA0A0000001 Max. motor capacity: 6.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS550A00A0000001 Max. motor capacity: 7.5 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS550A40A0000001 Max. motor capacity: 7.5 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS550AA0A0000001 Max. motor capacity: 7.5 kW | Interface: EtherCAT | Hardware option: None (0000)
Servo Drives (SERVOPACKs)YASKAWA
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X SGDXS SERVOPACKs with Fully-Closed Module (set)

Brand YASKAWA·Servo Drives (SERVOPACKs)

Available part numbers (39)

SGDXSR70A00A0000001, SGDXSR70A40A0000001, SGDXSR70AA0A0000001, SGDXSR90A00A0000001, SGDXSR90A40A0000001, SGDXSR90AA0A0000001, SGDXS1R6A00A0000001, SGDXS1R6A40A0000001, SGDXS1R6AA0A0000001, SGDXS2R8A00A0000001 + 29 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGDXSR70A00A0000001Max. motor capacity: 0.05 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXSR70A40A0000001Max. motor capacity: 0.05 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXSR70AA0A0000001Max. motor capacity: 0.05 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXSR90A00A0000001Max. motor capacity: 0.1 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXSR90A40A0000001Max. motor capacity: 0.1 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXSR90AA0A0000001Max. motor capacity: 0.1 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS1R6A00A0000001Max. motor capacity: 0.2 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS1R6A40A0000001Max. motor capacity: 0.2 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS1R6AA0A0000001Max. motor capacity: 0.2 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS2R8A00A0000001Max. motor capacity: 0.4 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS2R8A40A0000001Max. motor capacity: 0.4 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS2R8AA0A0000001Max. motor capacity: 0.4 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS3R8A00A0000001Max. motor capacity: 0.5 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS3R8A40A0000001Max. motor capacity: 0.5 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS3R8AA0A0000001Max. motor capacity: 0.5 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS5R5A00A0000001Max. motor capacity: 0.75 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS5R5A40A0000001Max. motor capacity: 0.75 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS5R5AA0A0000001Max. motor capacity: 0.75 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS7R6A00A0000001Max. motor capacity: 1.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS7R6A40A0000001Max. motor capacity: 1.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS7R6AA0A0000001Max. motor capacity: 1.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS120A00A0000001Max. motor capacity: 1.5 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS120A40A0000001Max. motor capacity: 1.5 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS120AA0A0000001Max. motor capacity: 1.5 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS180A00A0000001Max. motor capacity: 2.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS180A40A0000001Max. motor capacity: 2.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS180AA0A0000001Max. motor capacity: 2.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS200A00A0000001Max. motor capacity: 3.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS200A40A0000001Max. motor capacity: 3.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS200AA0A0000001Max. motor capacity: 3.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS330A00A0000001Max. motor capacity: 5.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS330A40A0000001Max. motor capacity: 5.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS330AA0A0000001Max. motor capacity: 5.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS470A00A0000001Max. motor capacity: 6.0 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS470A40A0000001Max. motor capacity: 6.0 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS470AA0A0000001Max. motor capacity: 6.0 kW | Interface: EtherCAT | Hardware option: None (0000)
SGDXS550A00A0000001Max. motor capacity: 7.5 kW | Interface: Analog voltage / pulse train | Hardware option: None (0000)
SGDXS550A40A0000001Max. motor capacity: 7.5 kW | Interface: MECHATROLINK-4/III | Hardware option: None (0000)
SGDXS550AA0A0000001Max. motor capacity: 7.5 kW | Interface: EtherCAT | Hardware option: None (0000)
