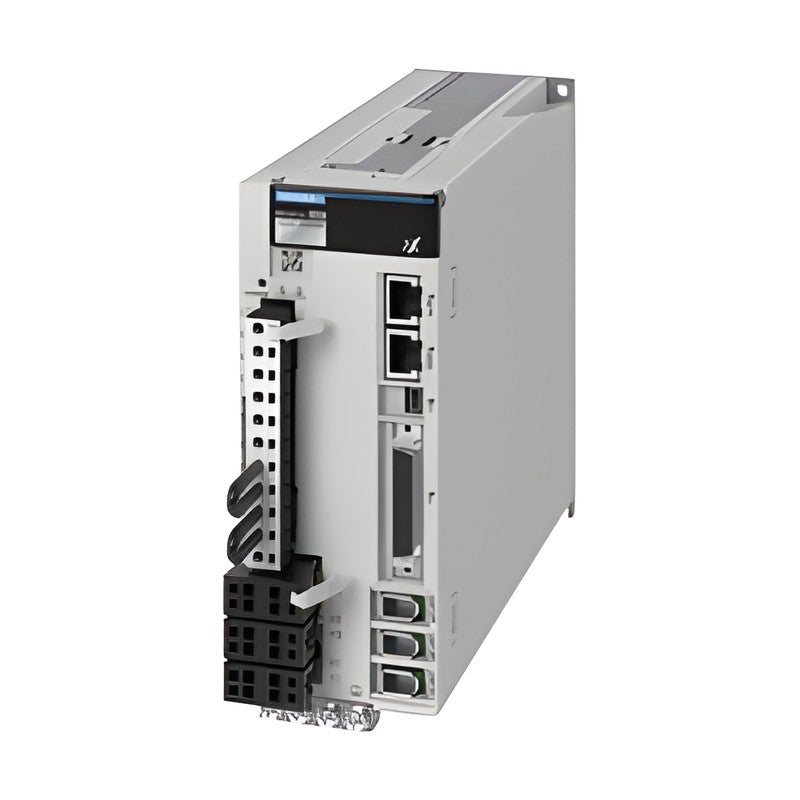

YASKAWA Sigma-X SGDXT 3-axis SERVOPACKs (EtherCAT)

YASKAWA Sigma-X SGDXT 3-axis SERVOPACKs (EtherCAT)

Sigma-XT three-axis SERVOPACKs with EtherCAT communication reference, driving three 200 V class servo motors of 0.2 kW or 0.4 kW per axis.

Key features

  • EtherCAT (CoE, CiA402 drive profile) with RJ45 in/out ports and Distributed Clocks synchronisation.
  • Three axes in one unit for space saving and simpler wiring; encoder connectors CN2A/CN2B/CN2C.
  • Single-phase AC200 V input possible; SGDXT-2R8A on single-phase limited to 65% of rated total output (0.78 kW).
  • High-speed position-passing outputs /HSO1-3, 16 assignable inputs, USB 2.0 for SigmaWin+; option modules cannot be mounted.
  • Hardware option positions left blank (no option); key also prints 0001 rack-mount, 0002 varnish coating, 0020 dynamic-brake variants and 1000 HWBB function option - quote on request.
  • Regenerative resistor built in for all capacities; overtravel stop by DB, deceleration or coasting; gain tuning, alarm history, JOG and origin search.

Specifications

Series Sigma-X (Sigma-XT 3-axis)
Voltage class 200 V (AC200-240 V; DC270-324 V input)
Interface EtherCAT (A0)
Capacity range 0.2 kW / 0.4 kW per axis
Design revision A
Hardware option None (standard)
Protection IP20
Ambient temperature -5 to 55 C (to 60 C with derating)
Motors Rotary and linear servo motors
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 492-499
SGDXT-1R6AA0A Max. motor/axis: 0.2 kW | Output/axis: 1.6 A / 5.9 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
SGDXT-2R8AA0A Max. motor/axis: 0.4 kW | Output/axis: 2.8 A / 9.3 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
Servo Drives (SERVOPACKs)YASKAWA
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X SGDXT 3-axis SERVOPACKs (EtherCAT)

Brand YASKAWA·Servo Drives (SERVOPACKs)

Available part numbers (2)

SGDXT-1R6AA0A, SGDXT-2R8AA0A

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGDXT-1R6AA0AMax. motor/axis: 0.2 kW | Output/axis: 1.6 A / 5.9 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
SGDXT-2R8AA0AMax. motor/axis: 0.4 kW | Output/axis: 2.8 A / 9.3 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
