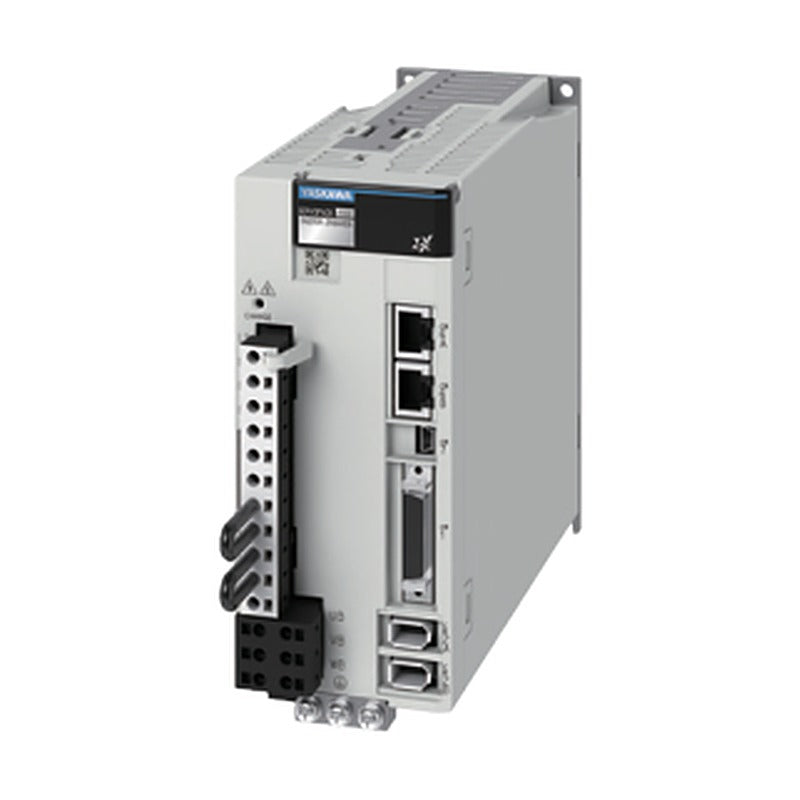

YASKAWA Sigma-X SGDXW 2-axis SERVOPACKs (MECHATROLINK-4/III)

YASKAWA Sigma-X SGDXW 2-axis SERVOPACKs (MECHATROLINK-4/III)

Sigma-XW two-axis SERVOPACKs with MECHATROLINK-4/III communication reference, driving two 200 V class servo motors of 0.2 kW to 1.0 kW per axis.

Key features

  • MECHATROLINK-4 (62.5 us-4 ms) / MECHATROLINK-III (250 us-4 ms) selectable by DIP switch S3; extended address A axis 00h, B axis 01h.
  • Two axes in one unit for smaller panels and simpler wiring; regenerative energy shared between axes.
  • Single-phase AC200 V input printed for 1R6A, 2R8A and 5R5A (5R5A derated to 65% average load on single-phase).
  • 12 assignable inputs, 5 assignable outputs, USB 2.0 for SigmaWin+; option modules cannot be mounted.
  • Hardware option positions left blank (no option); key also prints 0001 rack-mount, 0002 varnish coating, 0020 dynamic-brake variants and 1000 HWBB function option - quote on request.
  • Regenerative resistor built in for all capacities; overtravel stop by DB, deceleration or coasting; gain tuning, alarm history, JOG and origin search.

Specifications

Series Sigma-X (Sigma-XW 2-axis)
Voltage class 200 V (AC200-240 V; DC270-324 V input)
Interface MECHATROLINK-4/III (40)
Capacity range 0.2 kW to 1.0 kW per axis
Design revision A
Hardware option None (standard)
Protection IP20
Ambient temperature -5 to 55 C (to 60 C with derating)
Motors Rotary and linear servo motors
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 464-473
SGDXW-1R6A40A Max. motor/axis: 0.2 kW | Output/axis: 1.6 A / 5.9 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W
SGDXW-2R8A40A Max. motor/axis: 0.4 kW | Output/axis: 2.8 A / 9.3 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W
SGDXW-5R5A40A Max. motor/axis: 0.75 kW | Output/axis: 5.5 A / 16.9 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
SGDXW-7R6A40A Max. motor/axis: 1.0 kW | Output/axis: 7.6 A / 17.0 A pk | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
Servo Drives (SERVOPACKs)YASKAWA
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X SGDXW 2-axis SERVOPACKs (MECHATROLINK-4/III)

Brand YASKAWA·Servo Drives (SERVOPACKs)

Available part numbers (4)

SGDXW-1R6A40A, SGDXW-2R8A40A, SGDXW-5R5A40A, SGDXW-7R6A40A

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGDXW-1R6A40AMax. motor/axis: 0.2 kW | Output/axis: 1.6 A / 5.9 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W
SGDXW-2R8A40AMax. motor/axis: 0.4 kW | Output/axis: 2.8 A / 9.3 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 35 ohm / 60 W
SGDXW-5R5A40AMax. motor/axis: 0.75 kW | Output/axis: 5.5 A / 16.9 A pk | Input: 1-/3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
SGDXW-7R6A40AMax. motor/axis: 1.0 kW | Output/axis: 7.6 A / 17.0 A pk | Input: 3-ph AC200 V, DC270 V | Regen resistor: Built-in 12 ohm / 70 W
