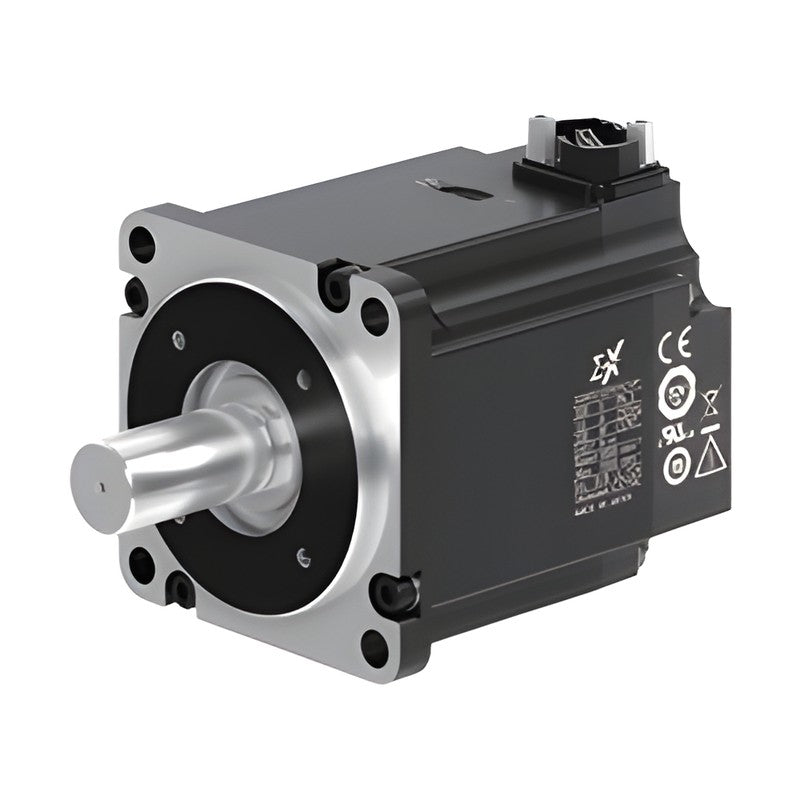

YASKAWA Sigma-X SGMXA Rotary Servo Motors (50 W - 7.0 kW, 200 V)

YASKAWA Sigma-X SGMXA Rotary Servo Motors (50 W - 7.0 kW, 200 V)

The YASKAWA Sigma-X SGMXA is a low-inertia, high-speed 200 V rotary servo motor from 50 W to 7.0 kW with a 26-bit serial encoder.

Key features

  • Low inertia, high speed: 50 W to 7.0 kW rated output, 3000 min-1 rated speed, up to 7000 min-1 (6000 min-1 for 1.5 kW and above).
  • 26-bit absolute encoder (U) or 26-bit batteryless absolute encoder (W).
  • Shaft ends: straight without key, straight with key and tap; two flat seats up to 1.0 kW only.
  • Without brake or with 24 VDC holding brake (no brake version for SGMXA-70A); oil seal and Sigma-7 compatible connector spec on request.
  • IP67 self-cooled up to 5.0 kW; SGMXA-70A is fan-cooled IP22 (single-phase 220 V fan).

Specifications

Series Sigma-X (Σ-X) rotary servo motor
Power supply voltage 200 VAC
Rated speed 3000 min-1
Time rating Continuous
Vibration class V15
Excitation Permanent magnet
Mounting Flange-mounted, direct drive coupling
Maximum speed 7000 min-1 (to 1.0 kW), 6000 min-1 (1.5 kW+)
Insulation class UL: B, CE: B (to 1.0 kW); UL: F, CE: F
Model designation SGMXA-[cap]A[enc]A[shaft][option]A1
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 35, 40, 74-107
SGMXA-A5AUA21A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AUA2CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AUA61A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AUA6CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AUAB1A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AUABCA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA21A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA2CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA61A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA6CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AWAB1A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AWABCA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-01AUA21A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AUA2CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AUA61A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AUA6CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AUAB1A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AUABCA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AWA21A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AWA2CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AWA61A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AWA6CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AWAB1A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AWABCA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-C2AUA21A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUA2CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUA61A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUA6CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUAB1A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUABCA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA21A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA2CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA61A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA6CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWAB1A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWABCA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA21A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA2CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA61A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA6CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AUAB1A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AUABCA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA21A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA2CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA61A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA6CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AWAB1A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AWABCA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-04AUA21A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AUA2CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AUA61A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AUA6CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AUAB1A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AUABCA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA21A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA2CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA61A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA6CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AWAB1A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AWABCA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-06AUA21A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AUA2CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AUA61A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AUA6CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AUAB1A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AUABCA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA21A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA2CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA61A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA6CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AWAB1A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AWABCA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA21A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA2CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA61A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA6CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AUAB1A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AUABCA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA21A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA2CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA61A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA6CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AWAB1A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AWABCA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-10AUA21A1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AUA2CA1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AUA61A1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AUA6CA1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AUAB1A1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AUABCA1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AWA21A1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AWA2CA1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AWA61A1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AWA6CA1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AWAB1A1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AWABCA1 Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AUA21A1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AUA2CA1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AUA61A1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AUA6CA1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AWA21A1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AWA2CA1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AWA61A1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AWA6CA1 Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-20AUA21A1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AUA2CA1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-20AUA61A1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AUA6CA1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-20AWA21A1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AWA2CA1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-20AWA61A1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AWA6CA1 Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-25AUA21A1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AUA2CA1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-25AUA61A1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AUA6CA1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-25AWA21A1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AWA2CA1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-25AWA61A1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AWA6CA1 Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AUA21A1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AUA2CA1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AUA61A1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AUA6CA1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AWA21A1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AWA2CA1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AWA61A1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AWA6CA1 Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-40AUA21A1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AUA2CA1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-40AUA61A1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AUA6CA1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-40AWA21A1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AWA2CA1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-40AWA61A1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AWA6CA1 Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AUA21A1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AUA2CA1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AUA61A1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AUA6CA1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AWA21A1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AWA2CA1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AWA61A1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AWA6CA1 Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-70AUA21A1 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-550A
SGMXA-70AUA61A1 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-550A
SGMXA-70AWA21A1 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-550A
SGMXA-70AWA61A1 Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-550A
Servo MotorsYASKAWA
148 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X SGMXA Rotary Servo Motors (50 W - 7.0 kW, 200 V)

Brand YASKAWA·Servo Motors

Available part numbers (148)

SGMXA-A5AUA21A1, SGMXA-A5AUA2CA1, SGMXA-A5AUA61A1, SGMXA-A5AUA6CA1, SGMXA-A5AUAB1A1, SGMXA-A5AUABCA1, SGMXA-A5AWA21A1, SGMXA-A5AWA2CA1, SGMXA-A5AWA61A1, SGMXA-A5AWA6CA1 + 138 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SGMXA-A5AUA21A1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AUA2CA1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AUA61A1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AUA6CA1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AUAB1A1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AUABCA1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA21A1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA2CA1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA61A1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AWA6CA1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-A5AWAB1A1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXA-A5AWABCA1Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXA-01AUA21A1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AUA2CA1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AUA61A1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AUA6CA1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AUAB1A1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AUABCA1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AWA21A1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AWA2CA1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AWA61A1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AWA6CA1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-01AWAB1A1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXA-01AWABCA1Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXA-C2AUA21A1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUA2CA1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUA61A1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUA6CA1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUAB1A1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AUABCA1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA21A1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA2CA1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA61A1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWA6CA1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWAB1A1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-C2AWABCA1Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA21A1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA2CA1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA61A1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AUA6CA1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AUAB1A1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AUABCA1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA21A1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA2CA1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA61A1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AWA6CA1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-02AWAB1A1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXA-02AWABCA1Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXA-04AUA21A1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AUA2CA1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AUA61A1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AUA6CA1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AUAB1A1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AUABCA1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA21A1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA2CA1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA61A1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AWA6CA1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-04AWAB1A1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXA-04AWABCA1Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXA-06AUA21A1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AUA2CA1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AUA61A1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AUA6CA1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AUAB1A1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AUABCA1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA21A1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA2CA1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA61A1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AWA6CA1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-06AWAB1A1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-06AWABCA1Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA21A1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA2CA1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA61A1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AUA6CA1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AUAB1A1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AUABCA1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA21A1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA2CA1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA61A1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AWA6CA1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-08AWAB1A1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXA-08AWABCA1Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXA-10AUA21A1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AUA2CA1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AUA61A1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AUA6CA1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AUAB1A1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AUABCA1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AWA21A1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AWA2CA1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AWA61A1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AWA6CA1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-10AWAB1A1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-10AWABCA1Output: 1.0 kW | Torque: 3.18 / 11.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AUA21A1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AUA2CA1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AUA61A1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AUA6CA1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AWA21A1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AWA2CA1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-15AWA61A1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-120A
SGMXA-15AWA6CA1Output: 1.5 kW | Torque: 4.90 / 14.7 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-120A
SGMXA-20AUA21A1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AUA2CA1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-20AUA61A1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AUA6CA1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-20AWA21A1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AWA2CA1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-20AWA61A1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-180A
SGMXA-20AWA6CA1Output: 2.0 kW | Torque: 6.36 / 19.1 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-180A
SGMXA-25AUA21A1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AUA2CA1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-25AUA61A1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AUA6CA1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-25AWA21A1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AWA2CA1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-25AWA61A1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-25AWA6CA1Output: 2.5 kW | Torque: 7.96 / 23.9 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AUA21A1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AUA2CA1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AUA61A1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AUA6CA1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AWA21A1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AWA2CA1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-30AWA61A1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-200A
SGMXA-30AWA6CA1Output: 3.0 kW | Torque: 9.80 / 29.4 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-200A
SGMXA-40AUA21A1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AUA2CA1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-40AUA61A1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AUA6CA1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-40AWA21A1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AWA2CA1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-40AWA61A1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-40AWA6CA1Output: 4.0 kW | Torque: 12.6 / 37.8 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AUA21A1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AUA2CA1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AUA61A1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AUA6CA1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AWA21A1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AWA2CA1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-50AWA61A1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-330A
SGMXA-50AWA6CA1Output: 5.0 kW | Torque: 15.8 / 47.6 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-330A
SGMXA-70AUA21A1Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-550A
SGMXA-70AUA61A1Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-550A
SGMXA-70AWA21A1Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-550A
SGMXA-70AWA61A1Output: 7.0 kW | Torque: 22.3 / 54.0 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-550A

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
