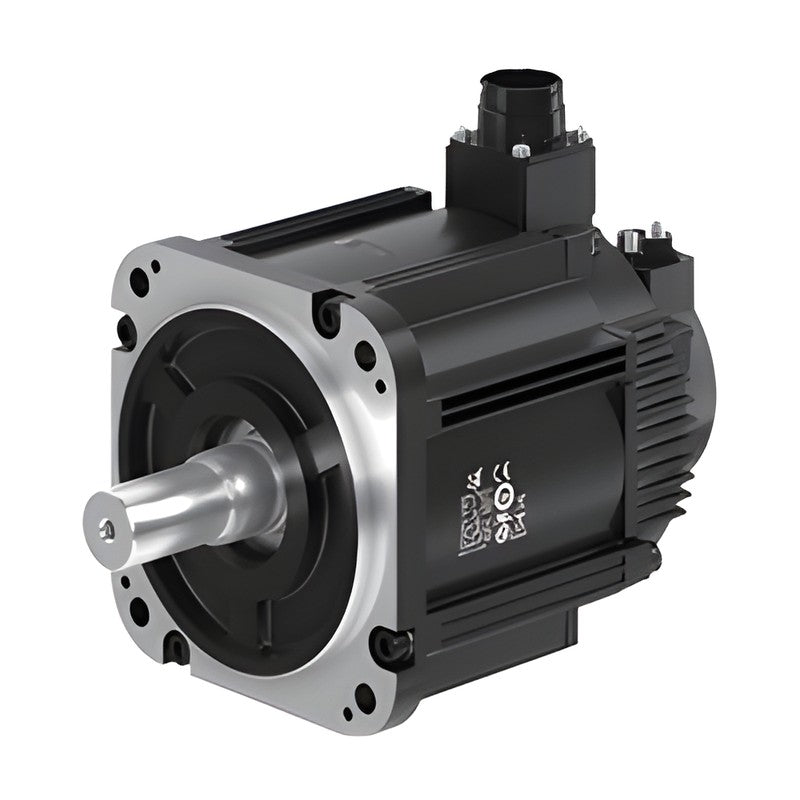

YASKAWA Sigma-X SGMXG Servo Motors (200 V, 300 W-15 kW)

YASKAWA Sigma-X SGMXG Servo Motors (200 V, 300 W-15 kW)

The YASKAWA Sigma-X SGMXG is a medium-inertia, high-torque AC servo motor from 300 W to 15 kW with a 26-bit serial encoder, designed for machine feed axes.

Key features

  • Medium inertia, high torque for machine feed-axis drives; rated speed 1500 min-1, max. 4000 min-1 (3000 min-1 for 11/15 kW)
  • 26-bit absolute encoder (U) or 26-bit batteryless absolute encoder (W)
  • Shaft end: straight without key (2, 03-20 only), straight no key with tap (8, 30-1E only), or key and tap (6)
  • Holding brake (C, 24 VDC) available; oil-seal versions (S, E) available to order - codes listed are without oil seal
  • Sigma-7 compatible encoder connector version (9th digit 2) available to order; codes listed use standard spec (1)
  • Higher peak torque with larger SGDXS SERVOPACKs (e.g. SGMXG-30A: 66.8 N·m with SGDXS-470A)

Specifications

Series Sigma-X SGMXG rotary servo motor
Supply voltage 200 VAC
Rated speed 1500 min-1
Insulation class UL: F, CE: F
Protection Totally enclosed, self-cooled, IP67
Vibration class V15
Ambient temperature 0 to 40 C (max. 60 C with derating)
Mounting Flange type, direct drive coupling
Combined SERVOPACK SGDXS-3R8A to 780A; SGDXW (03-09)
Model key SGMXG-[cap]A[enc]A[shaft][option]A[spec]
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 120-150
SGMXG-03AUA21A1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: None
SGMXG-03AUA2CA1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-03AUA61A1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-03AUA6CA1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-03AWA21A1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: None
SGMXG-03AWA2CA1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-03AWA61A1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-03AWA6CA1 Output: 300 W | Torque (rated/max): 1.96 / 5.88 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-05AUA21A1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: None
SGMXG-05AUA2CA1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-05AUA61A1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-05AUA6CA1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-05AWA21A1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: None
SGMXG-05AWA2CA1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-05AWA61A1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-05AWA6CA1 Output: 450 W | Torque (rated/max): 2.86 / 8.92 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-09AUA21A1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: None
SGMXG-09AUA2CA1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-09AUA61A1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-09AUA6CA1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-09AWA21A1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: None
SGMXG-09AWA2CA1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-09AWA61A1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-09AWA6CA1 Output: 850 W | Torque (rated/max): 5.39 / 14.2 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-13AUA21A1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: None
SGMXG-13AUA2CA1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-13AUA61A1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-13AUA6CA1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-13AWA21A1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: None
SGMXG-13AWA2CA1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-13AWA61A1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-13AWA6CA1 Output: 1.3 kW | Torque (rated/max): 8.34 / 23.3 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-20AUA21A1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: None
SGMXG-20AUA2CA1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-20AUA61A1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-20AUA6CA1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-20AWA21A1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: None
SGMXG-20AWA2CA1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake, 24 VDC
SGMXG-20AWA61A1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-20AWA6CA1 Output: 1.8 kW | Torque (rated/max): 11.5 / 28.7 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-30AUA61A1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-30AUA6CA1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-30AUA81A1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-30AUA8CA1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-30AWA61A1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-30AWA6CA1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-30AWA81A1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-30AWA8CA1 Output: 2.9 kW | Torque (rated/max): 18.6 / 54.0 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-44AUA61A1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-44AUA6CA1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-44AUA81A1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-44AUA8CA1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-44AWA61A1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-44AWA6CA1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-44AWA81A1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-44AWA8CA1 Output: 4.4 kW | Torque (rated/max): 28.4 / 71.6 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-55AUA61A1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-55AUA6CA1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-55AUA81A1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-55AUA8CA1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-55AWA61A1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-55AWA6CA1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-55AWA81A1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-55AWA8CA1 Output: 5.5 kW | Torque (rated/max): 35.0 / 102 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-75AUA61A1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-75AUA6CA1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-75AUA81A1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-75AUA8CA1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-75AWA61A1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-75AWA6CA1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-75AWA81A1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-75AWA8CA1 Output: 7.5 kW | Torque (rated/max): 48.0 / 119 N·m | Max. speed: 4000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-1AAUA61A1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-1AAUA6CA1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-1AAUA81A1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-1AAUA8CA1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-1AAWA61A1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-1AAWA6CA1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-1AAWA81A1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-1AAWA8CA1 Output: 11 kW | Torque (rated/max): 70.0 / 175 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-1EAUA61A1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-1EAUA6CA1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-1EAUA81A1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-1EAUA8CA1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
SGMXG-1EAWA61A1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: None
SGMXG-1EAWA6CA1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake, 24 VDC
SGMXG-1EAWA81A1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: None
SGMXG-1EAWA8CA1 Output: 15 kW | Torque (rated/max): 95.4 / 224 N·m | Max. speed: 3000 min-1 | Encoder: 26-bit batteryless absolute | Shaft: Straight, no key, tapped | Brake: Holding brake, 24 VDC
Servo MotorsYASKAWA
88 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X SGMXG Servo Motors (200 V, 300 W-15 kW)

Brand YASKAWA·Servo Motors

Available part numbers (88)

SGMXG-03AUA21A1, SGMXG-03AUA2CA1, SGMXG-03AUA61A1, SGMXG-03AUA6CA1, SGMXG-03AWA21A1, SGMXG-03AWA2CA1, SGMXG-03AWA61A1, SGMXG-03AWA6CA1, SGMXG-05AUA21A1, SGMXG-05AUA2CA1 + 78 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
