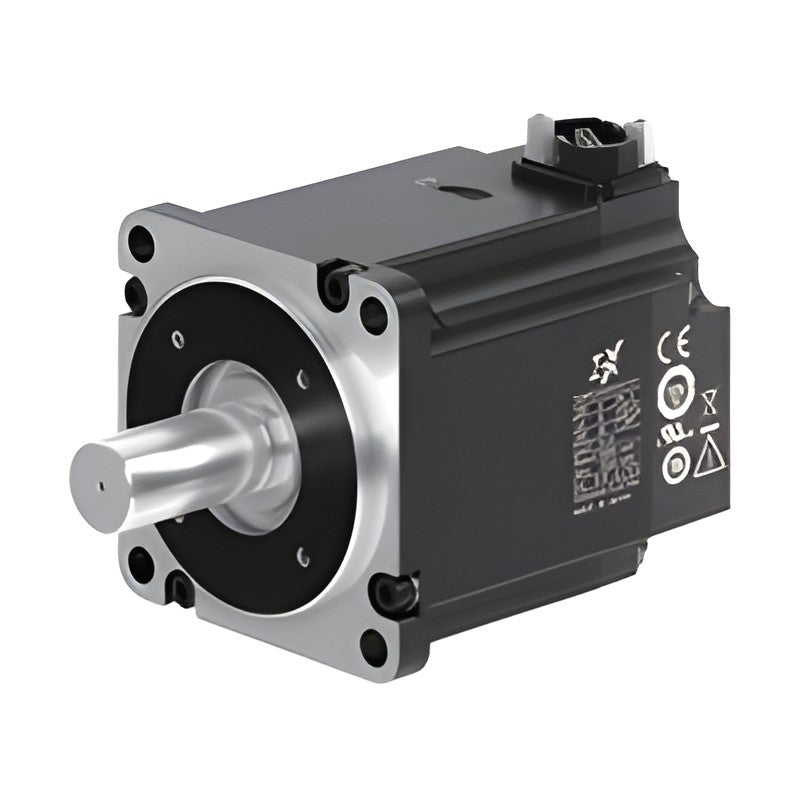

YASKAWA Sigma-X SGMXJ Rotary Servo Motors (50 W - 750 W, 200 V)

YASKAWA Sigma-X SGMXJ Rotary Servo Motors (50 W - 750 W, 200 V)

The YASKAWA Sigma-X SGMXJ is a medium-inertia, small-capacity 200 V rotary servo motor from 50 W to 750 W with a 26-bit serial encoder.

Key features

  • Medium inertia, small capacity: 50 W to 750 W rated output, 3000 min-1 rated speed, 7000 min-1 maximum speed.
  • 26-bit absolute encoder (U) or 26-bit batteryless absolute encoder (W).
  • Shaft ends: straight without key, straight with key and tap, or two flat seats.
  • Available without brake or with 24 VDC holding brake; oil seal (options S/E) and Sigma-7 compatible connector spec (9th digit 2) on request.
  • Totally enclosed, self-cooled IP67; combines with SGDXS, SGDXW and SGDXT SERVOPACKs.

Specifications

Series Sigma-X (Σ-X) rotary servo motor
Power supply voltage 200 VAC
Rated speed 3000 min-1
Time rating Continuous
Vibration class V15
Excitation Permanent magnet
Mounting Flange-mounted, direct drive coupling
Maximum speed 7000 min-1
Insulation class UL: B, CE: B
Protection Totally enclosed, self-cooled IP67
Model designation SGMXJ-[cap]A[enc]A[shaft][option]A1
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 35, 40, 58-73
SGMXJ-A5AUA21A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXJ-A5AUA2CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXJ-A5AUA61A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXJ-A5AUA6CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXJ-A5AUAB1A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXJ-A5AUABCA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXJ-A5AWA21A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXJ-A5AWA2CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXJ-A5AWA61A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXJ-A5AWA6CA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXJ-A5AWAB1A1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R70A
SGMXJ-A5AWABCA1 Output: 50 W | Torque: 0.159 / 0.557 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R70A
SGMXJ-01AUA21A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXJ-01AUA2CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXJ-01AUA61A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXJ-01AUA6CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXJ-01AUAB1A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXJ-01AUABCA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXJ-01AWA21A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXJ-01AWA2CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXJ-01AWA61A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXJ-01AWA6CA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXJ-01AWAB1A1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-R90A
SGMXJ-01AWABCA1 Output: 100 W | Torque: 0.318 / 1.11 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-R90A
SGMXJ-C2AUA21A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AUA2CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AUA61A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AUA6CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AUAB1A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AUABCA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AWA21A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AWA2CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AWA61A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AWA6CA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AWAB1A1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-C2AWABCA1 Output: 150 W | Torque: 0.477 / 1.67 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-02AUA21A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-02AUA2CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-02AUA61A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-02AUA6CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-02AUAB1A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-02AUABCA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-02AWA21A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-02AWA2CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-02AWA61A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-02AWA6CA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-02AWAB1A1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-1R6A
SGMXJ-02AWABCA1 Output: 200 W | Torque: 0.637 / 2.23 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-1R6A
SGMXJ-04AUA21A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXJ-04AUA2CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXJ-04AUA61A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXJ-04AUA6CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXJ-04AUAB1A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXJ-04AUABCA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXJ-04AWA21A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXJ-04AWA2CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXJ-04AWA61A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXJ-04AWA6CA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXJ-04AWAB1A1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-2R8A
SGMXJ-04AWABCA1 Output: 400 W | Torque: 1.27 / 4.46 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-2R8A
SGMXJ-06AUA21A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-06AUA2CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-06AUA61A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-06AUA6CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-06AUAB1A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-06AUABCA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-06AWA21A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-06AWA2CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-06AWA61A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-06AWA6CA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-06AWAB1A1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-06AWABCA1 Output: 600 W | Torque: 1.91 / 6.69 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-08AUA21A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-08AUA2CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-08AUA61A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-08AUA6CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-08AUAB1A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-08AUABCA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-08AWA21A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-08AWA2CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, without key | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-08AWA61A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-08AWA6CA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Straight, key and tap | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
SGMXJ-08AWAB1A1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Without brake | SERVOPACK: SGDXS-5R5A
SGMXJ-08AWABCA1 Output: 750 W | Torque: 2.39 / 8.36 N·m (rated/peak) | Encoder: 26-bit batteryless absolute | Shaft: Two flat seats | Brake: Holding brake (24 VDC) | SERVOPACK: SGDXS-5R5A
Servo MotorsYASKAWA
84 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X SGMXJ Rotary Servo Motors (50 W - 750 W, 200 V)

Brand YASKAWA·Servo Motors

Available part numbers (84)

SGMXJ-A5AUA21A1, SGMXJ-A5AUA2CA1, SGMXJ-A5AUA61A1, SGMXJ-A5AUA6CA1, SGMXJ-A5AUAB1A1, SGMXJ-A5AUABCA1, SGMXJ-A5AWA21A1, SGMXJ-A5AWA2CA1, SGMXJ-A5AWA61A1, SGMXJ-A5AWA6CA1 + 74 more — see full table ↓
