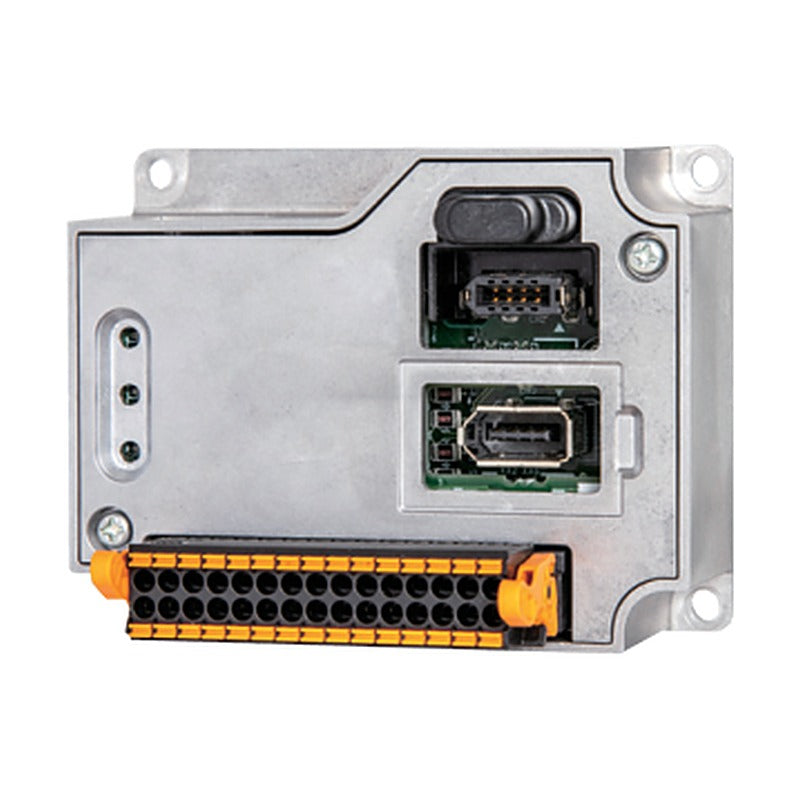

YASKAWA Sigma-X Sigma-LINK II Sensor Hubs (JUSP-SL2H)

YASKAWA Sigma-X Sigma-LINK II Sensor Hubs (JUSP-SL2H)

Sigma-LINK II sensor hubs that connect commercially available digital or analog sensors to a Sigma-X SERVOPACK over the encoder network.

Key features

  • Digital I/O type: 4 isolated high-speed inputs (also external latch) and 4 outputs, 500 mA/ch
  • Analog type: 4 inputs, +/-12 V voltage (16-bit) or 0-20 mA current (15-bit)
  • Powered via the Sigma-LINK II communication connector CN1 (5-24 VDC)
  • Counts as one node on Sigma-LINK II; daisy-chain via expansion connector CN2
  • IP20, -5 to 60 deg C; standard version has connector cover

Specifications

Brand YASKAWA
Series Sigma-X
Network Sigma-LINK II
Supply voltage 5 to 24 VDC via CN1
Protection IP20
Ambient temperature -5 to 60 deg C
Design revision A (first release)
Source YASKAWA Sigma-X Catalog (Korean ed.), p. 570-573
JUSP-SL2HD4400AA Type: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (sink) | Cover: With connector cover (std.)
JUSP-SL2HD4400AA1 Type: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (sink) | Cover: Without connector cover
JUSP-SL2HD4401AA Type: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (source) | Cover: With connector cover (std.)
JUSP-SL2HD4401AA1 Type: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (source) | Cover: Without connector cover
JUSP-SL2HA4000AA Type: Analog input | I/O: 4 voltage inputs | Cover: With connector cover (std.)
JUSP-SL2HA4000AA1 Type: Analog input | I/O: 4 voltage inputs | Cover: Without connector cover
JUSP-SL2HA4001AA Type: Analog input | I/O: 2 voltage + 2 current inputs | Cover: With connector cover (std.)
JUSP-SL2HA4001AA1 Type: Analog input | I/O: 2 voltage + 2 current inputs | Cover: Without connector cover
Servo PeripheralsYASKAWA
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA Sigma-X Sigma-LINK II Sensor Hubs (JUSP-SL2H)

Brand YASKAWA·Servo Peripherals

Available part numbers (8)

JUSP-SL2HD4400AA, JUSP-SL2HD4400AA1, JUSP-SL2HD4401AA, JUSP-SL2HD4401AA1, JUSP-SL2HA4000AA, JUSP-SL2HA4000AA1, JUSP-SL2HA4001AA, JUSP-SL2HA4001AA1

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JUSP-SL2HD4400AAType: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (sink) | Cover: With connector cover (std.)
JUSP-SL2HD4400AA1Type: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (sink) | Cover: Without connector cover
JUSP-SL2HD4401AAType: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (source) | Cover: With connector cover (std.)
JUSP-SL2HD4401AA1Type: Digital I/O | I/O: 4 DI (sink/source) + 4 DO (source) | Cover: Without connector cover
JUSP-SL2HA4000AAType: Analog input | I/O: 4 voltage inputs | Cover: With connector cover (std.)
JUSP-SL2HA4000AA1Type: Analog input | I/O: 4 voltage inputs | Cover: Without connector cover
JUSP-SL2HA4001AAType: Analog input | I/O: 2 voltage + 2 current inputs | Cover: With connector cover (std.)
JUSP-SL2HA4001AA1Type: Analog input | I/O: 2 voltage + 2 current inputs | Cover: Without connector cover
