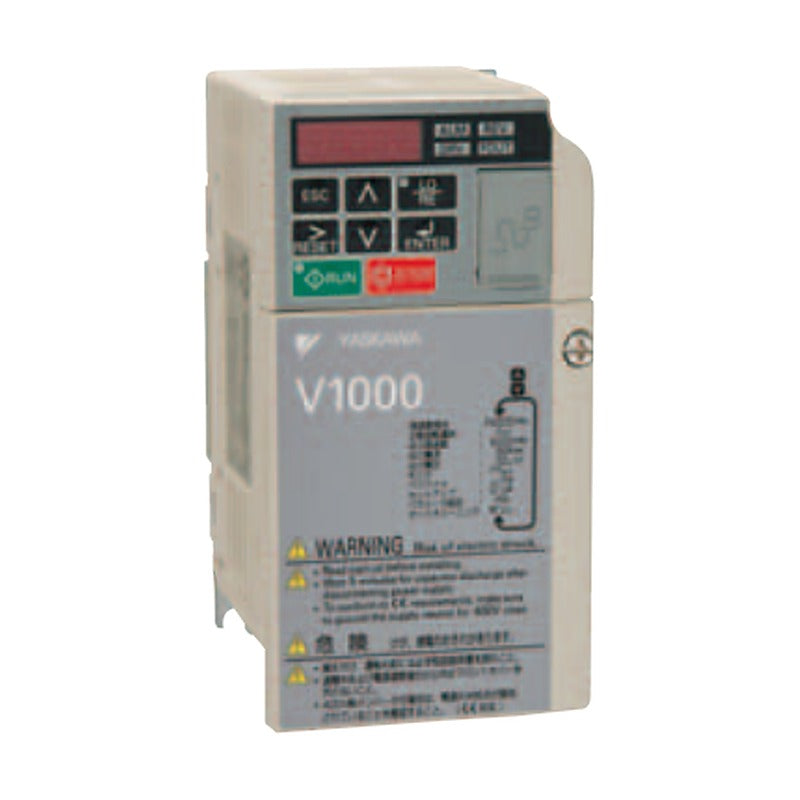

YASKAWA V1000 Compact Vector AC Drive (200 V class, 1-phase input)

YASKAWA V1000 Compact Vector AC Drive (200 V class, 1-phase input)

YASKAWA V1000 compact current-vector AC drives for single-phase 200-240 V supplies with three-phase motor output, covering 0.1-3.7 kW motors.

Key features

  • Model number key: CIMR-V + region (A Japan / T Asia) + voltage + A (standard) + rated current + enclosure + environment + design revision; codes here use environment A (standard) and design revision A as in the printed example CIMR-VT2A0001BAA.
  • All single-phase models (CIMR-V?BA0001-0018) are IP20 (enclosure letter B); NEMA Type 1 is obtained with the optional NEMA1 kit.
  • CIMR-VTBA0018 is a Heavy Duty rated model (3.7 kW HD).
  • Dual rating selected by parameter C6-01: Normal Duty 120% for 60 s (Swing PWM) or Heavy Duty 150% for 60 s.
  • Open-loop vector, V/f and PM open-loop vector control; 0.01-400 Hz output, 200% starting torque at 0.5 Hz.
  • Built-in MEMOBUS/Modbus RS-485/422, Safe Disable inputs (EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC61508 SIL2) and UL508C listing.

Specifications

Brand YASKAWA
Series V1000
Input 1-phase 200-240 V, 50/60 Hz
Max. output voltage 3-phase 200-240 V
Overload ND 120% 60 s / HD 150% 60 s
Carrier frequency 2-15 kHz
Max. output frequency 400 Hz
Enclosure letter B (IP20)
Source YASKAWA V1000 Catalog (Korean ed.), p. 18, 20-21, 24-25
CIMR-VTBA0001 Base model (specify enclosure) | Region: Asia (T) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIMR-VTBA0001BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIMR-VABA0001BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIMR-VTBA0002 Base model (specify enclosure) | Region: Asia (T) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIMR-VTBA0002BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIMR-VABA0002BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIMR-VTBA0003 Base model (specify enclosure) | Region: Asia (T) | ND: 0.75 kW / 3.3 A | HD: 0.4 kW / 3 A
CIMR-VTBA0003BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.75 kW / 3.3 A | HD: 0.4 kW / 3 A
CIMR-VABA0003BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.75 kW / 3.3 A | HD: 0.4 kW / 3 A
CIMR-VTBA0006 Base model (specify enclosure) | Region: Asia (T) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-VTBA0006BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-VABA0006BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-VTBA0010 Base model (specify enclosure) | Region: Asia (T) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-VTBA0010BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-VABA0010BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-VTBA0012 Base model (specify enclosure) | Region: Asia (T) | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-VTBA0012BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-VABA0012BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-VTBA0018 Base model (specify enclosure) | Region: Asia (T) | ND: Not rated (HD-only model) | HD: 3.7 kW / 17.5 A
CIMR-VTBA0018BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: Not rated (HD-only model) | HD: 3.7 kW / 17.5 A
CIMR-VABA0018BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: Not rated (HD-only model) | HD: 3.7 kW / 17.5 A
