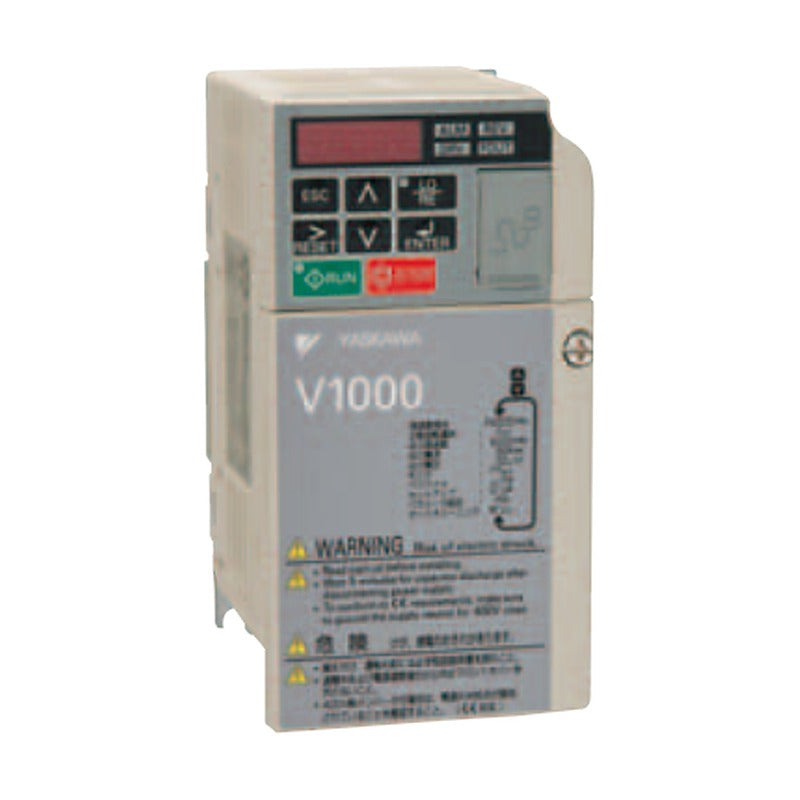

YASKAWA V1000 Compact Vector AC Drive (200 V class, 3-phase input)

YASKAWA V1000 Compact Vector AC Drive (200 V class, 3-phase input)

YASKAWA V1000 compact current-vector AC drives for three-phase 200-240 V supplies, covering 0.1-18.5 kW motors with Normal/Heavy Duty dual rating.

Key features

  • Model number key: CIMR-V + region (A Japan / T Asia) + voltage + A (standard) + rated current + enclosure + environment + design revision; codes here use environment A (standard) and design revision A as in the printed example CIMR-VT2A0001BAA.
  • Enclosure per model as printed: CIMR-V?2A0001-0020 are IP20 (B, NEMA Type 1 with option kit); 0030-0069 are NEMA Type 1 (F) as standard, IP00 with top/bottom covers removed.
  • Dual rating selected by parameter C6-01: Normal Duty 120% for 60 s (Swing PWM) or Heavy Duty 150% for 60 s.
  • Open-loop vector, V/f and PM open-loop vector control; 0.01-400 Hz output, 200% starting torque at 0.5 Hz.
  • Built-in MEMOBUS/Modbus RS-485/422, Safe Disable inputs (EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC61508 SIL2) and UL508C listing.

Specifications

Brand YASKAWA
Series V1000
Input 3-phase 200-240 V, 50/60 Hz
Max. output voltage 3-phase 200-240 V
Overload ND 120% 60 s / HD 150% 60 s
Carrier frequency 2-15 kHz
Max. output frequency 400 Hz
Braking transistor Built-in
Source YASKAWA V1000 Catalog (Korean ed.), p. 18, 20-21, 24-25
CIMR-VT2A0001 Base model (specify enclosure) | Region: Asia (T) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIMR-VT2A0001BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIMR-VA2A0001BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.2 kW / 1.2 A | HD: 0.1 kW / 0.8 A
CIMR-VT2A0002 Base model (specify enclosure) | Region: Asia (T) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIMR-VT2A0002BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIMR-VA2A0002BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.4 kW / 1.9 A | HD: 0.2 kW / 1.6 A
CIMR-VT2A0004 Base model (specify enclosure) | Region: Asia (T) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIMR-VT2A0004BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIMR-VA2A0004BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.75 kW / 3.5 A | HD: 0.4 kW / 3 A
CIMR-VT2A0006 Base model (specify enclosure) | Region: Asia (T) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-VT2A0006BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-VA2A0006BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.1 kW / 6 A | HD: 0.75 kW / 5 A
CIMR-VT2A0008 Base model (specify enclosure) | Region: Asia (T) | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIMR-VT2A0008BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIMR-VA2A0008BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.5 kW / 8 A | HD: 1.1 kW / 6.9 A
CIMR-VT2A0010 Base model (specify enclosure) | Region: Asia (T) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-VT2A0010BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-VA2A0010BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 2.2 kW / 9.6 A | HD: 1.5 kW / 8 A
CIMR-VT2A0012 Base model (specify enclosure) | Region: Asia (T) | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-VT2A0012BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-VA2A0012BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3 kW / 12 A | HD: 2.2 kW / 11 A
CIMR-VT2A0018 Base model (specify enclosure) | Region: Asia (T) | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIMR-VT2A0018BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIMR-VA2A0018BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3.7 kW / 17.5 A | HD: 3 kW / 14 A
CIMR-VT2A0020 Base model (specify enclosure) | Region: Asia (T) | ND: 5.5 kW / 19.6 A | HD: 3.7 kW / 17.5 A
CIMR-VT2A0020BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 5.5 kW / 19.6 A | HD: 3.7 kW / 17.5 A
CIMR-VA2A0020BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 5.5 kW / 19.6 A | HD: 3.7 kW / 17.5 A
CIMR-VT2A0030 Base model (specify enclosure) | Region: Asia (T) | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIMR-VT2A0030FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIMR-VA2A0030FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 7.5 kW / 30 A | HD: 5.5 kW / 25 A
CIMR-VT2A0040 Base model (specify enclosure) | Region: Asia (T) | ND: 11 kW / 40 A | HD: 7.5 kW / 33 A
CIMR-VT2A0040FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 11 kW / 40 A | HD: 7.5 kW / 33 A
CIMR-VA2A0040FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 11 kW / 40 A | HD: 7.5 kW / 33 A
CIMR-VT2A0056 Base model (specify enclosure) | Region: Asia (T) | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIMR-VT2A0056FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIMR-VA2A0056FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 15 kW / 56 A | HD: 11 kW / 47 A
CIMR-VT2A0069 Base model (specify enclosure) | Region: Asia (T) | ND: 18.5 kW / 69 A | HD: 15 kW / 60 A
CIMR-VT2A0069FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 18.5 kW / 69 A | HD: 15 kW / 60 A
CIMR-VA2A0069FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 18.5 kW / 69 A | HD: 15 kW / 60 A
