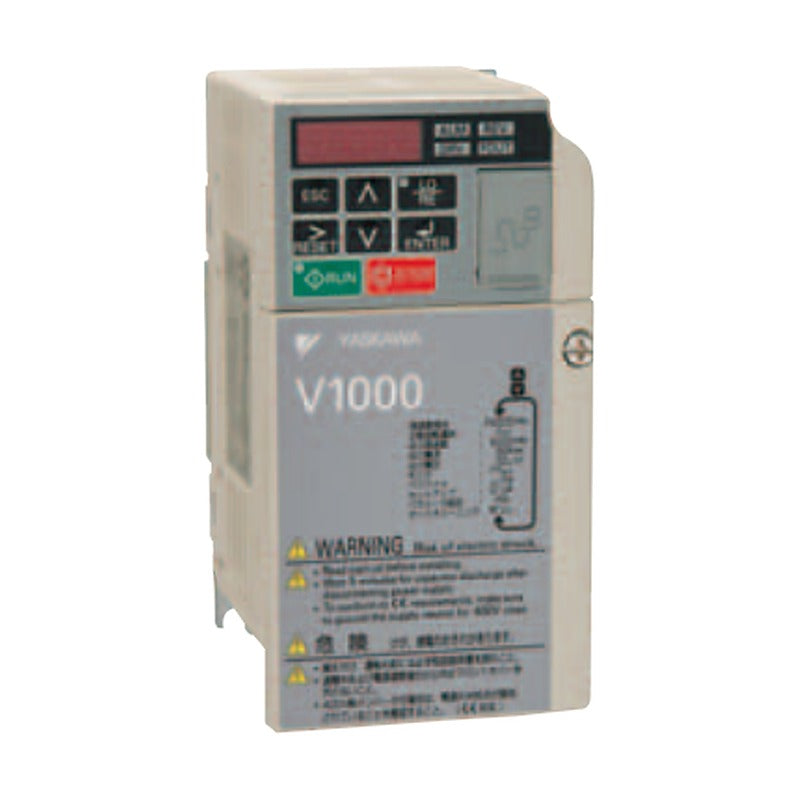

YASKAWA V1000 Compact Vector AC Drive (400 V class, 3-phase input)

YASKAWA V1000 Compact Vector AC Drive (400 V class, 3-phase input)

YASKAWA V1000 compact current-vector AC drives for three-phase 380-480 V supplies, covering 0.2-18.5 kW motors with Normal/Heavy Duty dual rating.

Key features

  • Model number key: CIMR-V + region (A Japan / T Asia) + voltage + A (standard) + rated current + enclosure + environment + design revision; codes here use environment A (standard) and design revision A as in the printed example CIMR-VT2A0001BAA.
  • Enclosure per model as printed: CIMR-V?4A0001-0011 are IP20 (B, NEMA Type 1 with option kit); 0018-0038 are NEMA Type 1 (F) as standard, IP00 with top/bottom covers removed.
  • Dual rating selected by parameter C6-01: Normal Duty 120% for 60 s (Swing PWM) or Heavy Duty 150% for 60 s.
  • Open-loop vector, V/f and PM open-loop vector control; 0.01-400 Hz output, 200% starting torque at 0.5 Hz.
  • Built-in MEMOBUS/Modbus RS-485/422, Safe Disable inputs (EN61800-5-1, ISO13849-1 Cat.3 PLd, IEC61508 SIL2) and UL508C listing.

Specifications

Brand YASKAWA
Series V1000
Input 3-phase 380-480 V, 50/60 Hz
Max. output voltage 3-phase 380-480 V
Overload ND 120% 60 s / HD 150% 60 s
Carrier frequency 2-15 kHz
Max. output frequency 400 Hz
Braking transistor Built-in
Source YASKAWA V1000 Catalog (Korean ed.), p. 18, 20-21, 24-25
CIMR-VT4A0001 Base model (specify enclosure) | Region: Asia (T) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIMR-VT4A0001BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIMR-VA4A0001BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.4 kW / 1.2 A | HD: 0.2 kW / 1.2 A
CIMR-VT4A0002 Base model (specify enclosure) | Region: Asia (T) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIMR-VT4A0002BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIMR-VA4A0002BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 0.75 kW / 2.1 A | HD: 0.4 kW / 1.8 A
CIMR-VT4A0004 Base model (specify enclosure) | Region: Asia (T) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIMR-VT4A0004BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIMR-VA4A0004BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 1.5 kW / 4.1 A | HD: 0.75 kW / 3.4 A
CIMR-VT4A0005 Base model (specify enclosure) | Region: Asia (T) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIMR-VT4A0005BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIMR-VA4A0005BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 2.2 kW / 5.4 A | HD: 1.5 kW / 4.8 A
CIMR-VT4A0007 Base model (specify enclosure) | Region: Asia (T) | ND: 3 kW / 6.9 A | HD: 2.2 kW / 5.5 A
CIMR-VT4A0007BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3 kW / 6.9 A | HD: 2.2 kW / 5.5 A
CIMR-VA4A0007BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3 kW / 6.9 A | HD: 2.2 kW / 5.5 A
CIMR-VT4A0009 Base model (specify enclosure) | Region: Asia (T) | ND: 3.7 kW / 8.8 A | HD: 3 kW / 7.2 A
CIMR-VT4A0009BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3.7 kW / 8.8 A | HD: 3 kW / 7.2 A
CIMR-VA4A0009BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 3.7 kW / 8.8 A | HD: 3 kW / 7.2 A
CIMR-VT4A0011 Base model (specify enclosure) | Region: Asia (T) | ND: 5.5 kW / 11.1 A | HD: 3.7 kW / 9.2 A
CIMR-VT4A0011BAA Region: Asia (T) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 5.5 kW / 11.1 A | HD: 3.7 kW / 9.2 A
CIMR-VA4A0011BAA Region: Japan (A) | Enclosure: IP20 (NEMA 1 with option kit) | ND: 5.5 kW / 11.1 A | HD: 3.7 kW / 9.2 A
CIMR-VT4A0018 Base model (specify enclosure) | Region: Asia (T) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIMR-VT4A0018FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIMR-VA4A0018FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 7.5 kW / 17.5 A | HD: 5.5 kW / 14.8 A
CIMR-VT4A0023 Base model (specify enclosure) | Region: Asia (T) | ND: 11 kW / 23 A | HD: 7.5 kW / 18 A
CIMR-VT4A0023FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 11 kW / 23 A | HD: 7.5 kW / 18 A
CIMR-VA4A0023FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 11 kW / 23 A | HD: 7.5 kW / 18 A
CIMR-VT4A0031 Base model (specify enclosure) | Region: Asia (T) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIMR-VT4A0031FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIMR-VA4A0031FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 15 kW / 31 A | HD: 11 kW / 24 A
CIMR-VT4A0038 Base model (specify enclosure) | Region: Asia (T) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIMR-VT4A0038FAA Region: Asia (T) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
CIMR-VA4A0038FAA Region: Japan (A) | Enclosure: NEMA Type 1 (IP00 w/o covers) | ND: 18.5 kW / 38 A | HD: 15 kW / 31 A
AC DrivesYASKAWA
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA V1000 Compact Vector AC Drive (400 V class, 3-phase input)

Brand YASKAWA·AC Drives

Available part numbers (33)

CIMR-VT4A0001, CIMR-VT4A0001BAA, CIMR-VA4A0001BAA, CIMR-VT4A0002, CIMR-VT4A0002BAA, CIMR-VA4A0002BAA, CIMR-VT4A0004, CIMR-VT4A0004BAA, CIMR-VA4A0004BAA, CIMR-VT4A0005 + 23 more — see full table ↓
