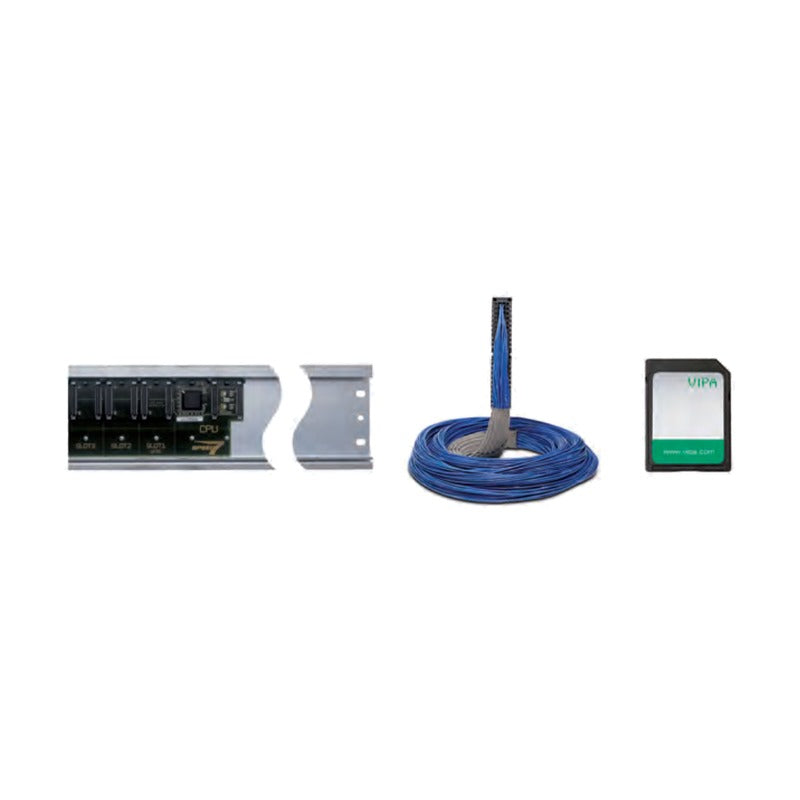

YASKAWA VIPA 300S Accessories (MMC/MCC, Rails, Front Connectors)

YASKAWA VIPA 300S Accessories (MMC/MCC, Rails, Front Connectors)

Accessories for the 300S system: MMC and MCC memory cards, SPEED-Bus and standard profile rails, and front connectors.

Key features

  • MMC card for program and data storage on SPEED7 CPUs
  • Memory Configuration Cards (MCC) 32 kB...8 MB expand work memory without changing the CPU
  • BP 391 SPEED-Bus profile rails with 2, 6 or 10 SPEED-Bus slots
  • Standard profile rails 160...2000 mm, also in ECO packs
  • 20- and 40-pole front connectors (cage clamp or screw) and pre-wired front connectors

Specifications

Brand YASKAWA VIPA
System 300S
Compatible CPUs 300S SPEED7 CPUs
Memory cards MMC / MCC
Rail lengths 160...2000 mm
Front connectors 20-pole / 40-pole
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 125-126
953-0KX10 Type: MMC - MultiMediaCard | Description: Memory for SPEED7 CPU
953-1LE00 Type: MCC 32 kByte | Description: 16 kB program / 16 kB data
953-1LF00 Type: MCC 64 kByte | Description: 32 kB program / 32 kB data
953-1LG00 Type: MCC 128 kByte | Description: 64 kB program / 64 kB data
953-1LH00 Type: MCC 256 kByte | Description: 128 kB program / 128 kB data
953-1LJ00 Type: MCC 512 kByte | Description: 256 kB program / 256 kB data
953-1LK00 Type: MCC 1 MByte | Description: 512 kB program / 512 kB data
953-1LL00 Type: MCC 2 MByte | Description: 1 MB program / 1 MB data
953-1LM00 Type: MCC 4 MByte | Description: 2 MB program / 2 MB data
953-1LP00 Type: MCC 8 MByte | Description: 4 MB program / 4 MB data
391-1AF10 Type: BP 391 - SPEED-Bus rail | Description: 530 mm, 2 SPEED-Bus slots
391-1AF30 Type: BP 391 - SPEED-Bus rail | Description: 530 mm, 6 SPEED-Bus slots
391-1AF50 Type: BP 391 - SPEED-Bus rail | Description: 530 mm, 10 SPEED-Bus slots
391-1AJ10 Type: BP 391 - SPEED-Bus rail | Description: 830 mm, 2 slots, left-aligned
391-1AJ30 Type: BP 391 - SPEED-Bus rail | Description: 830 mm, 6 slots, left-aligned
391-1AJ50 Type: BP 391 - SPEED-Bus rail | Description: 830 mm, 10 slots, left-aligned
390-1AB60 Type: Profile rail | Description: Length 160 mm
390-1AE80 Type: Profile rail | Description: Length 482 mm
390-1AF30 Type: Profile rail | Description: Length 530 mm
390-1AJ30 Type: Profile rail | Description: Length 830 mm
390-9AB60 Type: Profile rail | Description: 160 mm, ECO pack 100 pcs
390-9AE80 Type: Profile rail | Description: 482 mm, ECO pack 32 pcs
390-9AF30 Type: Profile rail | Description: 530 mm, ECO pack 32 pcs
390-9AJ30 Type: Profile rail | Description: 830 mm, ECO pack 20 pcs
390-9BC00 Type: Profile rail | Description: 2000 mm, ECO pack 10 pcs
392-1BJ00 Type: Front connector | Description: 20-pole, cage clamp
392-1AJ00 Type: Front connector | Description: 20-pole, screw terminal
392-9AJ00 Type: Front connector | Description: 20-pole, screw, ECO pack 100 pcs
392-1BM01 Type: Front connector | Description: 40-pole, cage clamp
392-1AM00 Type: Front connector | Description: 40-pole, screw terminal
392-9AM00 Type: Front connector | Description: 40-pole, screw, ECO pack 100 pcs
922-3BC50 Type: Pre-wired front connector | Description: 20-pin, 0.5 mm², 2.5 m
922-3BD20 Type: Pre-wired front connector | Description: 20-pin, 0.5 mm², 3.2 m
922-3BF00 Type: Pre-wired front connector | Description: 20-pin, 0.5 mm², 5.0 m
922-6BC50 Type: Pre-wired front connector | Description: 40-pin, 0.5 mm², 2.5 m
922-6BD20 Type: Pre-wired front connector | Description: 40-pin, 0.5 mm², 3.2 m
922-6BF00 Type: Pre-wired front connector | Description: 40-pin, 0.5 mm², 5.0 m
PLC AccessoriesYASKAWA
37 product codes available in this family
