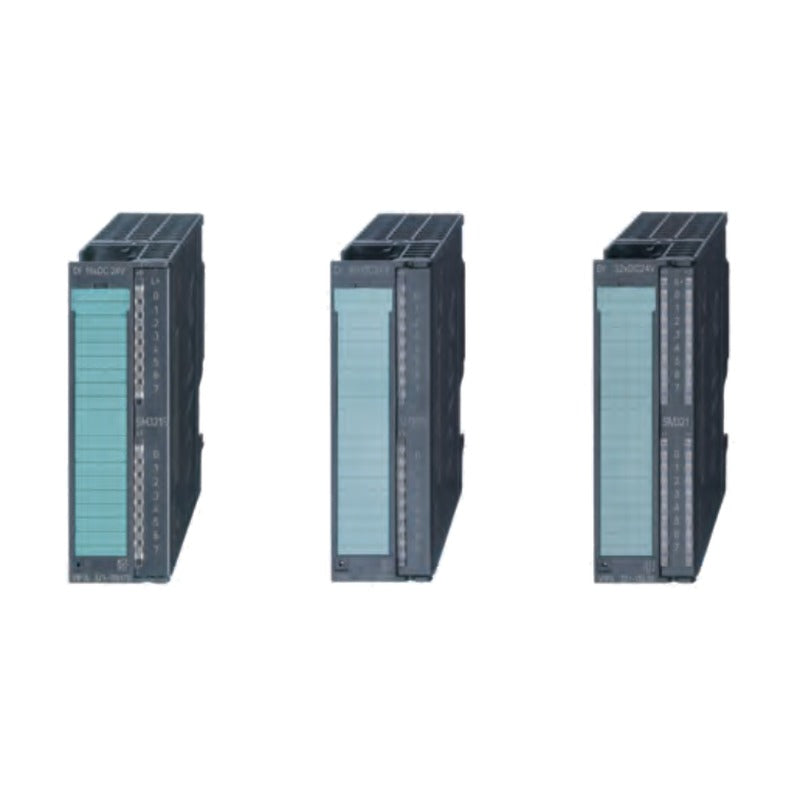

YASKAWA VIPA 300S Digital I/O Modules (SM 321 / 322 / 323)

YASKAWA VIPA 300S Digital I/O Modules (SM 321 / 322 / 323)

300S SM 321 digital input, SM 322 digital output and SM 323 digital I/O modules, including fast SPEED-Bus versions.

Key features

  • 16 and 32-point DC 24 V input, output and combined I/O modules
  • AC 120/230 V input and output modules and a 16-point relay output module
  • SPEED-Bus FAST versions (321-1BH70, 322-1BH70, 323-1BH70) for high-speed I/O
  • Output module with manual/auto switches (322-1BH60)
  • Clearly readable front label strips; front connector ordered separately

Specifications

Brand YASKAWA VIPA
System 300S
Front connector Sold separately (392-...)
Operating temperature 0 to 60 °C
Storage temperature -25 to 70 °C
Certification UL508
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 97-106
321-1BH01 Type: SM 321 | Function: Digital input | Points: 16 DI | Rating / feature: DC 24 V
321-1BH70 Type: SM 321S - SPEED-Bus | Function: Fast digital input | Points: 16 DI | Rating / feature: Alarm/ETS configurable
321-1BL00 Type: SM 321 | Function: Digital input | Points: 32 DI | Rating / feature: DC 24 V
321-1FH00 Type: SM 321 | Function: Digital input | Points: 16 DI, 4 per group | Rating / feature: AC 120/230 V
322-1BF01 Type: SM 322 | Function: Digital output | Points: 8 DO, 4 per group | Rating / feature: 2 A
322-1BH01 Type: SM 322 | Function: Digital output | Points: 16 DO, 8 per group | Rating / feature: 1 A
322-1BH41 Type: SM 322 | Function: Digital output | Points: 16 DO, 8 per group | Rating / feature: DC 24 V, 2 A
322-1BH60 Type: SM 322 | Function: Digital output | Points: 16 DO + 1 enable input | Rating / feature: 16 manual/auto switches, 0.5 A
322-1BH70 Type: SM 322S - SPEED-Bus | Function: Fast digital output | Points: 16 DO | Rating / feature: 0.5 A
322-1BL00 Type: SM 322 | Function: Digital output | Points: 32 DO, 8 per group | Rating / feature: DC 24 V, 1 A
322-1HH00 Type: SM 322 | Function: Relay output | Points: 16 DO, 8 per group | Rating / feature: AC 230 V / DC 30 V, 5 A
322-5FF00 Type: SM 322 | Function: Digital output | Points: 8 DO, 1 per group | Rating / feature: AC 120/230 V, 2 A
323-1BH00 Type: SM 323 | Function: Digital I/O | Points: 16 DI or DO | Rating / feature: Diagnostics, 1 A
323-1BH01 Type: SM 323 | Function: Digital I/O | Points: 8 DI / 8 DO | Rating / feature: 1 A
323-1BH70 Type: SM 323S - SPEED-Bus | Function: Fast digital I/O | Points: 16 DI/DO | Rating / feature: 0.5 A
323-1BL00 Type: SM 323 | Function: Digital I/O | Points: 16 DI / 16 DO | Rating / feature: 1 A
PLC I/O ModulesYASKAWA
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA VIPA 300S Digital I/O Modules (SM 321 / 322 / 323)

Brand YASKAWA·PLC I/O Modules

Available part numbers (16)

321-1BH01, 321-1BH70, 321-1BL00, 321-1FH00, 322-1BF01, 322-1BH01, 322-1BH41, 322-1BH60, 322-1BH70, 322-1BL00 + 6 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
