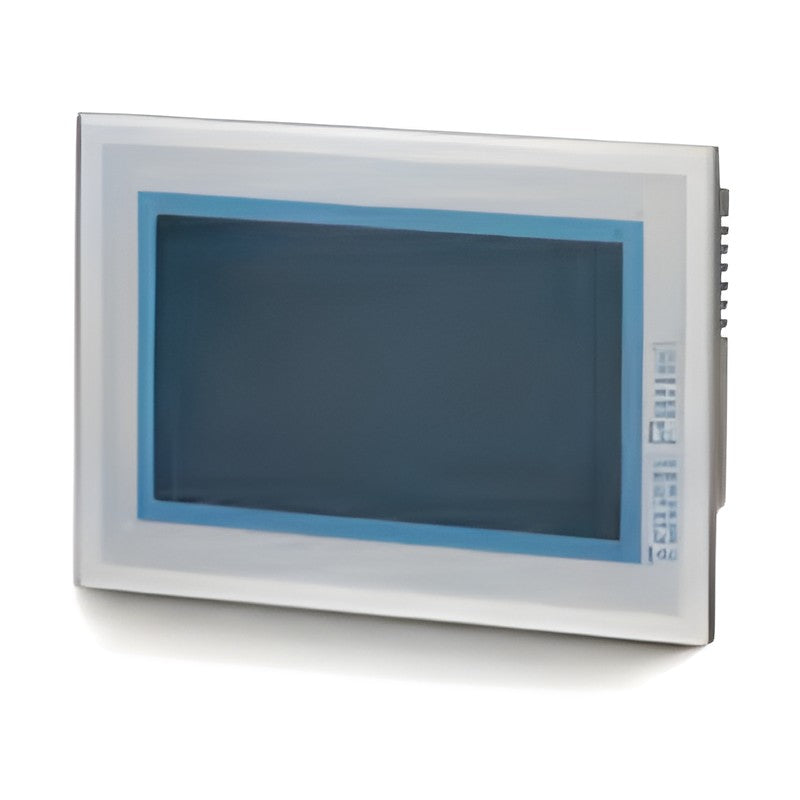

YASKAWA VIPA HMI eco Panels & Accessories (TP 607LC / TP 610LC)

YASKAWA VIPA HMI eco Panels & Accessories (TP 607LC / TP 610LC)

YASKAWA VIPA eco Panel touch panels on Windows Embedded CE 6.0 with Movicon Basic runtime, plus MPI/DP option and memory cards.

Key features

  • 7-inch (800x480) and 10-inch (1024x768) TFT colour resistive touch screens
  • Windows Embedded CE 6.0 Core with Movicon Basic runtime pre-installed
  • RS232, RS232/RS422/485, USB-A and Ethernet RJ45; MPI/PROFIBUS-DP via option 961-0MP0
  • Fanless, disc-free operation; IP65 front / IP20 rear
  • Memory expansion with CF or SD cards (1 GB / 2 GB)

Specifications

Brand YASKAWA VIPA
Product line HMI eco Panel
Supply voltage DC 24 V (DC 20.4...28.8 V)
Operating system Windows Embedded CE 6.0
Front protection IP65
Operating temperature 0 to 50 °C
Certification UL508
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 127-134
62H-MDC0-DH Type: Touch Panel TP 607LC | Description: 7 in, 800x480, ARM11 533 MHz
62K-NHC0-DH Type: Touch Panel TP 610LC | Description: 10 in, 1024x768, Cortex-A8 1 GHz
961-0MP0 Type: MPI/PROFIBUS-DP interface | Description: MPI/DP option for eco Panel
574-2AH00 Type: Compact Flash (CF) 1 GByte | Description: Memory for touch panel
574-2AI00 Type: Compact Flash (CF) 2 GByte | Description: Memory for touch panel
953-1SH00 Type: Secure Digital (SD) 1 GByte | Description: Memory for touch panel
953-1SI00 Type: Secure Digital (SD) 2 GByte | Description: Memory for touch panel
PLC AccessoriesYASKAWA
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA VIPA HMI eco Panels & Accessories (TP 607LC / TP 610LC)

Brand YASKAWA·PLC Accessories

Available part numbers (7)

62H-MDC0-DH, 62K-NHC0-DH, 961-0MP0, 574-2AH00, 574-2AI00, 953-1SH00, 953-1SI00

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
62H-MDC0-DHType: Touch Panel TP 607LC | Description: 7 in, 800x480, ARM11 533 MHz
62K-NHC0-DHType: Touch Panel TP 610LC | Description: 10 in, 1024x768, Cortex-A8 1 GHz
961-0MP0Type: MPI/PROFIBUS-DP interface | Description: MPI/DP option for eco Panel
574-2AH00Type: Compact Flash (CF) 1 GByte | Description: Memory for touch panel
574-2AI00Type: Compact Flash (CF) 2 GByte | Description: Memory for touch panel
953-1SH00Type: Secure Digital (SD) 1 GByte | Description: Memory for touch panel
953-1SI00Type: Secure Digital (SD) 2 GByte | Description: Memory for touch panel
