• YASKAWA VIPA SLIO Analog I/O Modules (SM 031 / SM 032)
1 1

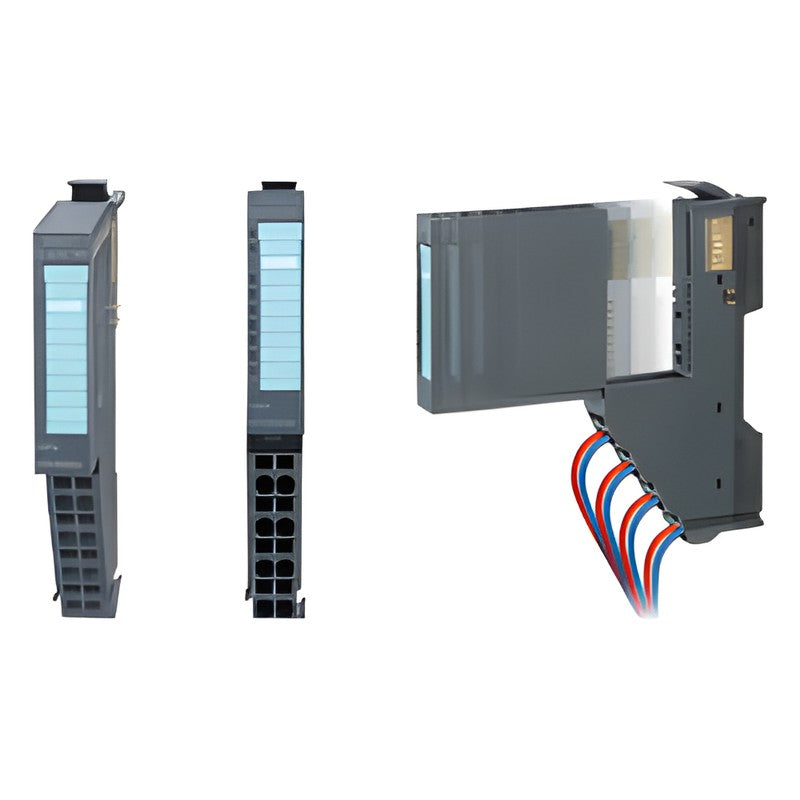

YASKAWA VIPA SLIO Analog I/O Modules (SM 031 / SM 032)

YASKAWA VIPA SLIO Analog I/O Modules (SM 031 / SM 032)

SLIO SM 031 analog input and SM 032 analog output modules with 2 or 4 channels in 12-bit or 16-bit resolution.

Key features

  • Voltage inputs 0...10 V and -10...+10 V, current inputs 0(4)...20 mA
  • 2-wire 4...20 mA transmitter inputs
  • Thermocouple (-80...+80 mV) and 0...3000 ohm resistance / RTD inputs (2/3/4-wire)
  • Analog outputs for 0...10 V, -10...+10 V and 0(4)...20 mA
  • 12-bit and 16-bit resolution versions

Specifications

Brand YASKAWA VIPA
System SLIO
Rated load voltage DC 24 V
Cable length (shielded) 200 m
Mounting 35 mm profile rail
Operating temperature 0 to 60 °C
Certification UL508
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 32-47
031-1BB10 Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 4...20 mA, 2-wire
031-1BB30 Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 0...10 V
031-1BB40 Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 0(4)...20 mA
031-1BB60 Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 4...20 mA, 2-wire
031-1BB70 Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: -10...+10 V
031-1BB90 Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: Thermocouple, -80...+80 mV
031-1BD30 Type: SM 031 | Function: Analog input | Channels: 4 ch, 12 bit | Range: 0...10 V
031-1BD40 Type: SM 031 | Function: Analog input | Channels: 4 ch, 12 bit | Range: 0(4)...20 mA
031-1BD70 Type: SM 031 | Function: Analog input | Channels: 4 ch, 12 bit | Range: -10...+10 V
031-1BD80 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...3000 ohm, 2/3/4-wire
031-1CB30 Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: 0...10 V
031-1CB40 Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: 0(4)...20 mA
031-1CB70 Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: -10...+10 V
031-1CD30 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...10 V
031-1CD35 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...10 V
031-1CD40 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0(4)...20 mA
031-1CD45 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0(4)...20 mA
031-1CD70 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: -10...+10 V
031-1LB90 Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: Thermocouple, fewer param. bytes
031-1LD80 Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...3000 ohm, fewer param. bytes
032-1BB30 Type: SM 032 | Function: Analog output | Channels: 2 ch, 12 bit | Range: 0...10 V
032-1BB40 Type: SM 032 | Function: Analog output | Channels: 2 ch, 12 bit | Range: 0(4)...20 mA
032-1BB70 Type: SM 032 | Function: Analog output | Channels: 2 ch, 12 bit | Range: -10...+10 V
032-1BD30 Type: SM 032 | Function: Analog output | Channels: 4 ch, 12 bit | Range: 0...10 V
032-1BD40 Type: SM 032 | Function: Analog output | Channels: 4 ch, 12 bit | Range: 0(4)...20 mA
032-1BD70 Type: SM 032 | Function: Analog output | Channels: 4 ch, 12 bit | Range: -10...+10 V
032-1CB30 Type: SM 032 | Function: Analog output | Channels: 2 ch, 16 bit | Range: 0...10 V
032-1CB70 Type: SM 032 | Function: Analog output | Channels: 2 ch, 16 bit | Range: -10...+10 V
032-1CD30 Type: SM 032 | Function: Analog output | Channels: 4 ch, 16 bit | Range: 0...10 V
032-1CD70 Type: SM 032 | Function: Analog output | Channels: 4 ch, 16 bit | Range: -10...+10 V
PLC I/O ModulesYASKAWA
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA VIPA SLIO Analog I/O Modules (SM 031 / SM 032)

Brand YASKAWA·PLC I/O Modules

Available part numbers (30)

031-1BB10, 031-1BB30, 031-1BB40, 031-1BB60, 031-1BB70, 031-1BB90, 031-1BD30, 031-1BD40, 031-1BD70, 031-1BD80 + 20 more — see full table ↓

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
031-1BB10Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 4...20 mA, 2-wire
031-1BB30Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 0...10 V
031-1BB40Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 0(4)...20 mA
031-1BB60Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: 4...20 mA, 2-wire
031-1BB70Type: SM 031 | Function: Analog input | Channels: 2 ch, 12 bit | Range: -10...+10 V
031-1BB90Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: Thermocouple, -80...+80 mV
031-1BD30Type: SM 031 | Function: Analog input | Channels: 4 ch, 12 bit | Range: 0...10 V
031-1BD40Type: SM 031 | Function: Analog input | Channels: 4 ch, 12 bit | Range: 0(4)...20 mA
031-1BD70Type: SM 031 | Function: Analog input | Channels: 4 ch, 12 bit | Range: -10...+10 V
031-1BD80Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...3000 ohm, 2/3/4-wire
031-1CB30Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: 0...10 V
031-1CB40Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: 0(4)...20 mA
031-1CB70Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: -10...+10 V
031-1CD30Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...10 V
031-1CD35Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...10 V
031-1CD40Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0(4)...20 mA
031-1CD45Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0(4)...20 mA
031-1CD70Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: -10...+10 V
031-1LB90Type: SM 031 | Function: Analog input | Channels: 2 ch, 16 bit | Range: Thermocouple, fewer param. bytes
031-1LD80Type: SM 031 | Function: Analog input | Channels: 4 ch, 16 bit | Range: 0...3000 ohm, fewer param. bytes
032-1BB30Type: SM 032 | Function: Analog output | Channels: 2 ch, 12 bit | Range: 0...10 V
032-1BB40Type: SM 032 | Function: Analog output | Channels: 2 ch, 12 bit | Range: 0(4)...20 mA
032-1BB70Type: SM 032 | Function: Analog output | Channels: 2 ch, 12 bit | Range: -10...+10 V
032-1BD30Type: SM 032 | Function: Analog output | Channels: 4 ch, 12 bit | Range: 0...10 V
032-1BD40Type: SM 032 | Function: Analog output | Channels: 4 ch, 12 bit | Range: 0(4)...20 mA
032-1BD70Type: SM 032 | Function: Analog output | Channels: 4 ch, 12 bit | Range: -10...+10 V
032-1CB30Type: SM 032 | Function: Analog output | Channels: 2 ch, 16 bit | Range: 0...10 V
032-1CB70Type: SM 032 | Function: Analog output | Channels: 2 ch, 16 bit | Range: -10...+10 V
032-1CD30Type: SM 032 | Function: Analog output | Channels: 4 ch, 16 bit | Range: 0...10 V
032-1CD70Type: SM 032 | Function: Analog output | Channels: 4 ch, 16 bit | Range: -10...+10 V
