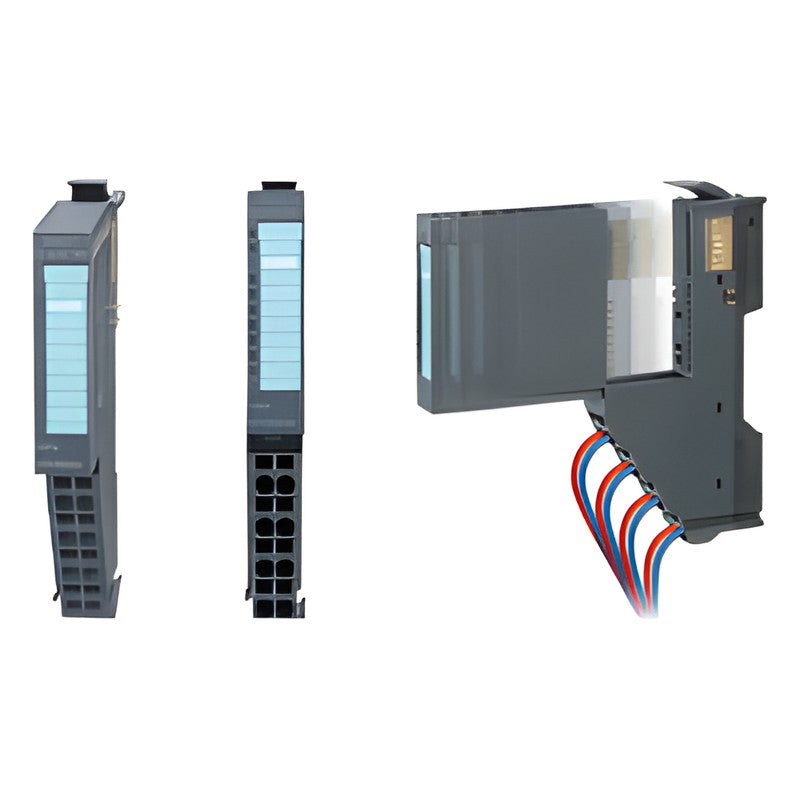

YASKAWA VIPA SLIO Digital I/O Modules (SM 021 / SM 022)

YASKAWA VIPA SLIO Digital I/O Modules (SM 021 / SM 022)

SLIO SM 021 digital input and SM 022 digital output electronic modules with 2, 4 or 8 channels for DC 24 V sensors and actuators.

Key features

  • 2-, 4- and 8-channel versions; electronic module plugs onto a terminal module
  • Variants with fast inputs, NPN (active-low) logic, time stamp and PWM
  • Relay output module for DC 30 V / AC 230 V, 3 A
  • Safety input and output versions (021-1SD00 / 022-1SD00)
  • Channel status LEDs and replaceable electronics without rewiring

Specifications

Brand YASKAWA VIPA
System SLIO
Signal voltage DC 24 V
Mounting 35 mm profile rail
Operating temperature 0 to 60 °C
Storage temperature -25 to 70 °C
Certification UL508
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 20-31
021-1BB00 Type: SM 021 | Function: Digital input | Channels: 2 DI | Feature: Standard
021-1BB10 Type: SM 021 | Function: Digital input | Channels: 2 DI | Feature: Fast, input filter 2 µs...4 ms
021-1BB50 Type: SM 021 | Function: Digital input | Channels: 2 DI | Feature: Active low input (NPN)
021-1BB70 Type: SM 021 | Function: Digital input | Channels: 2 DI | Feature: Time stamp
021-1BD00 Type: SM 021 | Function: Digital input | Channels: 4 DI | Feature: Standard
021-1BD10 Type: SM 021 | Function: Digital input | Channels: 4 DI | Feature: Fast, input filter 2 µs...4 ms
021-1BD40 Type: SM 021 | Function: Digital input | Channels: 4 DI | Feature: 2/3-wire connection
021-1BD50 Type: SM 021 | Function: Digital input | Channels: 4 DI | Feature: Active low input (NPN)
021-1BD70 Type: SM 021 | Function: Digital input | Channels: 4 DI | Feature: Time stamp
021-1BF00 Type: SM 021 | Function: Digital input | Channels: 8 DI | Feature: Standard
021-1BF50 Type: SM 021 | Function: Digital input | Channels: 8 DI | Feature: Active low input (NPN)
021-1SD00 Type: SM 021 | Function: Digital input | Channels: 4 DI | Feature: Safety
022-1BB00 Type: SM 022 | Function: Digital output | Channels: 2 DO | Feature: Output current 0.5 A
022-1BB20 Type: SM 022 | Function: Digital output | Channels: 2 DO | Feature: Output current 2 A
022-1BB50 Type: SM 022 | Function: Digital output | Channels: 2 DO | Feature: Low-side (NPN), 0.5 A
022-1BB70 Type: SM 022 | Function: Digital output | Channels: 2 DO | Feature: Time stamp, 0.5 A
022-1BB90 Type: SM 022 | Function: Digital output | Channels: 2 DO | Feature: PWM
022-1BD00 Type: SM 022 | Function: Digital output | Channels: 4 DO | Feature: Output current 0.5 A
022-1BD20 Type: SM 022 | Function: Digital output | Channels: 4 DO | Feature: Output current 2 A
022-1BD50 Type: SM 022 | Function: Digital output | Channels: 4 DO | Feature: Low-side (NPN), 0.5 A
022-1BD70 Type: SM 022 | Function: Digital output | Channels: 4 DO | Feature: Time stamp, 0.5 A
022-1BF00 Type: SM 022 | Function: Digital output | Channels: 8 DO | Feature: Output current 0.5 A
022-1BF50 Type: SM 022 | Function: Digital output | Channels: 8 DO | Feature: Low-side (NPN), 0.5 A
022-1HB10 Type: SM 022 | Function: Relay output | Channels: 2 DO | Feature: DC 30 V / AC 230 V, 3 A
022-1SD00 Type: SM 022 | Function: Digital output | Channels: 4 DO | Feature: Safety, 0.5 A
