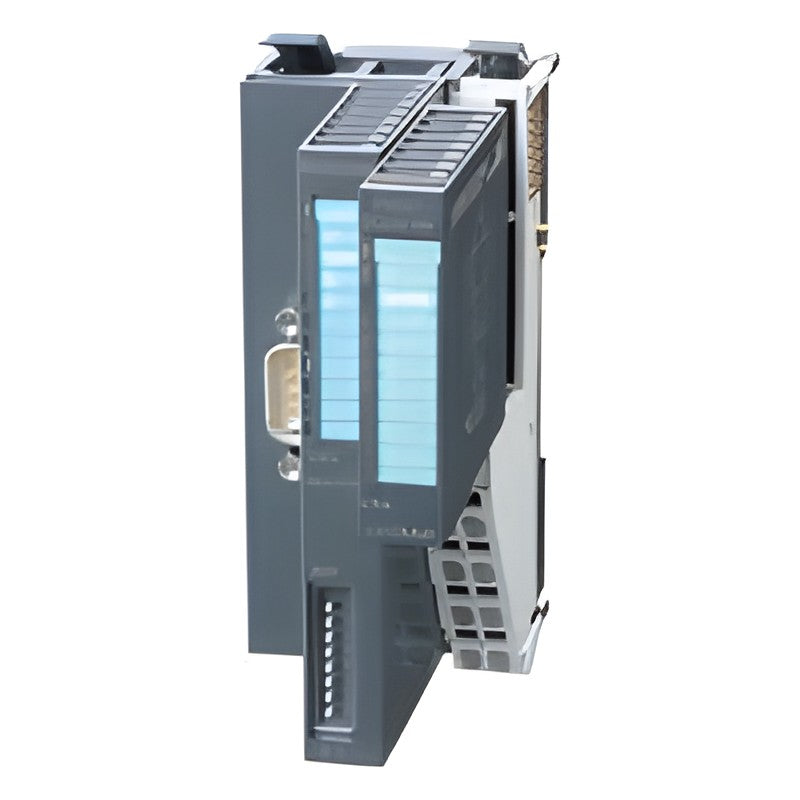

YASKAWA VIPA SLIO Fieldbus Interface Modules (IM 053)

YASKAWA VIPA SLIO Fieldbus Interface Modules (IM 053)

SLIO IM 053 fieldbus slave interface modules that connect a remote SLIO I/O station of up to 64 modules to the host network.

Key features

  • CANopen slave: 16 Rx / 16 Tx PDOs, 2 SDOs, PDO linking
  • DeviceNet slave (Group 2 only, poll only), 125/250/500 kbit/s
  • PROFIBUS-DP slave (DP-V0, DP-V1), 244 bytes in / 244 bytes out
  • EtherCAT slave with RJ45 100BaseTX and Modbus/TCP slave with adjustable I/O scan (0.5...4 ms)
  • PROFINET-IO slave at 100 Mbit/s
  • Up to 64 SLIO modules per interface module

Specifications

Brand YASKAWA VIPA
System SLIO
Max. modules 64
Mounting 35 mm profile rail
Operating temperature 0 to 60 °C
Storage temperature -25 to 70 °C
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 56-59
053-1CA00 Type: IM 053CAN | Fieldbus: CANopen slave | Feature: 16 Rx / 16 Tx PDOs, 2 SDOs
053-1DN00 Type: IM 053DN | Fieldbus: DeviceNet slave | Feature: 125/250/500 kbit/s
053-1DP00 Type: IM 053DP | Fieldbus: PROFIBUS-DP slave | Feature: DP-V0/DP-V1, 244 B in/out
053-1EC00 Type: IM 053EC | Fieldbus: EtherCAT slave | Feature: RJ45, 100BaseTX
053-1MT00 Type: IM 053MT | Fieldbus: Modbus/TCP slave | Feature: I/O scan cycle 0.5...4 ms
053-1PN00 Type: IM 053PN | Fieldbus: PROFINET-IO slave | Feature: 100 Mbit/s
PLC Communication ModulesYASKAWA
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA VIPA SLIO Fieldbus Interface Modules (IM 053)

Brand YASKAWA·PLC Communication Modules

Available part numbers (6)

053-1CA00, 053-1DN00, 053-1DP00, 053-1EC00, 053-1MT00, 053-1PN00

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
053-1CA00Type: IM 053CAN | Fieldbus: CANopen slave | Feature: 16 Rx / 16 Tx PDOs, 2 SDOs
053-1DN00Type: IM 053DN | Fieldbus: DeviceNet slave | Feature: 125/250/500 kbit/s
053-1DP00Type: IM 053DP | Fieldbus: PROFIBUS-DP slave | Feature: DP-V0/DP-V1, 244 B in/out
053-1EC00Type: IM 053EC | Fieldbus: EtherCAT slave | Feature: RJ45, 100BaseTX
053-1MT00Type: IM 053MT | Fieldbus: Modbus/TCP slave | Feature: I/O scan cycle 0.5...4 ms
053-1PN00Type: IM 053PN | Fieldbus: PROFINET-IO slave | Feature: 100 Mbit/s
