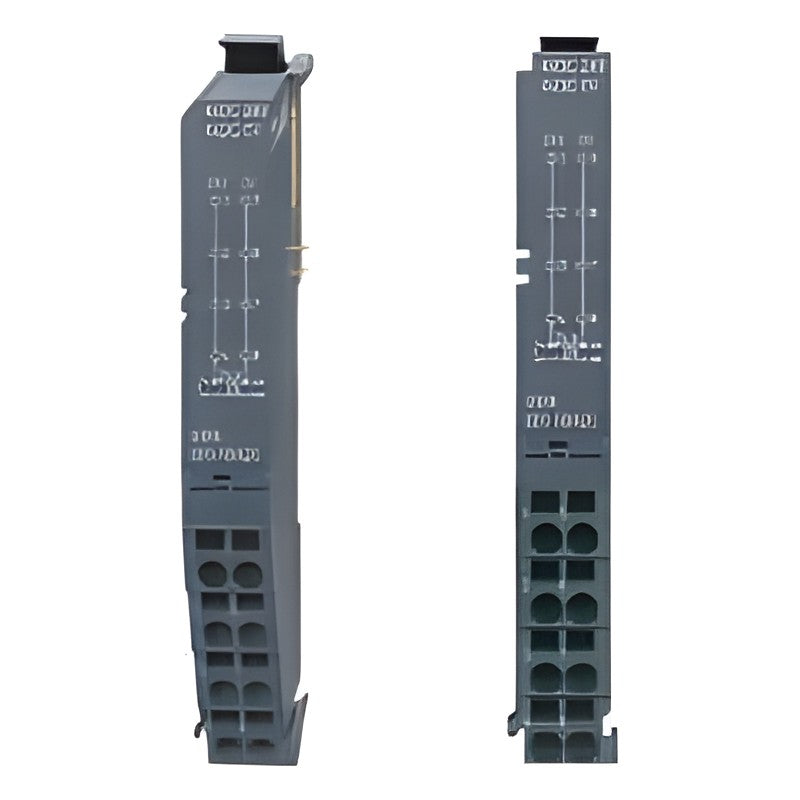

YASKAWA VIPA SLIO Power & Clamp Modules (PM 007 / CM 001)

YASKAWA VIPA SLIO Power & Clamp Modules (PM 007 / CM 001)

SLIO PM 007 power modules and CM 001 potential-distribution clamp modules that supply and distribute DC 24 V within a SLIO station.

Key features

  • PM 007 feeds DC 24 V to the field side of following electronic modules
  • Contrasting housing colour marks each separately powered voltage group
  • Reverse-polarity and overvoltage protection on PM 007
  • CM 001 passive clamp modules distribute DC 24 V / 0 V to sensors and switches
  • Maintenance-free cage-clamp wiring, max. 10 A per terminal

Specifications

Brand YASKAWA VIPA
System SLIO
Rated voltage DC 24 V
Max. current 10 A
Mounting 35 mm profile rail
Operating temperature 0 to 60 °C
Storage temperature -25 to 70 °C
Certification UL508
Source YASKAWA VIPA PLC Catalog 2014 (Korean ed.), p. 7-8, 17-19
007-1AB00 Type: PM 007 | Function: Power module | Rating: DC 24 V, 10 A
007-1AB10 Type: PM 007 | Function: Power module + bus supply | Rating: DC 24 V 4 A; backplane 5 V 2 A
001-1BA00 Type: CM 001 | Function: Potential distribution module | Rating: 8 x DC 24 V clamps
001-1BA10 Type: CM 001 | Function: Potential distribution module | Rating: 8 x DC 0 V clamps
001-1BA20 Type: CM 001 | Function: Potential distribution module | Rating: 4 x DC 24 V, 4 x DC 0 V clamps
PLC AccessoriesYASKAWA
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YASKAWA VIPA SLIO Power & Clamp Modules (PM 007 / CM 001)

Brand YASKAWA·PLC Accessories

Available part numbers (5)

007-1AB00, 007-1AB10, 001-1BA00, 001-1BA10, 001-1BA20

How to order

Send the YASKAWA part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
007-1AB00Type: PM 007 | Function: Power module | Rating: DC 24 V, 10 A
007-1AB10Type: PM 007 | Function: Power module + bus supply | Rating: DC 24 V 4 A; backplane 5 V 2 A
001-1BA00Type: CM 001 | Function: Potential distribution module | Rating: 8 x DC 24 V clamps
001-1BA10Type: CM 001 | Function: Potential distribution module | Rating: 8 x DC 0 V clamps
001-1BA20Type: CM 001 | Function: Potential distribution module | Rating: 4 x DC 24 V, 4 x DC 0 V clamps
