• YG-1 D2201130 Drill Cobalt Taper Drill
1 1

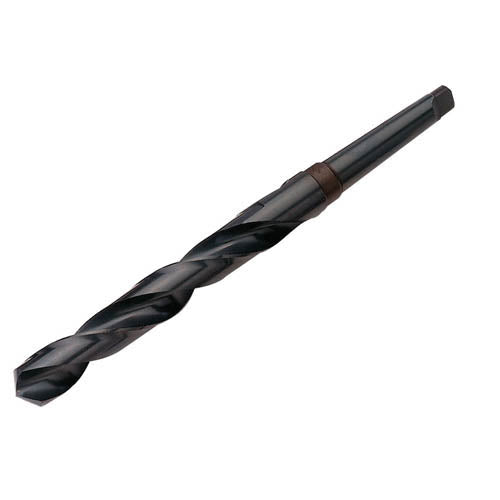

YG-1 D2201130 Drill Cobalt Taper Drill

YG-1 D2201130 Drill Cobalt Taper Drill

Cobalt Taper Drill from YG-1, sourced from Korea.

300-9118 MPN: D2201130 | 13.0MM (D2201130) | Spec: 13.0 | Flute Length: 115 | Overall Length: 198 | Type: MT.1
300-9127 MPN: D2201135 | 13.5MM (D2201135) | Spec: 13.5 | Flute Length: 118 | Overall Length: 202 | Type: MT.1
300-9136 MPN: D2201140 | 14.0MM (D2201140) | Spec: 14.0 | Flute Length: 122 | Overall Length: 205 | Type: MT.1
300-9145 MPN: D2201145 | 14.5MM (D2201145) | Spec: 14.5 | Flute Length: 122 | Overall Length: 222 | Type: MT.2
300-9154 MPN: D2201150 | 15.0MM (D2201150) | Spec: 15.0 | Flute Length: 125 | Overall Length: 225 | Type: MT.2
300-9163 MPN: D2201155 | 15.5MM (D2201155) | Spec: 15.5 | Flute Length: 128 | Overall Length: 228 | Type: MT.2
300-9172 MPN: D2201160 | 16.0MM (D2201160) | Spec: 16.0 | Flute Length: 130 | Overall Length: 230 | Type: MT.2
300-9181 MPN: D2201165 | 16.5MM (D2201165) | Spec: 16.5 | Flute Length: 132 | Overall Length: 232 | Type: MT.2
300-9190 MPN: D2201170 | 17.0MM (D2201170) | Spec: 17.0 | Flute Length: 135 | Overall Length: 235 | Type: MT.2
300-9206 MPN: D2201175 | 17.5MM (D2201175) | Spec: 17.5 | Flute Length: 140 | Overall Length: 240 | Type: MT.2
300-9215 MPN: D2201180 | 18.0MM (D2201180) | Spec: 18.0 | Flute Length: 140 | Overall Length: 240 | Type: MT.2
300-9224 MPN: D2201185 | 18.5MM (D2201185) | Spec: 18.5 | Flute Length: 145 | Overall Length: 245 | Type: MT.2
300-9233 MPN: D2201190 | 19.0MM (D2201190) | Spec: 19.0 | Flute Length: 145 | Overall Length: 245 | Type: MT.2
300-9242 MPN: D2201195 | 19.5MM (D2201195) | Spec: 19.5 | Flute Length: 150 | Overall Length: 250 | Type: MT.2
300-9251 MPN: D2201200 | 20.0MM (D2201200) | Spec: 20.0 | Flute Length: 150 | Overall Length: 250 | Type: MT.2
300-9260 MPN: D2201205 | 20.5MM (D2201205) | Spec: 20.5 | Flute Length: 155 | Overall Length: 255 | Type: MT.2
300-9279 MPN: D2201210 | 21.0MM (D2201210) | Spec: 21.0 | Flute Length: 155 | Overall Length: 255 | Type: MT.2
300-9288 MPN: D2201215 | 21.5MM (D2201215) | Spec: 21.5 | Flute Length: 160 | Overall Length: 260 | Type: MT.2
300-9297 MPN: D2201220 | 22.0MM (D2201220) | Spec: 22.0 | Flute Length: 160 | Overall Length: 260 | Type: MT.2
300-9303 MPN: D2201225 | 22.5MM (D2201225) | Spec: 22.5 | Flute Length: 165 | Overall Length: 265 | Type: MT.2
300-9312 MPN: D2201230 | 23.0MM (D2201230) | Spec: 23.0 | Flute Length: 165 | Overall Length: 265 | Type: MT.2
300-9321 MPN: D2201235 | 23.5MM (D2201235) | Spec: MT.3 23.5 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9330 MPN: D2201240 | 24.0MM (D2201240) | Spec: 24.0 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9349 MPN: D2201245 | 24.5MM (D2201245) | Spec: 24.5 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9358 MPN: D2201250 | 25.0MM (D2201250) | Spec: 25.0 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9367 MPN: D2201255 | 25.5MM (D2201255) | Spec: 25.5 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9376 MPN: D2201260 | 26.0MM (D2201260) | Spec: 26.0 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9385 MPN: D2201265 | 26.5MM (D2201265) | Spec: 26.5 | Flute Length: 170 | Overall Length: 290 | Type: MT.3
300-9394 MPN: D2201270 | 27.0MM (D2201270) | Spec: 27.0 | Flute Length: 170 | Overall Length: 290 | Type: MT.3
300-9400 MPN: D2201275 | 27.5MM (D2201275) | Spec: 27.5 | Flute Length: 175 | Overall Length: 295 | Type: MT.3
300-9419 MPN: D2201280 | 28.0MM (D2201280) | Spec: 28.0 | Flute Length: 175 | Overall Length: 295 | Type: MT.3
300-9428 MPN: D2201285 | 28.5MM (D2201285) | Spec: MT.3 28.5 | Flute Length: 180 | Overall Length: 300 | Type: MT.3
300-9437 MPN: D2201290 | 29.0MM (D2201290) | Spec: 29.0 | Flute Length: 180 | Overall Length: 300 | Type: MT.3
300-9446 MPN: D2201295 | 29.5MM (D2201295) | Spec: 29.5 | Flute Length: 185 | Overall Length: 305 | Type: MT.3
300-9455 MPN: D2201300 | 30.0MM (D2201300) | Spec: 30.0 | Flute Length: 185 | Overall Length: 305 | Type: MT.3
Drill BitsYG-1
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 D2201130 Drill Cobalt Taper Drill

Brand YG-1·Drill Bits

Available part numbers (35)

300-9118, 300-9127, 300-9136, 300-9145, 300-9154, 300-9163, 300-9172, 300-9181, 300-9190, 300-9206 + 25 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
300-9118MPN: D2201130 | 13.0MM (D2201130) | Spec: 13.0 | Flute Length: 115 | Overall Length: 198 | Type: MT.1
300-9127MPN: D2201135 | 13.5MM (D2201135) | Spec: 13.5 | Flute Length: 118 | Overall Length: 202 | Type: MT.1
300-9136MPN: D2201140 | 14.0MM (D2201140) | Spec: 14.0 | Flute Length: 122 | Overall Length: 205 | Type: MT.1
300-9145MPN: D2201145 | 14.5MM (D2201145) | Spec: 14.5 | Flute Length: 122 | Overall Length: 222 | Type: MT.2
300-9154MPN: D2201150 | 15.0MM (D2201150) | Spec: 15.0 | Flute Length: 125 | Overall Length: 225 | Type: MT.2
300-9163MPN: D2201155 | 15.5MM (D2201155) | Spec: 15.5 | Flute Length: 128 | Overall Length: 228 | Type: MT.2
300-9172MPN: D2201160 | 16.0MM (D2201160) | Spec: 16.0 | Flute Length: 130 | Overall Length: 230 | Type: MT.2
300-9181MPN: D2201165 | 16.5MM (D2201165) | Spec: 16.5 | Flute Length: 132 | Overall Length: 232 | Type: MT.2
300-9190MPN: D2201170 | 17.0MM (D2201170) | Spec: 17.0 | Flute Length: 135 | Overall Length: 235 | Type: MT.2
300-9206MPN: D2201175 | 17.5MM (D2201175) | Spec: 17.5 | Flute Length: 140 | Overall Length: 240 | Type: MT.2
300-9215MPN: D2201180 | 18.0MM (D2201180) | Spec: 18.0 | Flute Length: 140 | Overall Length: 240 | Type: MT.2
300-9224MPN: D2201185 | 18.5MM (D2201185) | Spec: 18.5 | Flute Length: 145 | Overall Length: 245 | Type: MT.2
300-9233MPN: D2201190 | 19.0MM (D2201190) | Spec: 19.0 | Flute Length: 145 | Overall Length: 245 | Type: MT.2
300-9242MPN: D2201195 | 19.5MM (D2201195) | Spec: 19.5 | Flute Length: 150 | Overall Length: 250 | Type: MT.2
300-9251MPN: D2201200 | 20.0MM (D2201200) | Spec: 20.0 | Flute Length: 150 | Overall Length: 250 | Type: MT.2
300-9260MPN: D2201205 | 20.5MM (D2201205) | Spec: 20.5 | Flute Length: 155 | Overall Length: 255 | Type: MT.2
300-9279MPN: D2201210 | 21.0MM (D2201210) | Spec: 21.0 | Flute Length: 155 | Overall Length: 255 | Type: MT.2
300-9288MPN: D2201215 | 21.5MM (D2201215) | Spec: 21.5 | Flute Length: 160 | Overall Length: 260 | Type: MT.2
300-9297MPN: D2201220 | 22.0MM (D2201220) | Spec: 22.0 | Flute Length: 160 | Overall Length: 260 | Type: MT.2
300-9303MPN: D2201225 | 22.5MM (D2201225) | Spec: 22.5 | Flute Length: 165 | Overall Length: 265 | Type: MT.2
300-9312MPN: D2201230 | 23.0MM (D2201230) | Spec: 23.0 | Flute Length: 165 | Overall Length: 265 | Type: MT.2
300-9321MPN: D2201235 | 23.5MM (D2201235) | Spec: MT.3 23.5 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9330MPN: D2201240 | 24.0MM (D2201240) | Spec: 24.0 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9349MPN: D2201245 | 24.5MM (D2201245) | Spec: 24.5 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9358MPN: D2201250 | 25.0MM (D2201250) | Spec: 25.0 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9367MPN: D2201255 | 25.5MM (D2201255) | Spec: 25.5 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9376MPN: D2201260 | 26.0MM (D2201260) | Spec: 26.0 | Flute Length: 165 | Overall Length: 285 | Type: MT.3
300-9385MPN: D2201265 | 26.5MM (D2201265) | Spec: 26.5 | Flute Length: 170 | Overall Length: 290 | Type: MT.3
300-9394MPN: D2201270 | 27.0MM (D2201270) | Spec: 27.0 | Flute Length: 170 | Overall Length: 290 | Type: MT.3
300-9400MPN: D2201275 | 27.5MM (D2201275) | Spec: 27.5 | Flute Length: 175 | Overall Length: 295 | Type: MT.3
300-9419MPN: D2201280 | 28.0MM (D2201280) | Spec: 28.0 | Flute Length: 175 | Overall Length: 295 | Type: MT.3
300-9428MPN: D2201285 | 28.5MM (D2201285) | Spec: MT.3 28.5 | Flute Length: 180 | Overall Length: 300 | Type: MT.3
300-9437MPN: D2201290 | 29.0MM (D2201290) | Spec: 29.0 | Flute Length: 180 | Overall Length: 300 | Type: MT.3
300-9446MPN: D2201295 | 29.5MM (D2201295) | Spec: 29.5 | Flute Length: 185 | Overall Length: 305 | Type: MT.3
300-9455MPN: D2201300 | 30.0MM (D2201300) | Spec: 30.0 | Flute Length: 185 | Overall Length: 305 | Type: MT.3
