• YG-1 D2201310 Drill Cobalt Taper Drill
1 1

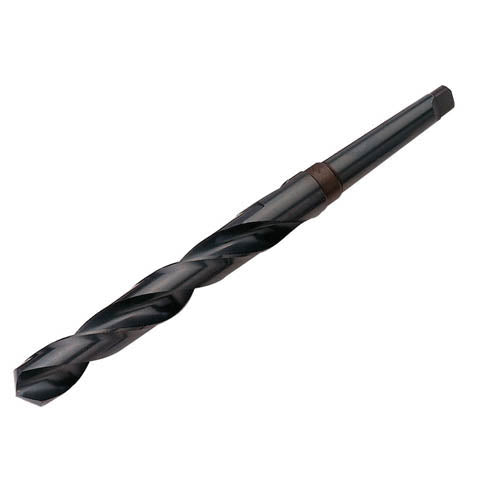

YG-1 D2201310 Drill Cobalt Taper Drill

YG-1 D2201310 Drill Cobalt Taper Drill

Cobalt Taper Drill from YG-1, sourced from Korea.

300-9473 MPN: D2201310 | 31.0MM (D2201310) | Spec: 31.0 | Flute Length: 190 | Overall Length: 310 | Type: MT.3
300-9491 MPN: D2201320 | 32.0MM (D2201320) | Spec: 32.0 | Flute Length: 195 | Overall Length: 315 | Type: MT.3
300-9516 MPN: D2201330 | 33.0MM (D2201330) | Spec: 33.0 | Flute Length: 200 | Overall Length: 345 | Type: MT.4
300-9525 MPN: D2201340 | 34.0MM (D2201340) | Spec: 34.0 | Flute Length: 205 | Overall Length: 350 | Type: MT.4
300-9534 MPN: D2201350 | 35.0MM (D2201350) | Spec: 35.0 | Flute Length: 205 | Overall Length: 350 | Type: MT.4
300-9543 MPN: D2201360 | 36.0MM (D2201360) | Spec: 36.0 | Flute Length: 210 | Overall Length: 355 | Type: MT.4
300-9561 MPN: D2201380 | 38.0MM (D2201380) | Spec: 38.0 | Flute Length: 215 | Overall Length: 360 | Type: MT.4
300-9570 MPN: D2201390 | 39.0MM (D2201390) | Spec: 39.0 | Flute Length: 215 | Overall Length: 360 | Type: MT.4
300-9589 MPN: D2201400 | 40.0MM (D2201400) | Spec: 40.0 | Flute Length: 220 | Overall Length: 365 | Type: MT.4
300-9604 MPN: D2201420 | 42.0MM (D2201420) | Spec: 42.0 | Flute Length: 225 | Overall Length: 370 | Type: MT.4
300-9613 MPN: D2201430 | 43.0MM (D2201430) | Spec: 43.0 | Flute Length: 225 | Overall Length: 370 | Type: MT.4
300-9631 MPN: D2201450 | 45.0MM (D2201450) | Spec: 45.0 | Flute Length: 230 | Overall Length: 375 | Type: MT.4
300-9640 MPN: D2201460 | 46.0MM (D2201460) | Spec: 46.0 | Flute Length: 235 | Overall Length: 380 | Type: MT.4
300-9686 MPN: D2201500 | 50.0MM (D2201500) | Spec: 50.0 | Flute Length: 245 | Overall Length: 390 | Type: MT.4
Drill BitsYG-1
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 D2201310 Drill Cobalt Taper Drill

Brand YG-1·Drill Bits

Available part numbers (14)

300-9473, 300-9491, 300-9516, 300-9525, 300-9534, 300-9543, 300-9561, 300-9570, 300-9589, 300-9604 + 4 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
300-9473MPN: D2201310 | 31.0MM (D2201310) | Spec: 31.0 | Flute Length: 190 | Overall Length: 310 | Type: MT.3
300-9491MPN: D2201320 | 32.0MM (D2201320) | Spec: 32.0 | Flute Length: 195 | Overall Length: 315 | Type: MT.3
300-9516MPN: D2201330 | 33.0MM (D2201330) | Spec: 33.0 | Flute Length: 200 | Overall Length: 345 | Type: MT.4
300-9525MPN: D2201340 | 34.0MM (D2201340) | Spec: 34.0 | Flute Length: 205 | Overall Length: 350 | Type: MT.4
300-9534MPN: D2201350 | 35.0MM (D2201350) | Spec: 35.0 | Flute Length: 205 | Overall Length: 350 | Type: MT.4
300-9543MPN: D2201360 | 36.0MM (D2201360) | Spec: 36.0 | Flute Length: 210 | Overall Length: 355 | Type: MT.4
300-9561MPN: D2201380 | 38.0MM (D2201380) | Spec: 38.0 | Flute Length: 215 | Overall Length: 360 | Type: MT.4
300-9570MPN: D2201390 | 39.0MM (D2201390) | Spec: 39.0 | Flute Length: 215 | Overall Length: 360 | Type: MT.4
300-9589MPN: D2201400 | 40.0MM (D2201400) | Spec: 40.0 | Flute Length: 220 | Overall Length: 365 | Type: MT.4
300-9604MPN: D2201420 | 42.0MM (D2201420) | Spec: 42.0 | Flute Length: 225 | Overall Length: 370 | Type: MT.4
300-9613MPN: D2201430 | 43.0MM (D2201430) | Spec: 43.0 | Flute Length: 225 | Overall Length: 370 | Type: MT.4
300-9631MPN: D2201450 | 45.0MM (D2201450) | Spec: 45.0 | Flute Length: 230 | Overall Length: 375 | Type: MT.4
300-9640MPN: D2201460 | 46.0MM (D2201460) | Spec: 46.0 | Flute Length: 235 | Overall Length: 380 | Type: MT.4
300-9686MPN: D2201500 | 50.0MM (D2201500) | Spec: 50.0 | Flute Length: 245 | Overall Length: 390 | Type: MT.4
