• YG-1 E2759220K End Mill HSS Long Lapping End Mill
1 1

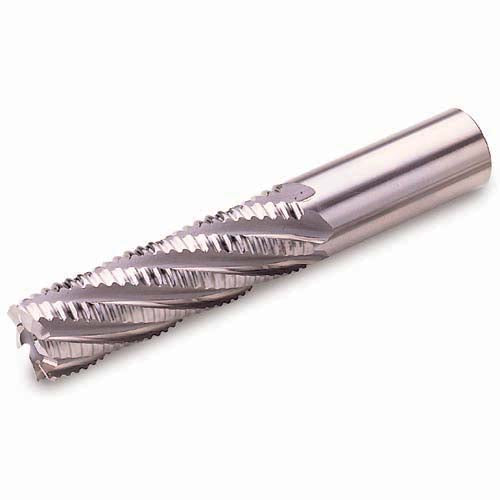

YG-1 E2759220K End Mill HSS Long Lapping End Mill

YG-1 E2759220K End Mill HSS Long Lapping End Mill

HSS Long Lapping End Mill from YG-1, sourced from Korea.

301-9425 MPN: E2759220K | 22*20*75*141MM(E2759220K) | Spec: 22.0 | Flute Length: 75 | Overall Length: 141 | Product Name: General | Shank Diameter: 20
301-9443 MPN: E2759250K | 25*25*90*166MM(E2759250K) | Spec: 25.0 | Flute Length: 90 | Overall Length: 166 | Product Name: Standard | Shank d: 25
301-9452 MPN: E2759280K | 28*25*90*166MM(E2759280K) | Spec: 28.0 | Flute Length: 90 | Overall Length: 166 | Product Name: Standard | Shank Diameter: 25
301-9461 MPN: E2759300K | 30*25*90*166MM(E2759300K) | Spec: 30.0 | Flute Length: 90 | Overall Length: 166 | Product Name: General
301-9470 MPN: E2759320K | 32*32*106*186MM(E2759320K) | Spec: 32.0 | Flute Length: 106 | Overall Length: 186 | Product Name: General Purpose | Shank Diameter: 32
301-9489 MPN: E2759350K | 35*32*106*186MM(E2759350K) | Spec: 35.0 | Flute Length: 106 | Overall Length: 186 | Product Name: Standard | Shank Diameter: 32
301-9498 MPN: E2759360K | 36*32*106*186MM(E2759360K) | Spec: 36.0 | Flute Length: 106 | Overall Length: 186 | Product Name: General | Shank Diameter: 32
301-9504 MPN: E2759400K | 40*32*125*205MM(E2759400K) | Spec: 40.0 | Flute Length: 125 | Overall Length: 205 | Product Name: Standard | Shank d: 32
301-9513 MPN: E2759450K | 45*42*125*227MM(E2759450K) | Spec: 45.0 | Flute Length: 125 | Overall Length: 227 | Product Name: General | Shank d: 42
301-9522 MPN: E2759500K | 50*42*150*252MM(E2759500K) | Spec: 50.0 | Flute Length: 150 | Overall Length: 252 | Product Name: Standard | Shank Diameter: 42
End MillsYG-1
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 E2759220K End Mill HSS Long Lapping End Mill

Brand YG-1·End Mills

Available part numbers (10)

301-9425, 301-9443, 301-9452, 301-9461, 301-9470, 301-9489, 301-9498, 301-9504, 301-9513, 301-9522

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
301-9425MPN: E2759220K | 22*20*75*141MM(E2759220K) | Spec: 22.0 | Flute Length: 75 | Overall Length: 141 | Product Name: General | Shank Diameter: 20
301-9443MPN: E2759250K | 25*25*90*166MM(E2759250K) | Spec: 25.0 | Flute Length: 90 | Overall Length: 166 | Product Name: Standard | Shank d: 25
301-9452MPN: E2759280K | 28*25*90*166MM(E2759280K) | Spec: 28.0 | Flute Length: 90 | Overall Length: 166 | Product Name: Standard | Shank Diameter: 25
301-9461MPN: E2759300K | 30*25*90*166MM(E2759300K) | Spec: 30.0 | Flute Length: 90 | Overall Length: 166 | Product Name: General
301-9470MPN: E2759320K | 32*32*106*186MM(E2759320K) | Spec: 32.0 | Flute Length: 106 | Overall Length: 186 | Product Name: General Purpose | Shank Diameter: 32
301-9489MPN: E2759350K | 35*32*106*186MM(E2759350K) | Spec: 35.0 | Flute Length: 106 | Overall Length: 186 | Product Name: Standard | Shank Diameter: 32
301-9498MPN: E2759360K | 36*32*106*186MM(E2759360K) | Spec: 36.0 | Flute Length: 106 | Overall Length: 186 | Product Name: General | Shank Diameter: 32
301-9504MPN: E2759400K | 40*32*125*205MM(E2759400K) | Spec: 40.0 | Flute Length: 125 | Overall Length: 205 | Product Name: Standard | Shank d: 32
301-9513MPN: E2759450K | 45*42*125*227MM(E2759450K) | Spec: 45.0 | Flute Length: 125 | Overall Length: 227 | Product Name: General | Shank d: 42
301-9522MPN: E2759500K | 50*42*150*252MM(E2759500K) | Spec: 50.0 | Flute Length: 150 | Overall Length: 252 | Product Name: Standard | Shank Diameter: 42

Need a different model, or a part not listed here? Send us your parts list →
