• YG-1 SEM81712055 Carbide End Mill Carbide Long End Mill (X-POWER S)
1 1

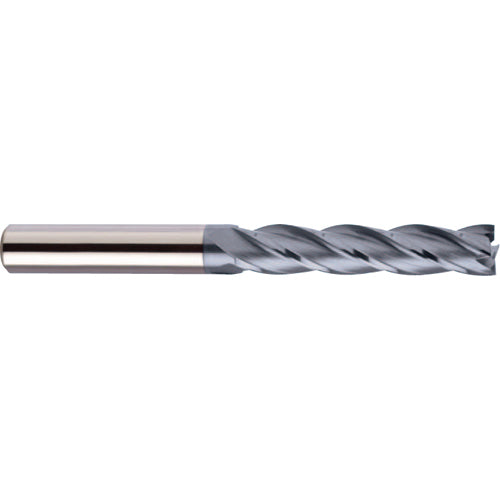

YG-1 SEM81712055 Carbide End Mill Carbide Long End Mill (X-POWER S)

YG-1 SEM81712055 Carbide End Mill Carbide Long End Mill (X-POWER S)

Carbide Long End Mill (X-POWER S) from YG-1, sourced from Korea.

304-4661 MPN: SEM81712055 | 4F-12*12*55*110MM(SEM81712055) | Spec: 12.0 | Flute Length: 55 | Overall Length: 110 | Shank Diameter: 12
304-4670 MPN: SEM81716050 | 4F-16*16*50*110MM(SEM81716050) | Spec: 16.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 16
304-6058 MPN: SEM81712045 | 4F-12*12*45*100MM(SEM81712045) | Spec: 12.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 12
304-7686 MPN: SEM81720050 | 4F-20*20*50*110MM(SEM81720050) | Spec: 20.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 20
304-7844 MPN: SEM81712050 | 4F-12*12*50*110MM(SEM81712050) | Spec: 12.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 12
304-8117 MPN: SEM81712040 | 4F-12*12*40*90MM(SEM81712040) | Spec: 12.0 | Flute Length: 40 | Overall Length: 90 | Shank Diameter: 12
304-8357 MPN: SEM81714050 | 4F-14*16*50*110MM(SEM81714050) | Spec: 14.0 | Flute Length: 50 | Overall Length: 110 | Shank d: 16
305-4932 MPN: SEM81712060 | 4F-12*12*60*120MM(SEM81712060) | Spec: 12.0 | Flute Length: 60 | Overall Length: 120 | Shank d: 12
305-4941 MPN: SEM81712065 | 4F-12*12*65*150MM(SEM81712065) | Spec: 12.0 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 12
305-4950 MPN: SEM81714060 | 4F-14*16*60*150MM(SEM81714060) | Spec: 14.0 | Flute Length: 60 | Overall Length: 150 | Shank Diameter: 16
305-4969 MPN: SEM81716060 | 4F-16*16*60*120MM(SEM81716060) | Spec: 16.0 | Flute Length: 60 | Overall Length: 120 | Shank d: 16
305-4978 MPN: SEM81716070 | 4F-16*16*70*130MM(SEM81716070) | Spec: 16.0 | Flute Length: 70 | Overall Length: 130 | Shank D: 16
305-4987 MPN: SEM81716080 | 4F-16*16*80*150MM(SEM81716080) | Spec: 16.0 | Flute Length: 80 | Overall Length: 150 | Shank Diameter: 16
305-4996 MPN: SEM81716090 | 4F-16*16*90*150MM(SEM81716090) | Spec: 16.0 | Flute Length: 90 | Overall Length: 150 | Shank Diameter: 16
305-5001 MPN: SEM817160110 | 4F-16*16*110*200MM(SEM817160110) | Spec: 16.0 | Flute Length: 110 | Overall Length: 200 | Shank d: 16
305-5010 MPN: SEM817160120 | 4F-16*16*120*250MM(SEM817160120) | Spec: 16.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 16
305-5029 MPN: SEM81718050 | 4F-18*16*50*120MM(SEM81718050) | Spec: 18.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 16
305-5038 MPN: SEM81718070 | 4F-18*16*70*130MM(SEM81718070) | Spec: 18.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 16
305-5047 MPN: SEM817180100 | 4F-18*16*100*200MM(SEM817180100) | Spec: 18.0 | Flute Length: 100 | Overall Length: 200 | Shank Diameter: 16
305-5056 MPN: SEM81720060 | 4F-20*20*60*120MM(SEM81720060) | Spec: 20.0 | Flute Length: 60 | Overall Length: 120 | Shank Diameter: 20
305-5065 MPN: SEM81720070 | 4F-20*20*70*130MM(SEM81720070) | Spec: 20.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 20
305-5074 MPN: SEM81720080 | 4F-20*20*80*150MM(SEM81720080) | Spec: 20.0 | Flute Length: 80 | Overall Length: 150 | Shank Diameter: 20
305-5083 MPN: SEM81720090 | 4F-20*20*90*150MM(SEM81720090) | Spec: 20.0 | Flute Length: 90 | Overall Length: 150 | Shank Diameter: 20
305-5092 MPN: SEM817200110 | 4F-20*20*110*200MM(SEM817200110) | Spec: 20.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 20
305-5108 MPN: SEM817200120 | 4F-20*20*120*250MM(SEM817200120) | Spec: 20.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 20
305-5117 MPN: SEM81722075 | 4F-22*20*75*150MM(SEM81722075) | Spec: 22.0 | Flute Length: 75 | Overall Length: 150 | Shank Diameter: 20
305-5126 MPN: SEM817220110 | 4F-22*20*110*200MM(SEM817220110) | Spec: 22.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 20
305-5135 MPN: SEM81725070 | 4F-25*25*70*130MM(SEM81725070) | Spec: 25.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 25
305-5144 MPN: SEM81725090 | 4F-25*25*90*150MM(SEM81725090) | Spec: 25.0 | Flute Length: 90 | Overall Length: 150 | Shank d: 25
305-5153 MPN: SEM817250110 | 4F-25*25*110*200MM(SEM817250110) | Spec: 25.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 25
305-5162 MPN: SEM817250120 | 4F-25*25*120*250MM(SEM817250120) | Spec: 25.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 25
305-5199 MPN: SEM81712070 | 4F-12*12*70*200MM(SEM81712070) | Spec: 12.0 | Flute Length: 70 | Overall Length: 200 | Shank Diameter: 12
End MillsYG-1
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

YG-1 SEM81712055 Carbide End Mill Carbide Long End Mill (X-POWER S)

Brand YG-1·End Mills

Available part numbers (32)

304-4661, 304-4670, 304-6058, 304-7686, 304-7844, 304-8117, 304-8357, 305-4932, 305-4941, 305-4950 + 22 more — see full table ↓

How to order

Send the YG-1 part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
304-4661MPN: SEM81712055 | 4F-12*12*55*110MM(SEM81712055) | Spec: 12.0 | Flute Length: 55 | Overall Length: 110 | Shank Diameter: 12
304-4670MPN: SEM81716050 | 4F-16*16*50*110MM(SEM81716050) | Spec: 16.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 16
304-6058MPN: SEM81712045 | 4F-12*12*45*100MM(SEM81712045) | Spec: 12.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 12
304-7686MPN: SEM81720050 | 4F-20*20*50*110MM(SEM81720050) | Spec: 20.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 20
304-7844MPN: SEM81712050 | 4F-12*12*50*110MM(SEM81712050) | Spec: 12.0 | Flute Length: 50 | Overall Length: 110 | Shank Diameter: 12
304-8117MPN: SEM81712040 | 4F-12*12*40*90MM(SEM81712040) | Spec: 12.0 | Flute Length: 40 | Overall Length: 90 | Shank Diameter: 12
304-8357MPN: SEM81714050 | 4F-14*16*50*110MM(SEM81714050) | Spec: 14.0 | Flute Length: 50 | Overall Length: 110 | Shank d: 16
305-4932MPN: SEM81712060 | 4F-12*12*60*120MM(SEM81712060) | Spec: 12.0 | Flute Length: 60 | Overall Length: 120 | Shank d: 12
305-4941MPN: SEM81712065 | 4F-12*12*65*150MM(SEM81712065) | Spec: 12.0 | Flute Length: 65 | Overall Length: 150 | Shank Diameter: 12
305-4950MPN: SEM81714060 | 4F-14*16*60*150MM(SEM81714060) | Spec: 14.0 | Flute Length: 60 | Overall Length: 150 | Shank Diameter: 16
305-4969MPN: SEM81716060 | 4F-16*16*60*120MM(SEM81716060) | Spec: 16.0 | Flute Length: 60 | Overall Length: 120 | Shank d: 16
305-4978MPN: SEM81716070 | 4F-16*16*70*130MM(SEM81716070) | Spec: 16.0 | Flute Length: 70 | Overall Length: 130 | Shank D: 16
305-4987MPN: SEM81716080 | 4F-16*16*80*150MM(SEM81716080) | Spec: 16.0 | Flute Length: 80 | Overall Length: 150 | Shank Diameter: 16
305-4996MPN: SEM81716090 | 4F-16*16*90*150MM(SEM81716090) | Spec: 16.0 | Flute Length: 90 | Overall Length: 150 | Shank Diameter: 16
305-5001MPN: SEM817160110 | 4F-16*16*110*200MM(SEM817160110) | Spec: 16.0 | Flute Length: 110 | Overall Length: 200 | Shank d: 16
305-5010MPN: SEM817160120 | 4F-16*16*120*250MM(SEM817160120) | Spec: 16.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 16
305-5029MPN: SEM81718050 | 4F-18*16*50*120MM(SEM81718050) | Spec: 18.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 16
305-5038MPN: SEM81718070 | 4F-18*16*70*130MM(SEM81718070) | Spec: 18.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 16
305-5047MPN: SEM817180100 | 4F-18*16*100*200MM(SEM817180100) | Spec: 18.0 | Flute Length: 100 | Overall Length: 200 | Shank Diameter: 16
305-5056MPN: SEM81720060 | 4F-20*20*60*120MM(SEM81720060) | Spec: 20.0 | Flute Length: 60 | Overall Length: 120 | Shank Diameter: 20
305-5065MPN: SEM81720070 | 4F-20*20*70*130MM(SEM81720070) | Spec: 20.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 20
305-5074MPN: SEM81720080 | 4F-20*20*80*150MM(SEM81720080) | Spec: 20.0 | Flute Length: 80 | Overall Length: 150 | Shank Diameter: 20
305-5083MPN: SEM81720090 | 4F-20*20*90*150MM(SEM81720090) | Spec: 20.0 | Flute Length: 90 | Overall Length: 150 | Shank Diameter: 20
305-5092MPN: SEM817200110 | 4F-20*20*110*200MM(SEM817200110) | Spec: 20.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 20
305-5108MPN: SEM817200120 | 4F-20*20*120*250MM(SEM817200120) | Spec: 20.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 20
305-5117MPN: SEM81722075 | 4F-22*20*75*150MM(SEM81722075) | Spec: 22.0 | Flute Length: 75 | Overall Length: 150 | Shank Diameter: 20
305-5126MPN: SEM817220110 | 4F-22*20*110*200MM(SEM817220110) | Spec: 22.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 20
305-5135MPN: SEM81725070 | 4F-25*25*70*130MM(SEM81725070) | Spec: 25.0 | Flute Length: 70 | Overall Length: 130 | Shank Diameter: 25
305-5144MPN: SEM81725090 | 4F-25*25*90*150MM(SEM81725090) | Spec: 25.0 | Flute Length: 90 | Overall Length: 150 | Shank d: 25
305-5153MPN: SEM817250110 | 4F-25*25*110*200MM(SEM817250110) | Spec: 25.0 | Flute Length: 110 | Overall Length: 200 | Shank Diameter: 25
305-5162MPN: SEM817250120 | 4F-25*25*120*250MM(SEM817250120) | Spec: 25.0 | Flute Length: 120 | Overall Length: 250 | Shank Diameter: 25
305-5199MPN: SEM81712070 | 4F-12*12*70*200MM(SEM81712070) | Spec: 12.0 | Flute Length: 70 | Overall Length: 200 | Shank Diameter: 12

Need a different model, or a part not listed here? Send us your parts list →
